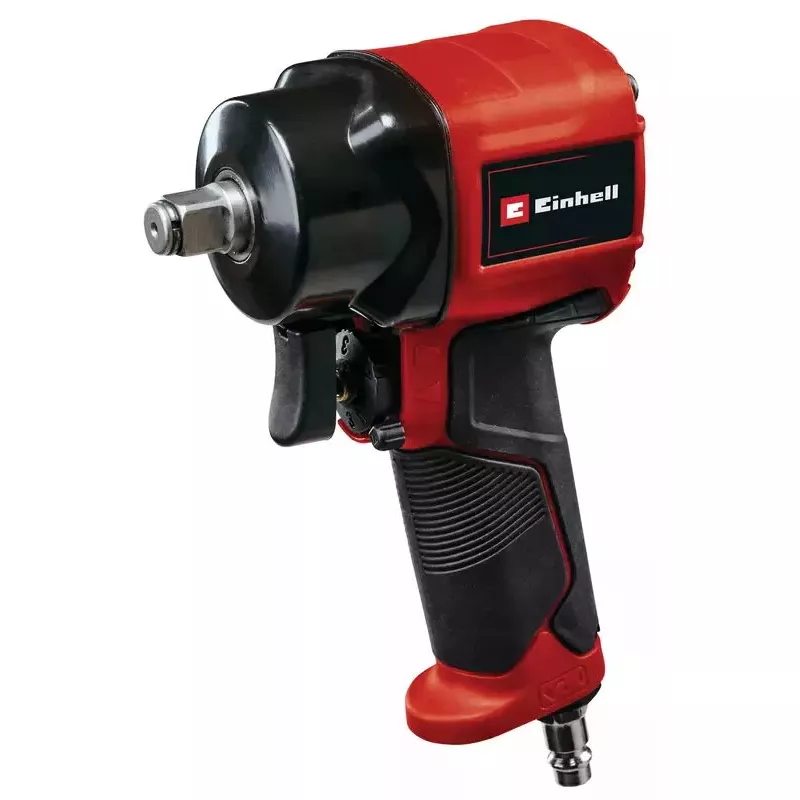

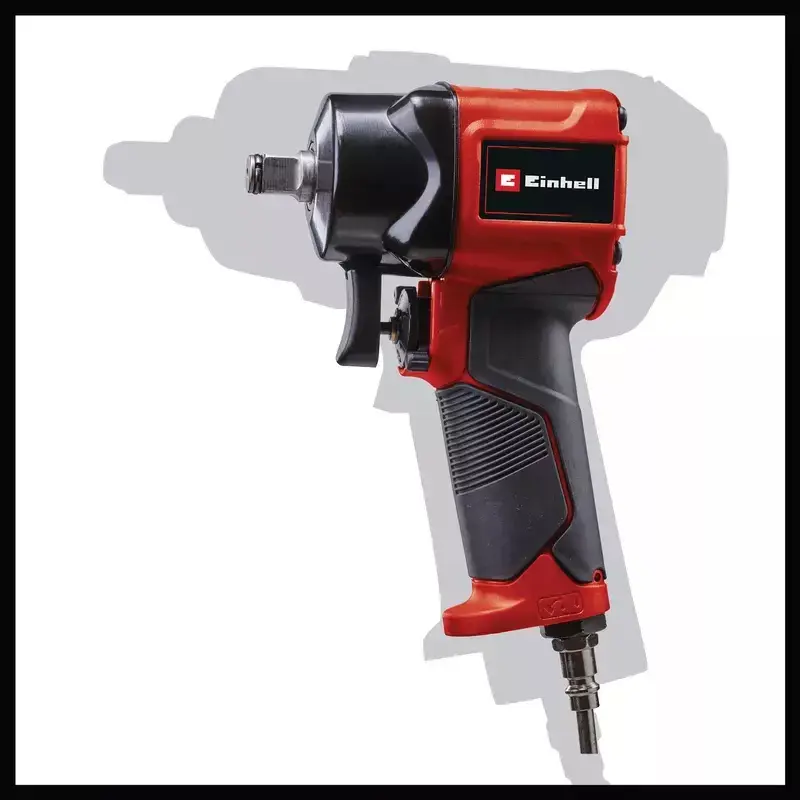

Air ratchet wrench Einhell TC-PW 610 9000 RPM 610 N⋅m Black Red

The Einhell pneumatic impact wrench TC-PW 610 Compact is a compact, compressor-powered tool designed for automotive and workshop use. It delivers up to 610 Nm of torque at a maximum working pressure of 8 bar and reaches an idle speed of up to 9,000 rpm. Weighing 1.14 kg and equipped with a 1/2" square drive, the TC-PW 610 is intended for tyre changes and other demanding fastening and loosening tasks where a lightweight, handy impact wrench is required.

Advantages

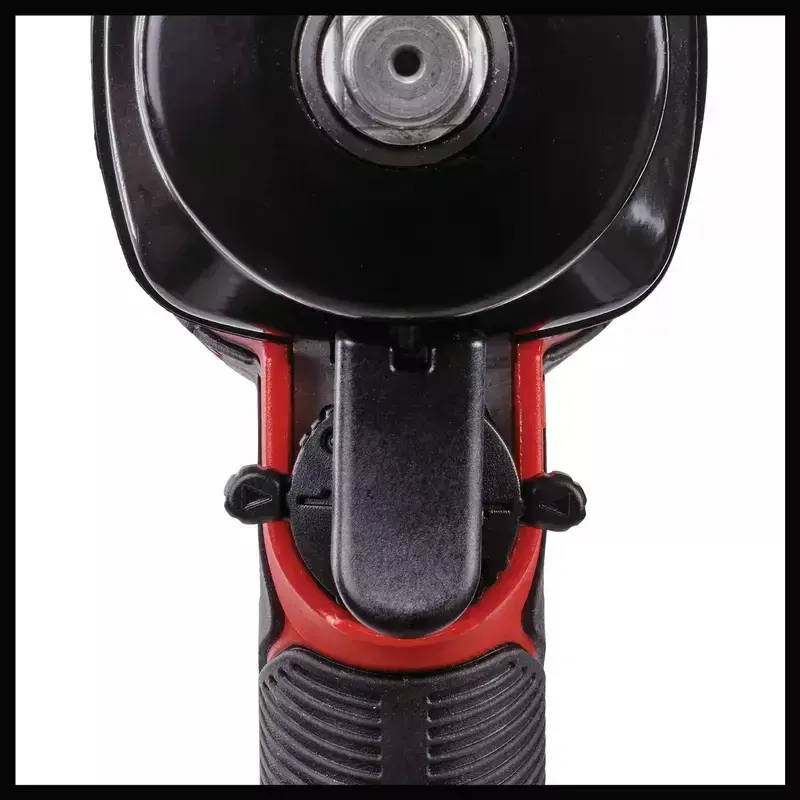

The tool combines high torque with a compact, lightweight design for comfortable handling in confined spaces. It features ergonomic left/right switching for one-handed operation, a non-slip rubberised handle for secure grip and selectable drive modes (one-stage anti-clockwise and three-stage clockwise) to adjust torque application. The package includes several accessories and a transport case for organised storage.

Suitable for

• Changing car tyres and wheel jobs
• Automotive workshop maintenance and repairs
• Fastening and loosening bolts and nuts in tight or hard-to-reach areas

Key specifications

• Maximum torque: 610 Nm
• Idle speed: up to 9,000 rpm
• Maximum working pressure: 8 bar
• Air consumption: 142 L/min

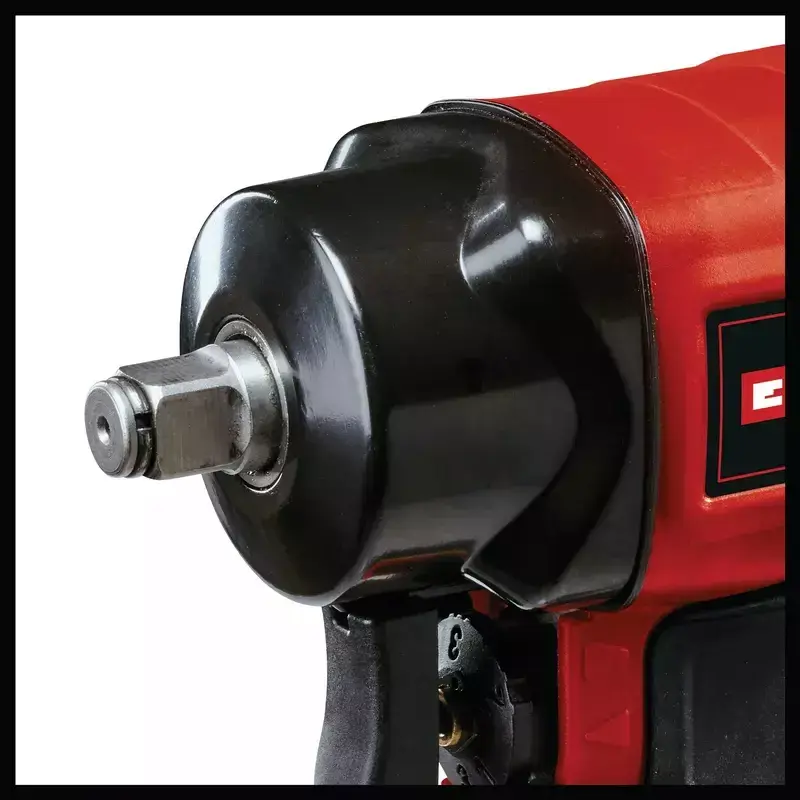

• Drive size: 1/2" square
• Weight: 1.14 kg
• Required inner hose diameter: min. 9 mm

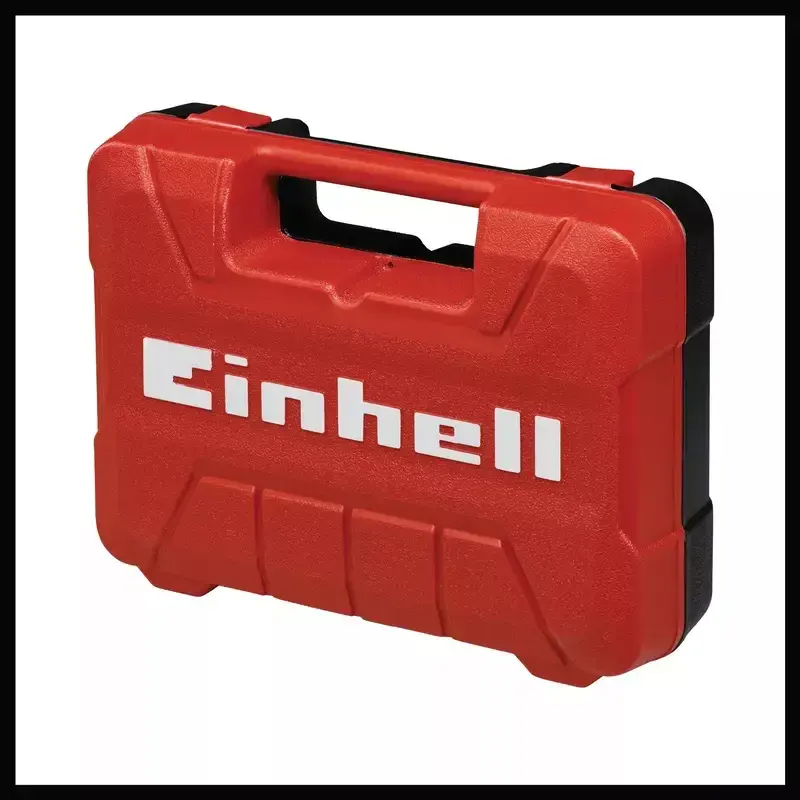

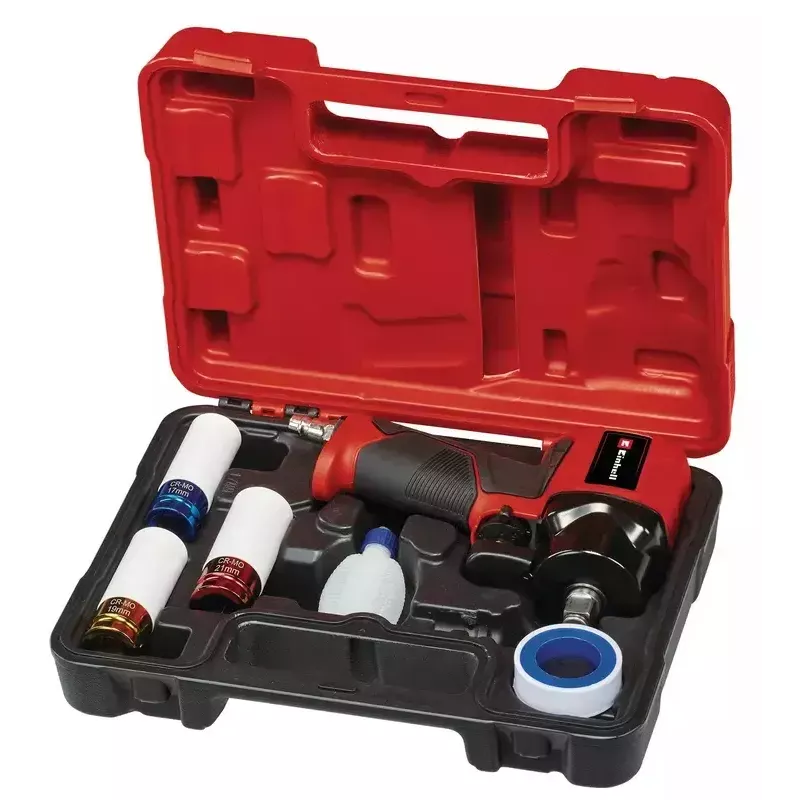

• Included accessories: 3 sockets with plastic sleeve (17 / 19 / 21 mm), 1 oil bottle, 1 plug nipple, 10 m thread sealing tape, transport and storage case
• Brand / MPN / EAN: EINHELL / 4138965 / 4006825660630

How to use

Connect the impact wrench to a suitable compressor using an air hose with an inner diameter of at least 9 mm and the supplied plug nipple. Set the compressor to a maximum working pressure of 8 bar. Select the direction and torque stage using the left/right switch: one-stage for anti-clockwise release or one of three clockwise stages for tightening. Fit the appropriate socket (17, 19 or 21 mm) onto the 1/2" square drive, hold the tool firmly by the rubberised handle and apply short bursts or continuous operation as needed. After use, depressurise and disconnect the air hose and store the tool and accessories in the supplied case.

Recommendations

Use appropriate personal protective equipment (eye and hearing protection). Do not exceed the specified maximum working pressure of 8 bar and ensure the air supply hose has an inner diameter of at least 9 mm. Use the correct socket size to avoid rounding fasteners and maintain the tool by adding a few drops of pneumatic tool oil into the air inlet before operation and regularly as described in the manufacturer instructions.
