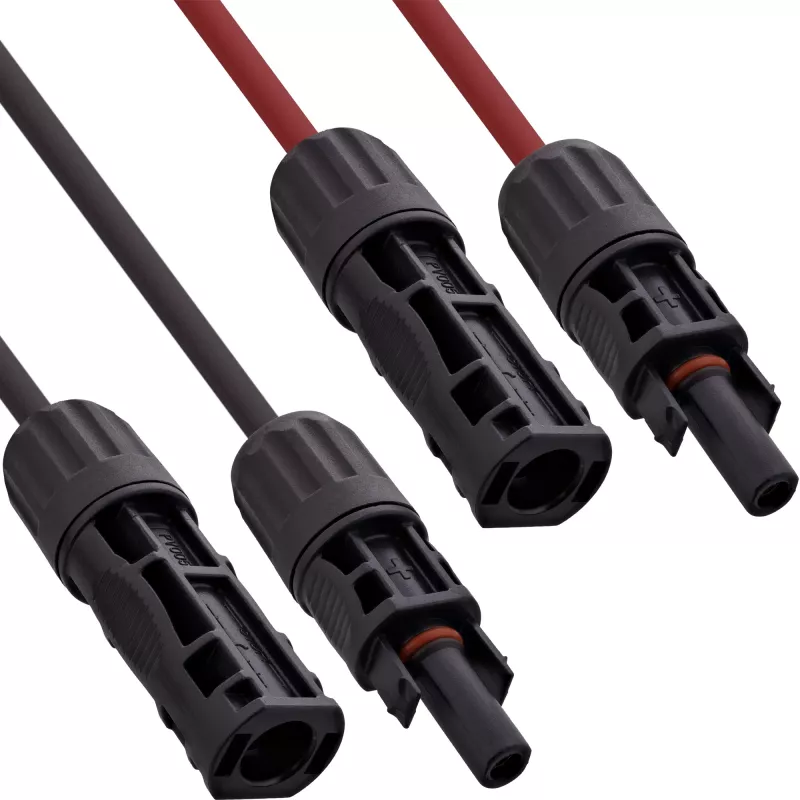

Solar cable extension set InLine 6 mm² black/red 0.3 m model 95633

InLine solar cable extension set with 6 mm² conductor cross-section and a length of 0.3 m, delivered in black and red for clear polarity identification. The set is intended for extending photovoltaic connections and for short interconnections within small solar installations. It is suitable for DC cable routing between solar modules, charge controllers and inverters where a compact, durable extension is required.

Advantages

The 6 mm² copper conductors provide low resistance for DC power transfer over short distances and the color-coded black and red insulation simplifies correct polarity matching during installation. The compact 0.3 m length supports tidy cable runs and reduces excess slack. The cable insulation is designed for outdoor and solar use, offering mechanical protection and resistance to environmental exposure in typical photovoltaic installations.

Suitable for

• Extending cable runs between adjacent PV modules
• Connecting modules to nearby charge controllers or combiner boxes
• Short DC connections in small rooftop or portable solar systems
• Replacing or adding short jumper leads in array layouts

Key specifications

• Conductor cross-section: 6 mm²
• Length: 0.3 m
• Colors: black and red for negative and positive polarity
• Insulation: UV-resistant jacket suitable for outdoor solar use
• Current carrying capability: suitable for typical small PV string currents (see system requirements)

How to use

Strip the insulation to the required length, taking care not to nick the conductor, and attach appropriate connectors or lugs compatible with the mating terminals on modules, controllers or inverters. Observe correct polarity by matching the red conductor to positive and the black conductor to negative connections. Secure cables with proper strain relief and routing to avoid mechanical stress and to maintain electrical safety. Follow the installation instructions and safety standards relevant to the photovoltaic system when integrating the extension set.

Recommendations

Use the extension set only for short DC runs in photovoltaic systems and ensure that conductor ampacity, voltage rating and connector compatibility match your system requirements. Avoid excessive bending near terminations and protect the cable from sharp edges and prolonged abrasion. For longer runs or higher current systems, select appropriately sized cables and components according to applicable electrical codes.
