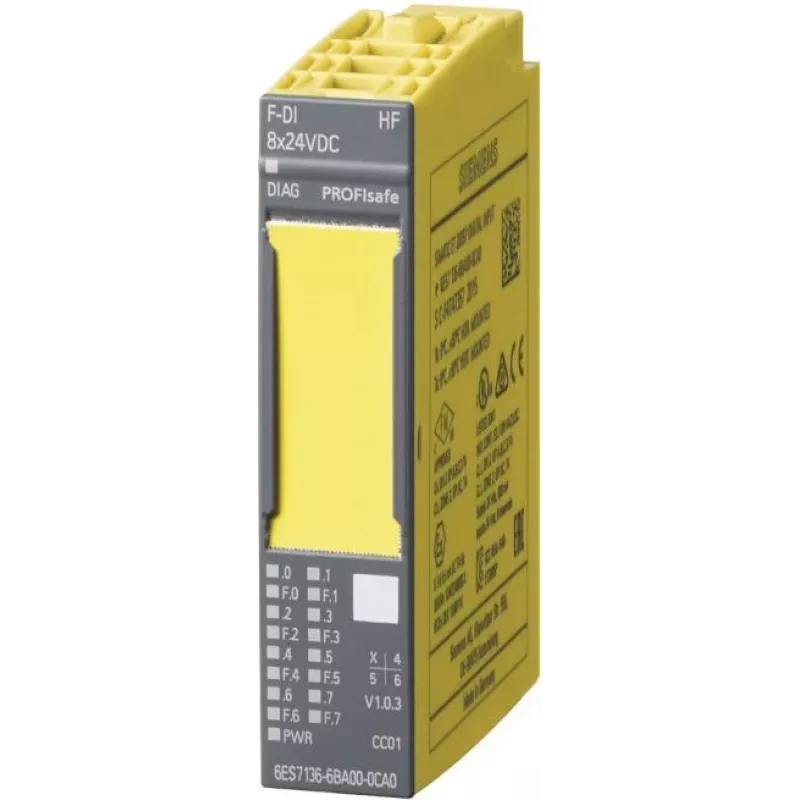

SIEMENS 6ES7136-6BA01-0CA0 SIMATIC DP Fail-Safe Digital Input Module for ET 200SP, 8 Inputs, 24 V DC, SIL 3, PL E, HF

The SIEMENS 6ES7136-6BA01-0CA0 is a fail-safe digital input module from the SIMATIC DP series, designed for the ET 200SP distributed I/O system. This high-feature (HF) module provides 8 fail-safe digital inputs with 24 V DC supply, supporting safety applications up to SIL 3 (IEC 61508) and PL E (ISO 13849) with Category 4. It features 1-wire connection technology, comprehensive diagnostics (short circuit, wire break, supply voltage monitoring), and parameterization via TIA Portal. The module is DIN rail mountable, has IP20 protection, and operates in a temperature range of 0 °C to 60 °C (horizontal) or 0 °C to 50 °C (vertical). It is certified with CE, UL, cULus, ATEX, FM, KC, RCM, and EAC.

Advantages

High safety integrity (SIL 3, PL E, Cat. 4) ensures reliable operation in critical applications. The HF version offers enhanced functionality and diagnostics. Easy integration into SIMATIC ET 200SP systems with TIA Portal parameterization. Compact design saves space on DIN rail.

Suitable for

• Industrial automation safety applications
• Machine safety (emergency stop, light curtains, safety gates)
• Process automation requiring fail-safe digital inputs
• Distributed I/O systems with ET 200SP

Key specifications

• Module type: Fail-safe digital input module
• Number of inputs: 8
• Input voltage: 24 V DC
• Connection technology: 1-wire
• Safety level: SIL 3, PL E, Category 4
• Hardware version: HF (High Feature)
• Current consumption (backplane bus): max. 30 mA
• Power loss: max. 1.5 W
• Diagnostics: short circuit, wire break, supply voltage monitoring
• Operating temperature: 0 °C to 60 °C (horizontal), 0 °C to 50 °C (vertical)
• Protection class: IP20
• Mounting: DIN rail
• Certifications: CE, UL, cULus, ATEX, FM, KC, RCM, EAC

Recommendations

For optimal performance, use this module with a compatible ET 200SP base unit and configure via TIA Portal. Ensure proper wiring and adhere to safety guidelines for SIL 3 applications.
