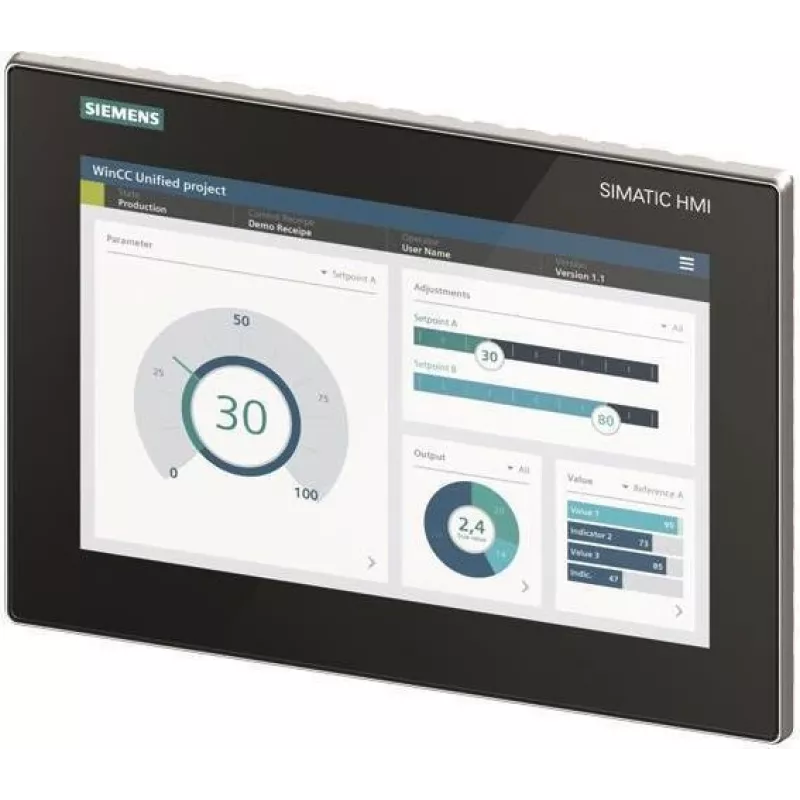

Siemens SIMATIC HMI MTP1200 Unified Comfort 12.1 inch Touch Panel 6AV2128-3MB06-0AX1

The Siemens SIMATIC HMI MTP1200 Unified Comfort is a high-performance human-machine interface designed for demanding industrial applications. With a 12.1-inch widescreen TFT display and capacitive multi-touch technology, it offers intuitive operation and clear visualization. Powered by an ARM Cortex-A53 processor and running the Siemens Unified Comfort OS, this panel provides seamless integration into automation systems via TIA Portal V16 or higher.

Advantages

Robust IP65 front protection, 16 million colors for detailed graphics, and dual PROFINET ports for reliable communication. The panel supports USB 3.0 and USB-C interfaces, ensuring flexible connectivity.

Suitable for

• Industrial HMI applications in manufacturing, process control, and machine building
• Use in harsh environments requiring IP65 front protection
• Integration with Siemens TIA Portal and WinCC Unified software

Key specifications

• Display: 12.1" TFT widescreen, 1280x800 pixels, 16M colors
• Touch: Capacitive multi-touch
• Processor: ARM Cortex-A53
• RAM: 4 GB, Storage: 16 GB eMMC
• Ethernet: 2 x PROFINET (RJ45)
• USB: 2 x USB 3.0, 1 x USB-C (service)
• Supply voltage: 24 V DC
• Protection: IP65 front, IP20 rear
• Mounting: Panel mount, cut-out 310x221 mm
• Operating temperature: 0 to 50 °C
• Certifications: CE, UL, cULus, ATEX, IECEx, Marine

Recommendations

For optimal performance, use with TIA Portal V16 or higher and ensure proper panel mounting with the specified cut-out dimensions. This device is ideal for creating modern, user-friendly operator interfaces in industrial environments.
