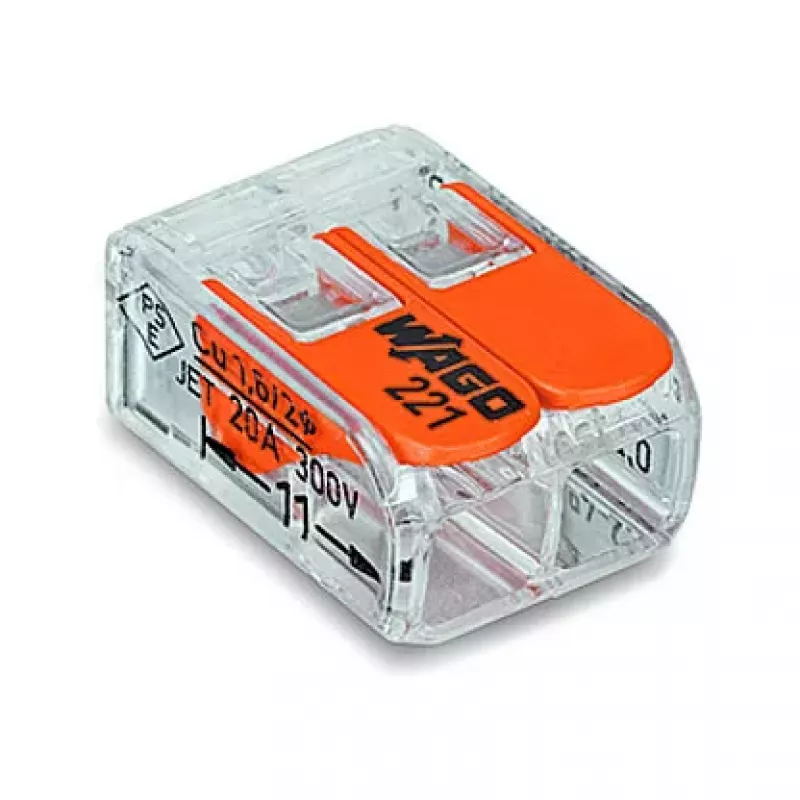

WAGO 221-412 2-Conductor Compact Splicing Connector, 0.2-4 mm², 100 Pieces

The WAGO 221-412 is a compact 2-conductor splicing connector from the renowned 221 Series, designed for fast and reliable wire connections without tools. With a transparent housing and orange operating levers, it provides visual inspection of conductor insertion. Suitable for solid, stranded, and fine-stranded wires from 0.2 to 4 mm² (24-12 AWG), it handles up to 450 V and 32 A. The CAGE CLAMP® connection technology ensures a secure, maintenance-free connection. This pack contains 100 pieces, ideal for electrical installations, junction boxes, and lighting applications.

Advantages

Tool-free operation with easy-to-use orange levers; transparent housing for visual connection check; compact design saves space; high current and voltage rating; vibration-proof and maintenance-free; suitable for multiple conductor types.

Suitable for

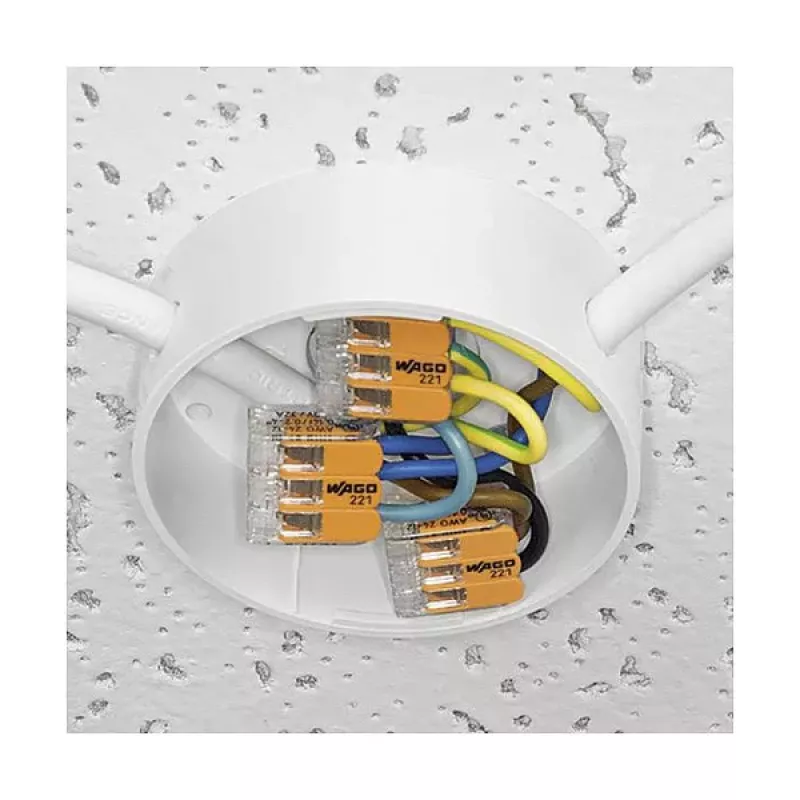

• Electrical wiring in junction boxes

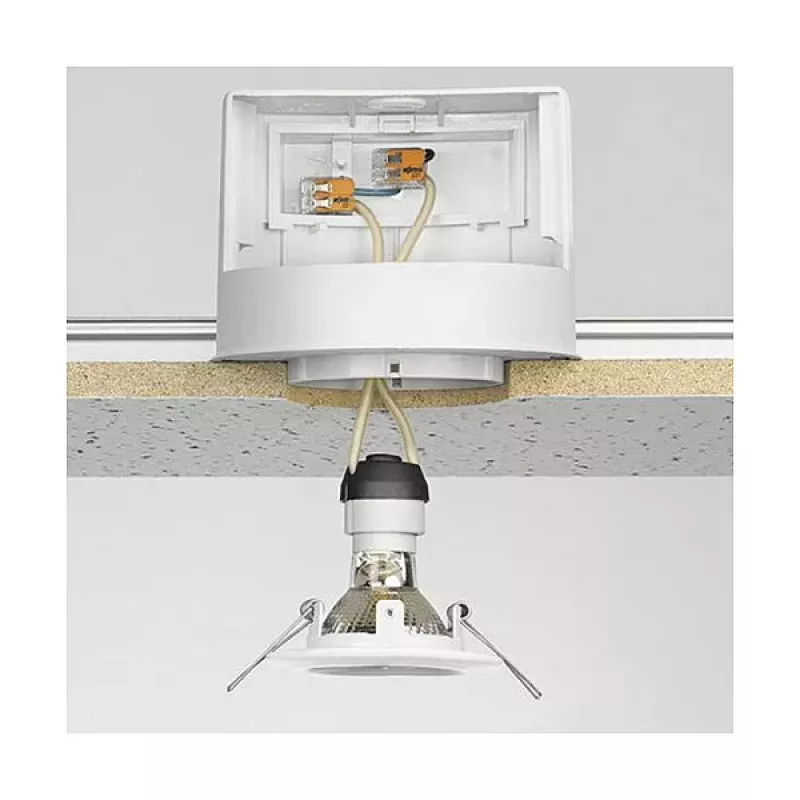

• Lighting and luminaire connections
• Industrial control cabinets
• DIY and professional electrical installations
• Connecting solid, stranded, and fine-stranded wires

Key specifications

• Series: 221 Series
• Number of Conductors: 2
• Connection Technology: CAGE CLAMP®
• Actuation Type: Operating Lever
• Max. Conductor Cross-Section (Solid/Stranded): 0.2 - 4 mm² (24 - 12 AWG)
• Max. Conductor Cross-Section (Fine-Stranded): 0.14 - 4 mm² (24 - 12 AWG)
• Rated Voltage (EN): 450 V
• Rated Impulse Voltage (EN): 4 kV
• Rated Current (EN): 32 A
• Pollution Degree: 2
• Color: Transparent (Housing), Orange (Levers)
• Flammability Rating: UL 94 V-2
• Operating Temperature: Max. 105 °C
• Strip Length: 11 mm / 0.43 inch
• Mounting Type: Free wiring
• Packaging Quantity: 100 pieces
• Dimensions (per connector): 18.6 x 8.1 x 8.9 mm (L x W x H)

Recommendations

For optimal performance, use with WAGO stripping tools and ensure proper strip length. Always follow local electrical codes and regulations. Suitable for both new installations and retrofitting.
