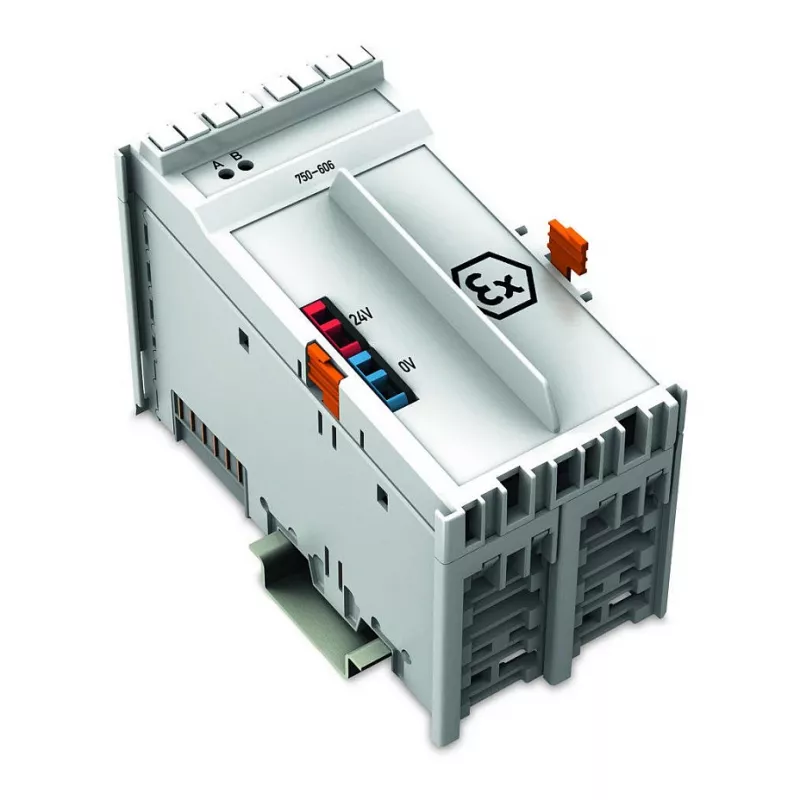

WAGO 750-606 Ex i Power Supply 24 VDC 1 A, Light Grey

Powering intrinsically safe field devices in a hazardous environment calls for more than just a standard power supply. The WAGO 750-606 is a potential supply module purpose-built for Ex i circuits within the WAGO I/O System 750. It converts the system voltage into a reliable 24 VDC output at 1 A, with galvanic isolation of 500 volts between the system and field sides. This ensures that sensitive explosion-protected sensors and actuators receive clean, stable power without compromising the integrity of your safety barrier.

Who is it for

This module is for control engineers and plant technicians who design or maintain process automation systems in potentially explosive atmospheres. If you are working with the WAGO 750 series and need a compact, certified way to feed Ex i devices such as pressure transmitters, temperature probes, or valve positioners, the 750-606 fits directly onto your DIN rail and connects seamlessly with the rest of the bus system. It is also a smart choice for machine builders who want to standardize on a single platform for both safe and hazardous area applications.

Main features

• Intrinsically safe (Ex i) output for hazardous area instrumentation
• 24 VDC output voltage with 1 A rated current
• ATEX and IECEx approvals for gas and dust zones
• True 500 V isolation between system and Ex i field circuits
• Compact 35 mm DIN-rail housing with CAGE CLAMP® wiring
• Rugged construction with IP20 protection and wide temperature range

Specifications

• Module type: Ex i power supply module
• System compatibility: WAGO I/O System 750
• Input voltage: 24 VDC (system voltage)
• Output voltage: 24 VDC
• Output current: 1 A
• Number of channels: 1
• Mounting type: DIN-rail 35
• Connection technology: CAGE CLAMP®
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -40 °C to +85 °C
• Protection degree: IP20
• Isolation: 500 V system/field
• Internal power consumption: typ. 0.5 W
• Colour: Light grey

Tips

When integrating the 750-606, always ensure that field wiring and connected devices meet the Ex i requirements for your zone. Use WAGO's CAGE CLAMP® technology for secure and maintenance-free wiring, and verify that the supply voltage at the module remains stable to guarantee accurate power for your measurement and control loops.
