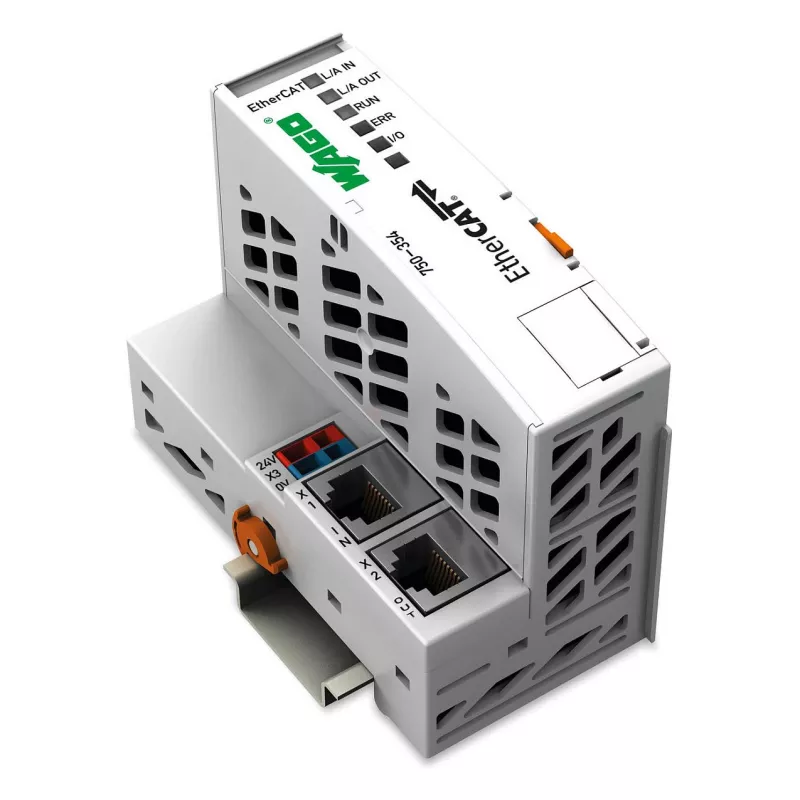

WAGO 750-354 EtherCAT Fieldbus Coupler, 100 Mbit/s, 24 VDC, DIN-rail

The WAGO 750-354 EtherCAT Fieldbus Coupler links an EtherCAT network to the WAGO I/O system, delivering high-speed data transfer at 100 Mbit/s for demanding automation tasks. It mounts directly on a 35 mm DIN rail and features a robust IP20 housing for control cabinet installation.

Advantages

This coupler supports up to 64 I/O modules locally, expandable to 250 using bus extension modules. The 24 VDC system supply accepts a wide input range from 18.5 to 30 V, ensuring stable operation even with voltage fluctuations. Integrated CAGE CLAMP® connection technology provides vibration-resistant and maintenance-free wiring for the field supply.

Suitable for

• Industrial automation and machine control
• Building automation systems
• Process control and monitoring networks
• Distributed I/O applications via EtherCAT

Key specifications

• Communication protocol: EtherCAT
• Data transfer rate: 100 Mbit/s
• Number of directly connectable I/O modules: 64 (up to 250 with bus extension)
• System supply voltage: 24 VDC (18.5...30 V)
• Field supply current: 10 A
• Current consumption (internal): 100 mA at 24 V
• Operating temperature: 0...55 °C
• Storage temperature: -25...85 °C
• Mounting type: DIN-rail 35
• Protection class: IP20
• Housing material: Polycarbonate, Polyamide 6.6
• Dimensions (W x H x D): 49.5 x 96.8 x 71.9 mm
• Weight: 102.88 g

Recommendations

For a complete EtherCAT node, combine this coupler with matching WAGO I/O modules and a bus extension module if more than 64 channels are required. Ensure proper power supply and grounding.
