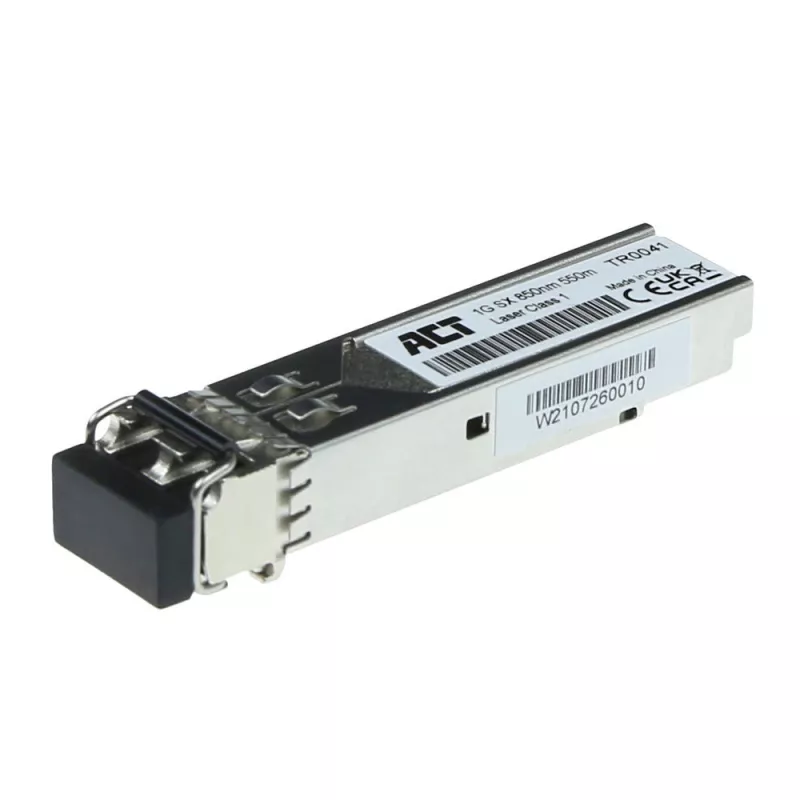

SFP transceiver module ACT TR0041 Fiber optic 1250 Mbit/s

Coded for SFP-1G-SX
Speed 1.25Gbps, suited for multimode cable
DDM support for monitoring SFP module
5 years warranty
Why choose ACT Optics?

ACT was established to provide users with a brand for highly reliable and consistent quality cabling and networking products. ACT solutions mix and match seamlessly with other brands.
Why do more and more companies choose ACT?

- Consistent quality guaranteed
- Complete range of connectivity products
- Meets international standards to ensure compatibility with other brands
- Over one million connectivity products in stock
- 5-year warranty

ACT SFP modules also offer:

- DDM; ability to have diagnostic data from the module read by the switch such as power consumption, temperature, any errors etc.
- Compatibility; modules that are coded offer 100% brand compatibility.
- Packaging; each module is individually packaged.
- 5 years warranty.
- Technical support from experienced staff.

Coding and compatibility: Dell

This model SFP module works with Dell equipment. Dell requires the proper coding in an SFP module for compatibility. ACT has coded this model SFP module for 100% compatibility with Dell. Coding is also available for other brands. Please contact our team with questions about compatibility and coding.

The 3 advantages of SFP modules

The 3 biggest advantages of using SFP fiber modules are:
1. Standardization
2. Flexibility
3. Continuity

1. SFP modules are the standard for fiber optic communication

Manufacturers of network equipment support the SFP, SFP+ and QSFP standards. SFP modules are used in different devices such as switches, routers, firewalls, servers and storage devices. These devices are equipped with a port where an SFP module can be plugged in. The abbreviation SFP stands for Small Form Factor Pluggable.
The standard for the use of SFP modules was established in cooperation with the various manufacturers. This standard is therefore called an MSA, which stands for Multi-Source Agreement.

2. SFP modules ensure maximum flexibility in a fiber optic network

A fiber optic cable is connected to an SFP module, which is plugged into the switch. The SFP module serves as an interface between the fiber optic cable and the connected equipment. This ensures maximum flexibility, as the SFP can be exchanged without having to exchange or replace the equipment in question.

Situations where only the SFP module needs to be exchanged, rather than the equipment:
- Transition to a network with a different type of fiber; for example, from single-mode to multimode.
- Changing distances: for example, from 100 meters to 80 kilometers.
- Change to another speed; for example, if the speed of the switch changes from 1G to 10G.
- Different type of fiber optic connector; for example, if instead of an LC, an SC connector is placed on the cabling.

3. Continuity in the network by using hot swappable optics

In case of changes in fiber type, distance, speed and connector, the SFP module is replaced. An important advantage is that the equipment does not have to be switched off or restarted when the SFP modules are installed, which ensures excellent network continuity. Keeping equipment operational while placing and/or replacing fiber optic (SFP) modules is called "Hot swappable".

How do I clean SFP modules?

A large percentage of outages in fiber optic networks are solved by cleaning the cabling and the optics. We advise you not to allow SFP modules to become dirty by only using cables with cleaned connectors. If this model of SFP module does need to be cleaned, the ACT One click cleaner LC is suited for this.

ACT SFP SX transceiver coded for Dell SFP-1G-SX. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP

How to use

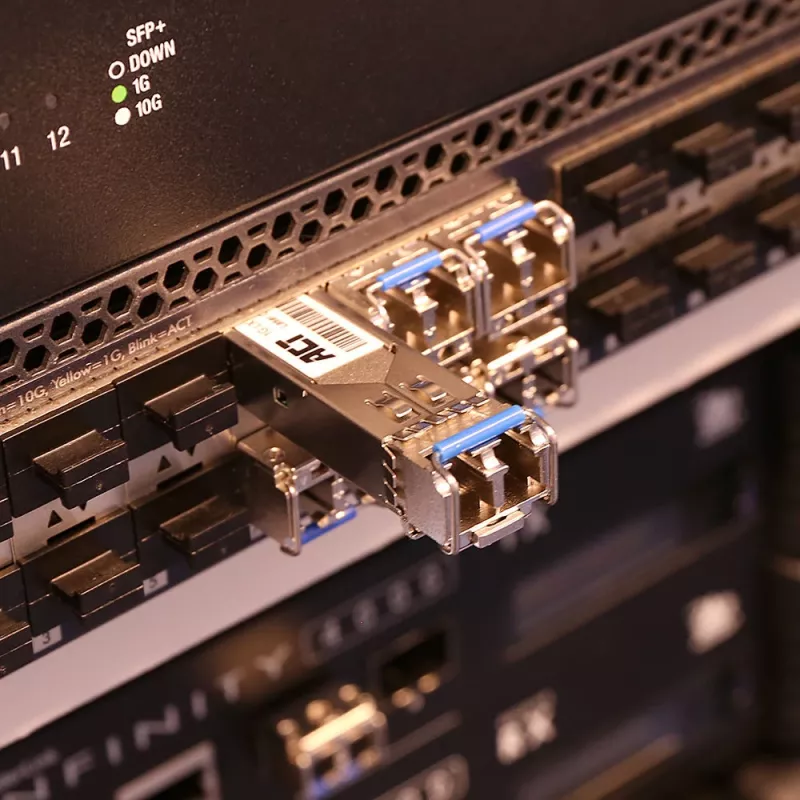

Insert the ACT TR0041 into an empty SFP slot on a compatible switch, router or server until it clicks into place. Connect an LC-terminated multimode fiber patch cable to the transceiver. Ensure the connected equipment supports 1.25 Gbps SFP modules and, if required, confirm coding compatibility with the vendor. Use the network device interface to verify link status and, if needed, read DDM values for diagnostics.

Recommendations

Prevent signal loss and damage by always using clean fiber connectors. For cleaning, use a dedicated fiber cleaner such as the ACT One Click Cleaner LC. Store unused modules in their original packaging and avoid touching optical interfaces.
