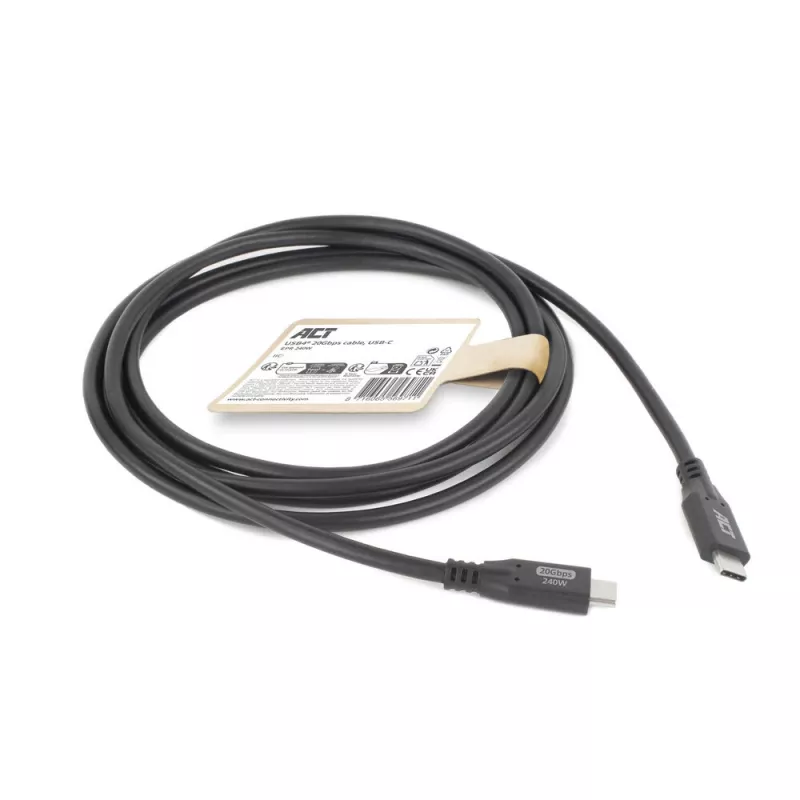

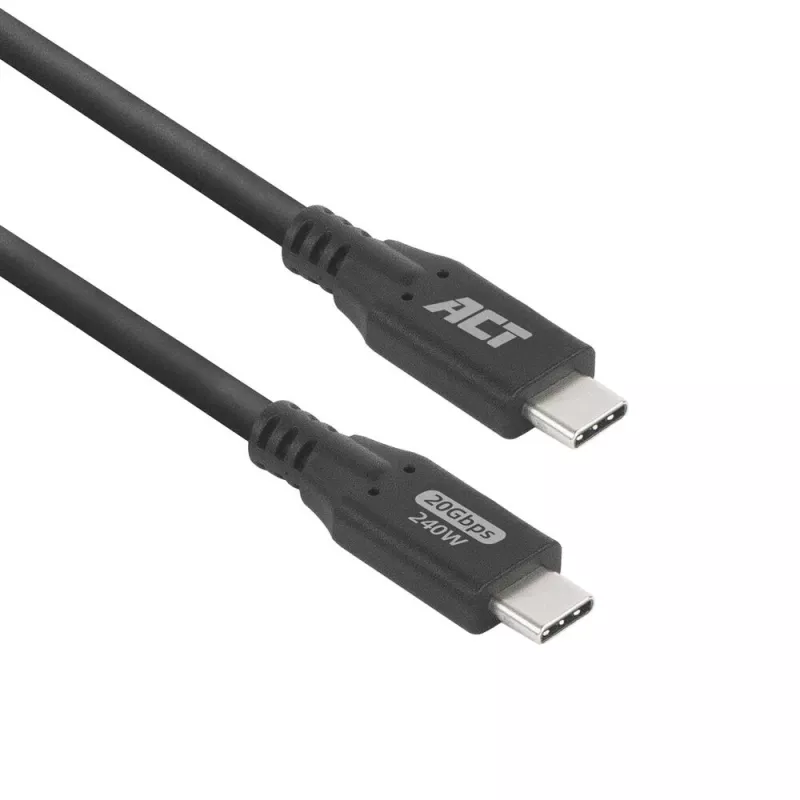

ACT USB4 20Gbps 240W USB Type-C Cable 0.5m Black

The ACT USB4 20Gbps 240W USB Type-C Cable (0.5 m) is a USB4 Gen 2x2 cable designed to combine high-speed data, power delivery and video over a single USB-C connection. It supports data transfer rates up to 20 Gbps, the DisplayPort Alternate Mode 1.4 for video output up to 4K@60Hz, and Extended Power Range (EPR) profiles that allow up to 240W charging. The cable is black, 0.5 m long and features reversible USB-C connectors on both ends.

Advantages

The cable includes an intelligent e-marker chip to negotiate supported features with connected devices and ensure safe power delivery up to 240W. It provides backward compatibility with USB 3.2, USB 3.1, USB 3.0 and USB 2.0 and supports simultaneous data transfer, power and video transmission over one USB-C cable.

Suitable for

• Connecting USB-C laptops to high-power chargers for fast charging (up to 240W)
• Transferring large files between USB4 or USB 3.x devices at up to 20 Gbps
• Connecting compatible devices to external displays using DisplayPort Alt Mode (up to 4K@60Hz)
• Replacing standard USB-C cables where higher power or USB4 speeds are required

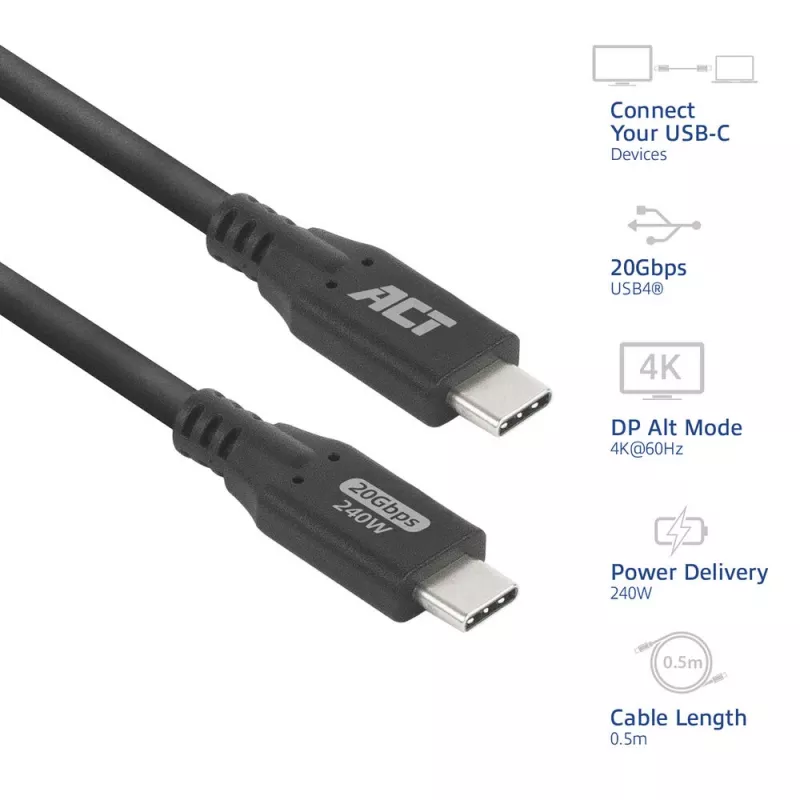

Key specifications

• Model: AC7420
• Brand: ACT
• Length: 0.5 m
• Connectors: USB-C to USB-C
• USB version: USB4 Gen 2x2 (20 Gbps)
• Maximum power delivery: 240W (EPR, 48V profile)
• Video: DisplayPort Alternate Mode 1.4, up to 4K@60Hz
• Colour: Black
• EAN: 8716065569711

How to use

Connect one USB-C end to the host device (for example a laptop) and the other end to a compatible charger, dock or display. Ensure both connected devices support the required USB4, DisplayPort Alt Mode and EPR power profiles to achieve maximum data, video and charging performance. The e-marker chip will negotiate capabilities automatically.

Recommendations

Use the cable with chargers, laptops and docks that explicitly support USB4 Gen 2x2 and EPR (48V) profiles to obtain the full 240W power and 20 Gbps data speeds. Avoid bending the cable sharply and follow the device manufacturers’ guidelines for high-power charging.
