Scanner module DeLOCK Barcode Scanner Module 1D and 2D Black FPC 12-pin

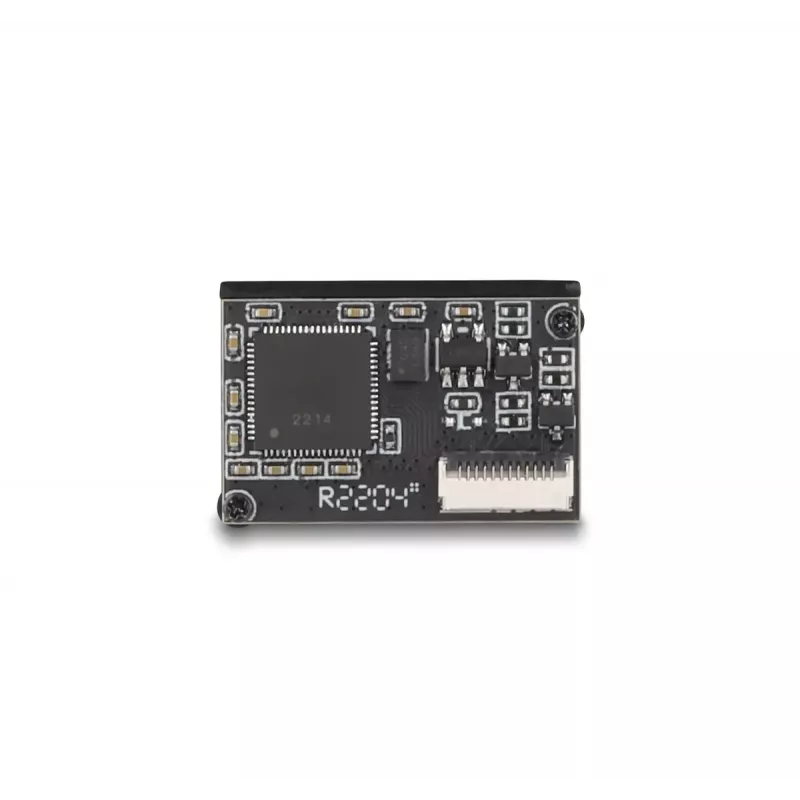

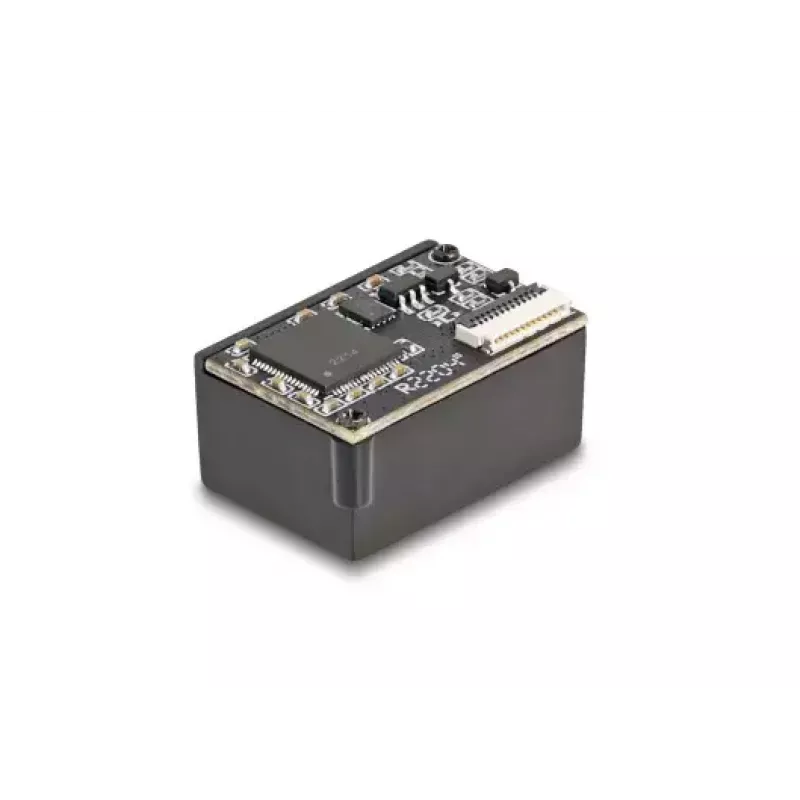

This Delock barcode scanner module is designed for installation inside a housing and supports both 1D and 2D barcodes. The compact module measures 21 x 14 x 9 mm and connects via a 12‑pin FPC connector, making it suitable for integration into devices that require built‑in barcode scanning functionality. The unit is supplied in black and weighs approximately 0.002 kg. Note: the module outputs using the German keyboard layout only.

Advantages

The scanner combines a very small form factor with the ability to read all common 1D and 2D barcode types, including barcodes shown on displays. It adapts automatically to ambient brightness and can perform up to 30 scans per second under optimal lighting. In low light the built‑in white LED illuminates the barcode for reliable capture. The 12‑pin FPC interface simplifies integration into custom housings and devices.

Suitable for

Key specifications

How to use

Mount the module inside the intended housing and connect it to the host device using the 12‑pin FPC interface following the manufacturer’s pin‑out and electrical specifications. Position the scanner behind an appropriate window or opening so the sensor has a clear view of barcodes. Ensure the host system is configured to accept keyboard‑style input and aware that the module uses the German keyboard layout for output. Test scanning with both printed labels and barcodes displayed on screens to confirm correct alignment and operation.

Recommendations

For reliable performance, install the module where ambient light is stable or where the built‑in LED can illuminate the barcode. Avoid placing the sensor behind thick or highly reflective materials. Verify keyboard layout settings in the host system if characters are misinterpreted.
