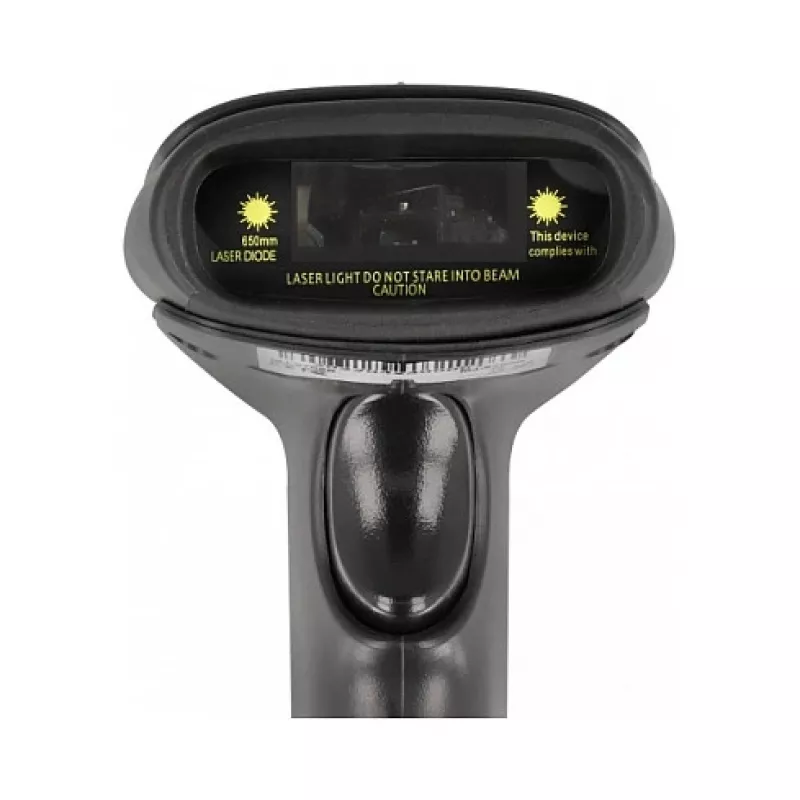

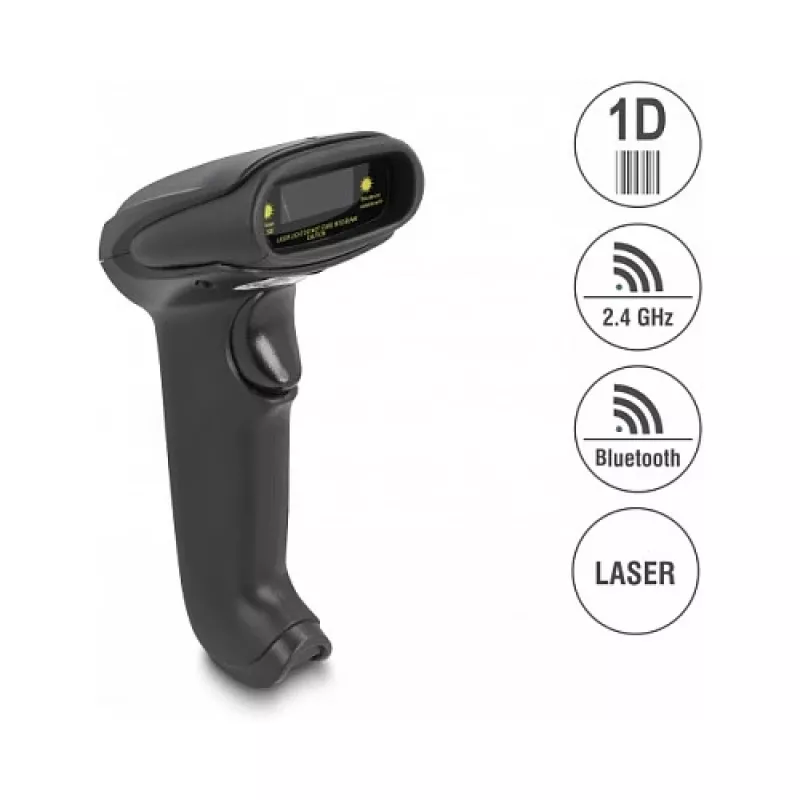

Handheld Barcode Scanner DeLOCK 90564 1D Laser Bluetooth USB

The DeLOCK 90564 handheld barcode scanner is a 1D laser reader designed for wired and wireless operation. It supports common linear barcode formats such as EAN‑13, EAN‑8, Code 128, Code 39, Discrete 2 of 5 and ISBN. The scanner can transfer scanned data via Bluetooth, the supplied 2.4 GHz USB dongle or a USB cable, and is powered by a rechargeable 180 mAh lithium polymer battery. Its compact, lightweight design makes it suitable for retail and inventory tasks where quick and reliable 1D barcode capture is required.

Advantages

The scanner captures up to 100 reads per second with a working distance up to 300 mm and supports multiple connectivity modes (Bluetooth, 2.4 GHz USB dongle, and wired USB). Lightweight construction (0.19 kg) and a rechargeable battery enable flexible use across desktop, mobile and handheld workflows. Compatible with all common linear barcode types for straightforward integration into point-of-sale and stock management systems.

Suitable for

Key specifications

How to use

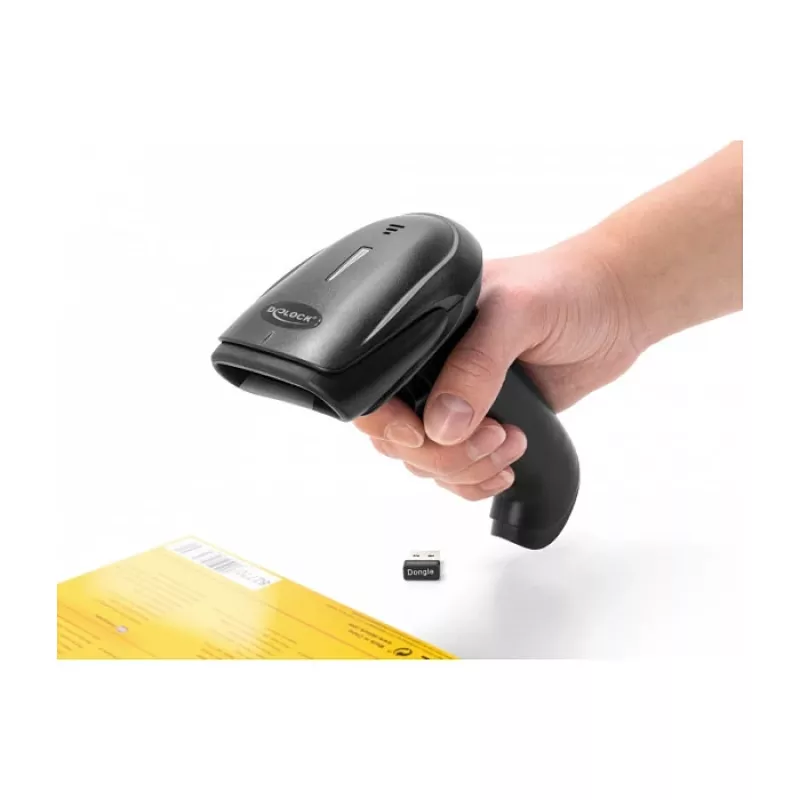

Connect the scanner to a PC or laptop using the supplied USB cable for immediate wired operation. For wireless use, plug the included 2.4 GHz USB dongle into the host device or pair the scanner via Bluetooth with a Bluetooth‑capable phone, tablet or computer. Point the scanner at a 1D barcode within the working distance (up to 300 mm) and press the trigger to capture the code; scanned data will transmit to the connected device through the selected interface. Recharge the internal battery via USB when required.

Recommendations

For reliable scanning, ensure the barcode is clean and well lit, and maintain an appropriate distance (up to 300 mm) for optimal laser focus. Use the USB cable for setup or when continuous power is needed, and the 2.4 GHz dongle or Bluetooth for mobile or wireless workflows.
