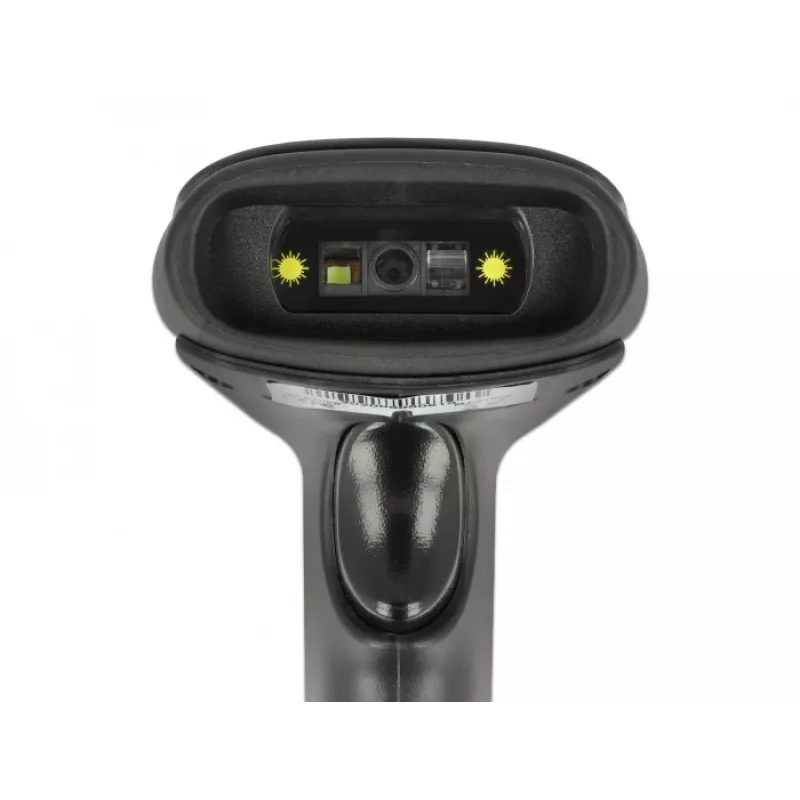

Handheld Barcode Scanner DeLOCK 90562

This Delock barcode scanner connects wirelessly to PCs, laptops, smartphones and tablets and reads common 1D and 2D barcodes, including codes displayed on screens. It adapts to ambient light, offers up to 30 scans per second in optimal lighting and uses an additional white LED to illuminate codes in low light. Multiple connection options are available: Bluetooth, a 2.4 GHz USB dongle or a wired USB cable.

Advantages

The scanner captures both 1D and 2D barcodes at long distances and can read codes shown on monitors and displays. It automatically adjusts to ambient brightness for reliable scanning and provides a white LED for operation in dim environments. Data transfer is flexible: direct Bluetooth pairing, wireless 2.4 GHz via the included USB dongle, or wired connection with the supplied USB cable.

Key specifications

• Supported codes: common 1D and 2D barcode types
• Scan rate: up to 30 scans per second (under optimal lighting)
• Lighting adaptation: automatic ambient brightness detection
• Illumination: additional white LED for low-light scanning
• Connectivity: Bluetooth, 2.4 GHz via included USB dongle, USB cable
• Compatibility: PC, laptop, mobile phones, tablets, displays and monitors

How to use

Pair the scanner with a Bluetooth-capable device for wireless operation, plug in the included USB dongle to use the 2.4 GHz connection, or connect the scanner directly to a computer using the supplied USB cable. Aim the scanner at the barcode or the barcode displayed on a screen and press the scan button; the device will adjust to ambient light and, if necessary, activate the white LED to illuminate the code. Scanned data is transmitted to the connected device via the selected connection method.

Recommendations

For best results, use the scanner in environments where the automatic brightness adaptation can operate effectively; in very reflective or extremely dark conditions, adjust the angle between scanner and display or increase ambient lighting. Use the USB cable when maximum transmission stability is required, and the 2.4 GHz dongle or Bluetooth for flexible wireless setups.
