Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey

Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
-12%
Black Week
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
Akyga Basic AK-B1-550 ATX Power Supply 550 W, 120 mm Fan, Passive PFC, Grey
R820
R935−12%
PDF
PDF
Stock 1138 Code 1714791 Model AK-B1-550 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, December 15
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Ask a question – the AI assistant answers instantly.

Description

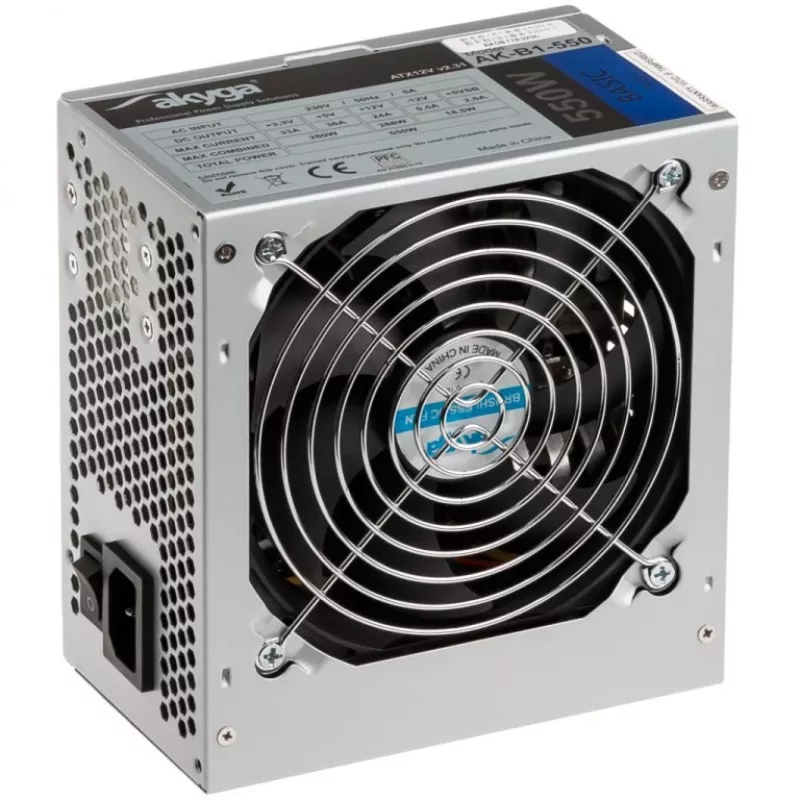

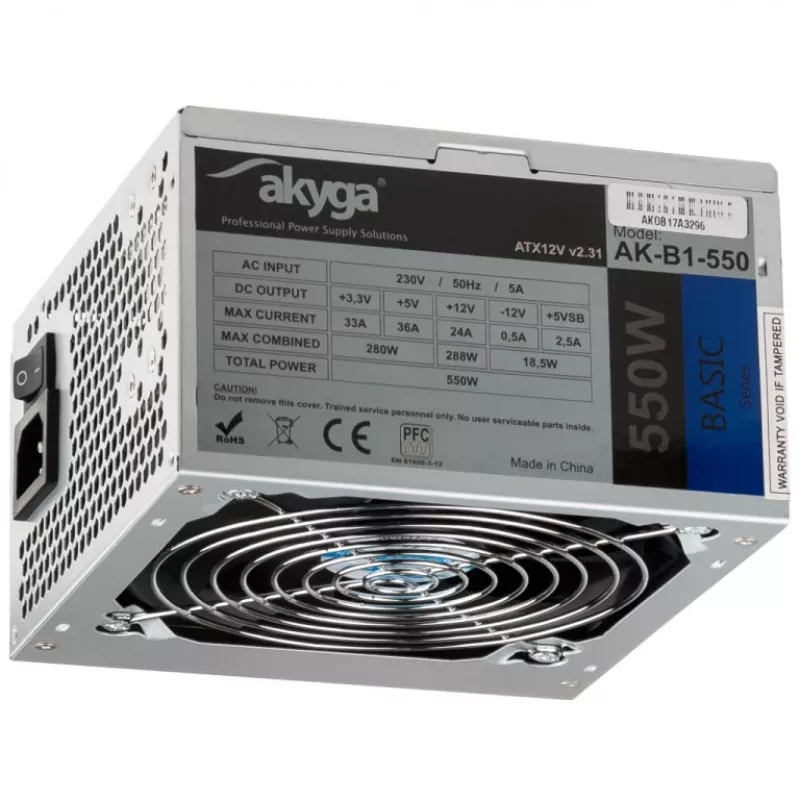

The Akyga Basic AK-B1-550 is a 550 W ATX power supply designed for desktop PCs. It features a 120 mm top-mounted fan and a grey galvanized steel housing.

Key features

  • 550 W total power
  • 120 mm fan
  • ATX 2.31 form factor
  • Non-modular cabling
  • Passive PFC
  • Manual on/off switch
  • Protection: OVP, OCP, OPP, OTP, SCP

Specifications

  • Purpose: PC
  • Supported motherboard form factors: ATX
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.31
  • Total power: 550 W
  • Peak power: 550 W
  • AC input voltage: 230 V
  • Input current: 5 A
  • Efficiency: 70 %
  • Cooling type: Active
  • Number of fans: 1
  • Fan diameter: 120 mm
  • Fan location: Top
  • Product colour: Grey
  • Material: Galvanized steel
  • Motherboard power connector: 20+4 pin ATX
  • CPU P4 connector (4-pin): 1
  • PCI Express power connectors (6+2 pin): 1
  • Number of SATA power connectors: 3
  • Peripheral (Molex) power connectors (4-pin): 2
  • Mini-Molex connector: 1
  • Cabling type: Non-Modular
  • CPU power cable length: 450 mm
  • SATA power cable length: 300 mm
  • Peripheral (Molex) power cable length: 300 mm

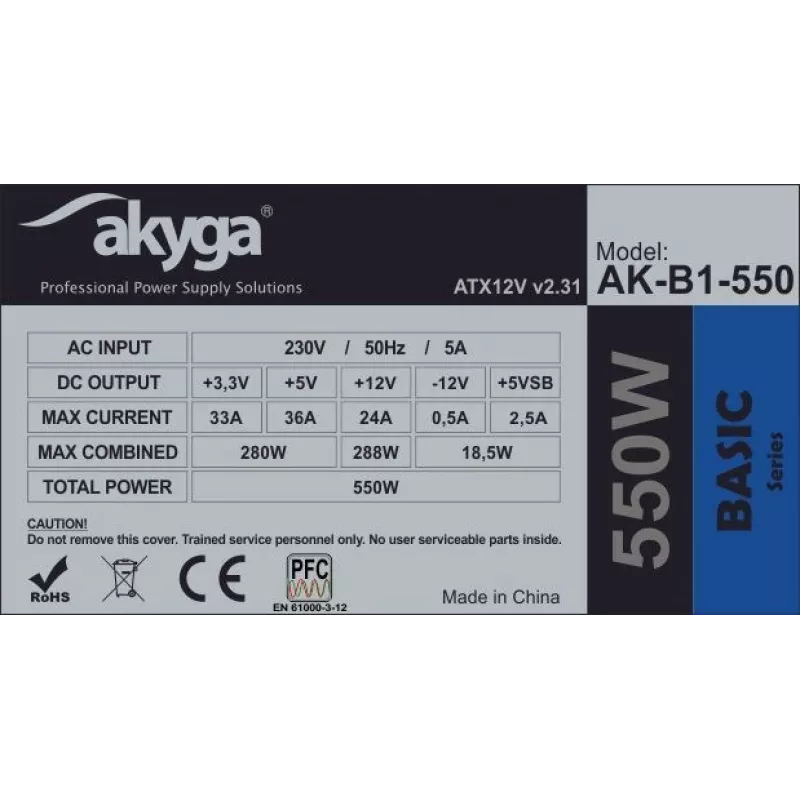

  • Combined power (+3.3V): 280 W
  • Combined power (+5V): 280 W
  • Combined power (+12V): 288 W
  • Combined power (-12V): 18.5 W
  • Combined power (+5Vsb): 18.5 W
  • Max output current (+3.3V): 33 A
  • Max output current (+5V): 36 A
  • Max output current (+12V): 24 A
  • Max output current (-12V): 0.5 A
  • Max output current (+5Vsb): 2.5 A
  • Power protection features: Short circuit, Overheating, Over voltage, Over power, Over current
  • Mean time between failures (MTBF): 100000 h
  • Operating temperature (T-T): 5 - 50 °C
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 85 mm
  • Weight: 1.04 kg
  • Certification: CE, REACH
  • Compliance certificates: RoHS
  • Country of origin: China
Key Highlights
  • Basic and office desktop builds
  • Home computers used for web, office and multimedia
  • Systems with single mid-range graphics card or integrated graphics
  • Total power output: 550 W
  • Efficiency: around 70%
  • Motherboard connector: 20+4 pin ATX
  • Cooling: 120 mm fan with automatic speed control
  • Input voltage: 230 V AC

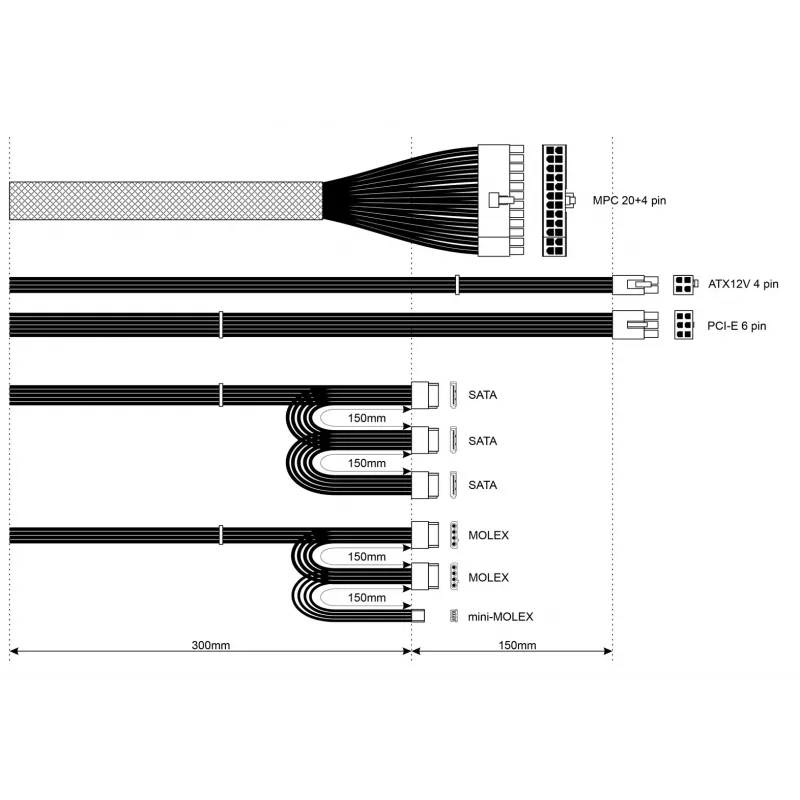

  • Cable connectors: 3× SATA, 2× Molex, 1× mini‑Molex, 1× P4 4‑pin, 1× PCI‑E 6‑pin
  • Form factor: ATX
  • Weight: 1.04 kg
  • Colour: Grey

Specifications

Specifications
AC input voltage
230
ATX version
2.31
Cabling type
Non-Modular
Certification
CE, REACH
Combined power (+12V)
288 W
Combined power (+3.3V)
280 W
Combined power (+5V)
280 W
Combined power (+5Vsb)
18.5 W
Combined power (-12V)
18.5 W
Compliance certificates
RoHS
Cooling type
Active
Country of origin
China
CPU P4 connector (4-pin)
1
CPU power cable length
450 mm
Depth
140 mm
Efficiency
70 %
Fan diameter
120 mm
Fan location
Top
Height
85 mm
Input current
5
Manual
Yes
Max output current (+12V)
24 A
Max output current (+3.3V)
33 A
Max output current (+5V)
36 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.5 A
Mean time between failures (MTBF)
100000 h
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
3
On/off switch
Yes
Operating temperature (T-T)
5 - 50
Package depth
220 mm
Package height
95 mm
Package type
Box
Package weight
1120 g
Package width
160 mm
PCI Express power connectors (6+2 pin)
1
Peak power
550 W
Peripheral (Molex) power cable length
300
Peripheral (Molex) power connectors (4-pin)
2
Power protection features
Short circuit, Overheating, Over voltage, Over power, Over current
Power supply unit (PSU) form factor
ATX
Product colour
Grey
Purpose
PC
SATA power cable length
300
Supported motherboard form factors
ATX
Total power
550 W
Warranty card
Yes
Weight
1.04 kg
Width
150 mm
