Power Supply Unit Akyga AK-I1-200 200 W

The Akyga AK-I1-200 Pro series is a compact 200 W ITX power supply designed primarily for mini-ITX and 1U style cases, and it is also suitable for rack installations. It provides a universal 24-pin motherboard connector, a P4 4-pin CPU connector, two Molex connectors and two SATA power connectors. The unit features a 40 mm silent fan with automatic speed control and delivers stable power with efficiency above 70%; the supply includes protection circuits and a PFC filter and is supplied with a power cord.

Advantages

The power supply offers a small form factor compatible with mini-ITX and 1U enclosures while maintaining a full set of connectors for modern components. Built-in protections (OVP, OCP, OPP, OTP, SCP, UVP) and an active PFC filter increase system reliability. The compact 40 mm fan ensures effective cooling with low noise, and the 80 PLUS certification indicates improved energy efficiency compared with non-certified units.

Suitable for

• Mini-ITX desktop systems
• 1U rackmount or low-profile cases
• Compact office PCs and home servers
• Systems requiring a non-modular, fixed-cable 200 W PSU

Key specifications

• Total power: 200 W
• Efficiency: 70% (80 PLUS certified)

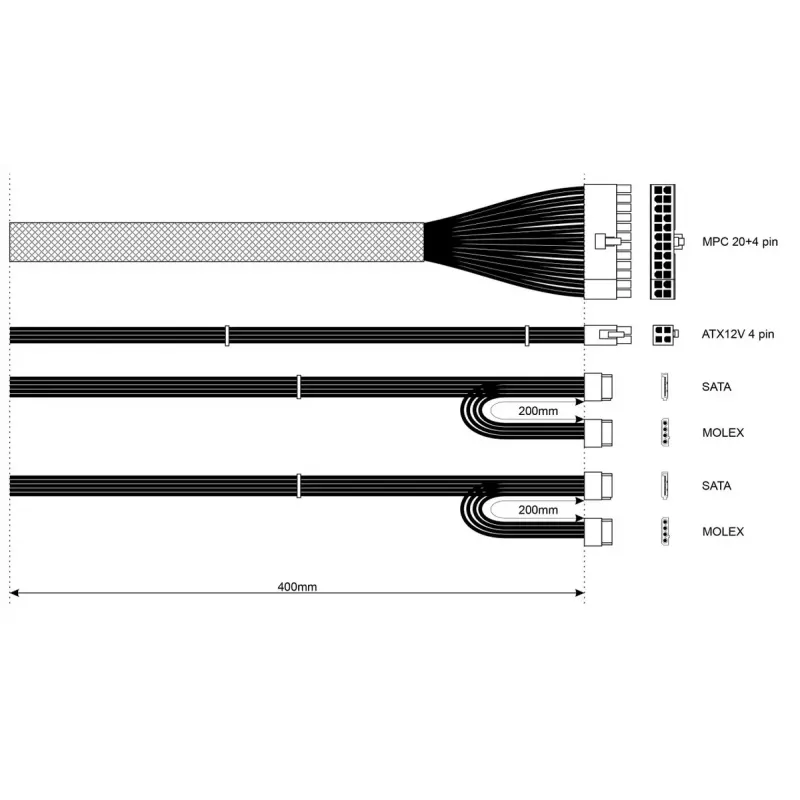

• Motherboard connector: 24-pin ATX
• CPU connector: P4 4-pin
• Peripheral connectors: 2 × Molex, 2 × SATA
• Fan diameter: 40 mm
• Input: 230 V AC, 50–60 Hz
• Weight: 0.58 kg
• Colour: Grey

How to use

Install the Akyga AK-I1-200 into a compatible mini-ITX or low-profile case following the case manufacturer’s mounting instructions. Connect the 24-pin connector to the motherboard, attach the P4 4-pin to the CPU power header, and use the Molex and SATA cables to power drives and peripherals. Ensure the mains voltage is 230 V and secure the power cord to the unit. After installation, power on the system and verify stable operation and correct fan response under load.

Recommendations

If the system will operate continuously or under moderate load (e.g., small home server or 24/7 office PC), allow some headroom below the 200 W rating and verify temperatures in a compact case; ensure adequate case airflow to maintain cooling efficiency and prolong component lifetime.
