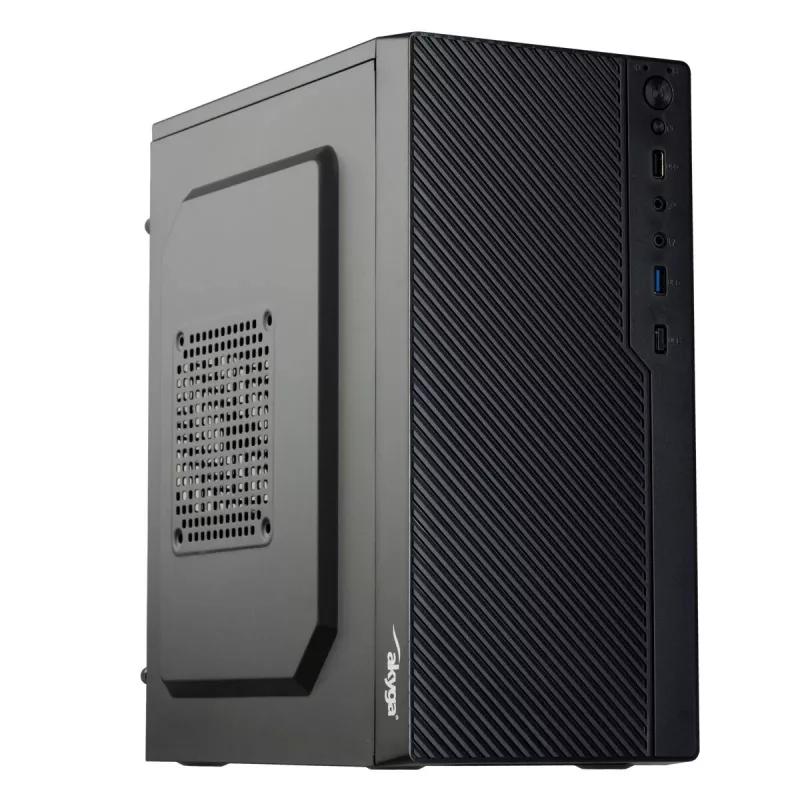

PC case Akyga AK36BK Micro Tower Black — Micro Tower, supports Flex-ATX/Mini-ITX/Micro-ATX, GPU max 25 cm, CPU cooler max 14 cm

The Akyga AK36BK housing is a compact Micro Tower case in black designed for space-saving desktop builds at home or in the office. It supports Flex-ATX, Micro ATX and Mini-ITX motherboards, accepts a graphics card up to 250 mm long, and offers space for up to three cooling fans. The case accommodates combinations of 3.5" and 2.5" drives across three internal bays and provides a top-mounted power supply layout for efficient internal organisation.

Advantages

The case combines a minimalist black design with small external dimensions (175 mm wide, 310 mm deep, 350 mm high) and a lightweight ABS construction. It supports flexible storage configurations (two 3.5" and one 2.5" or two 2.5" and one 3.5") and includes two front USB A ports (one USB 2.0 and one USB 3.0) plus audio and microphone jacks for convenient front-panel connectivity. Cooling support includes two 120 mm fans at the front and one 80 mm fan at the rear.

Suitable for

• Compact office or home desktop builds
• Small-form-factor gaming rigs with a single mid-length GPU (up to 250 mm)
• HTPC or media centre setups requiring a small footprint

Key specifications

• Form factor: Micro Tower (supports Flex-ATX, Micro ATX, Mini-ITX)
• Drive bays: total 3 internal bays (configurable as two 3.5" + one 2.5" or two 2.5" + one 3.5")
• GPU clearance: up to 250 mm
• Cooling support: up to three fans (two 120 mm front, one 80 mm rear)

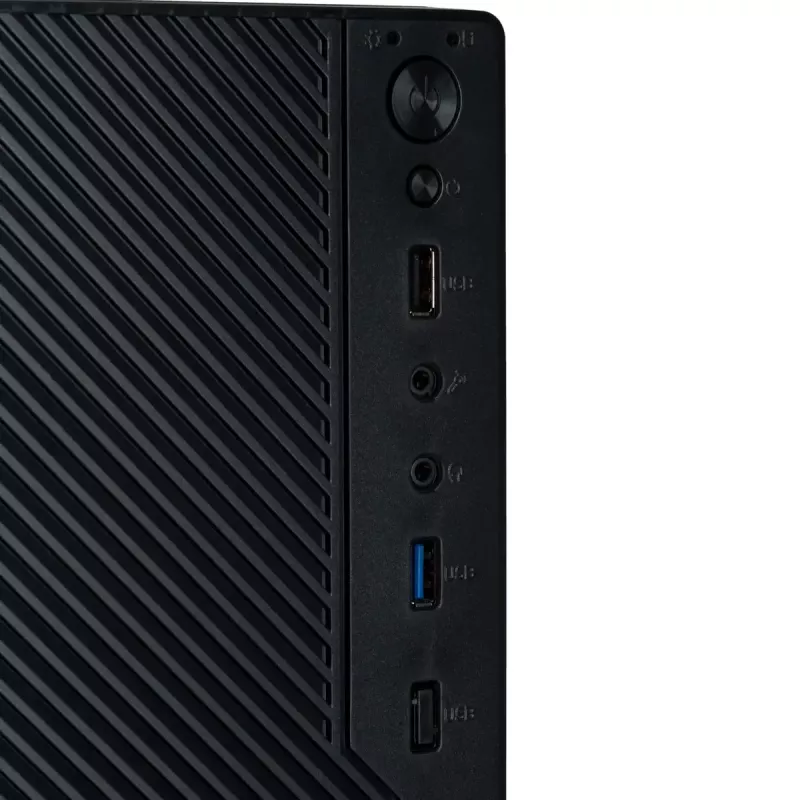

• Front I/O: 1× USB 2.0, 1× USB 3.0 (Type-A), audio and microphone jacks
• Material: ABS synthetic
• Dimensions (W×D×H): 175 × 310 × 350 mm
• Weight: 2 kg

How to use

Install a compatible Flex-ATX, Micro ATX or Mini-ITX motherboard using the provided standoff locations, then mount the power supply in the top position. Fit storage drives into the internal bays according to the chosen combination of 3.5" and 2.5" drives and secure the graphics card (maximum 250 mm length) in the PCI slot. Connect the front-panel USB and audio cables to the motherboard headers. Add up to three fans—two 120 mm in the front and one 80 mm in the rear—to improve airflow as required.

Recommendations

For stable temperatures in compact builds, use the maximum available front airflow (two 120 mm fans) and choose low-profile CPU coolers or compact SFX-compatible power supplies if space is limited. Ensure cable routing is tidy to maintain unobstructed airflow and verify motherboard front-panel pinouts before connecting USB and audio leads.
