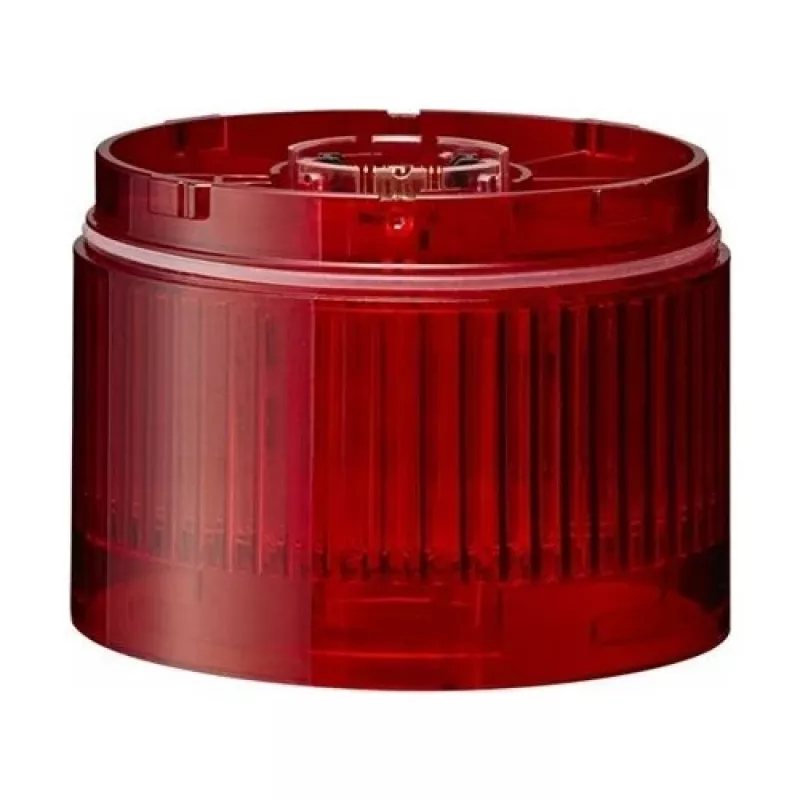

PATLITE LR7-E-R LED Color Module, Red, 70mm, DC 24V, IP65

The PATLITE LR7-E-R is a high-quality LED color module from the renowned LR7 Series, designed for use in signal towers and industrial indication systems. This 70mm diameter module features a bright red LED light source, ensuring clear visibility in various environments. With a robust IP65 protection rating, it is suitable for demanding industrial applications where dust and water ingress are concerns. The module operates on a system voltage of DC 24V and consumes approximately 30-40 mA, making it energy-efficient. Its modular, stackable design allows for easy integration into existing PATLITE LR7 Series signal towers, providing flexible configuration for visual alerts.

Advantages

The LR7-E-R offers exceptional durability with an expected LED life of 100,000 hours, reducing maintenance costs. Its IP65 rating ensures reliable performance in harsh conditions, while the polycarbonate lens provides excellent light transmission and impact resistance. The module is certified to CE, RoHS, and UL (cULus) standards, guaranteeing compliance with international safety and environmental regulations.

Suitable for

• Industrial automation and manufacturing facilities
• Warehouse and logistics centers
• Machine tool and equipment status indication
• Process control and alarm systems
• Any application requiring reliable visual signaling

Key specifications

• Product Type: LED Color Module
• Series: LR7 Series
• Diameter: 70 mm
• Light Source: LED
• Light Color: Red
• Operating Voltage: DC 24V (System Voltage)
• Current Consumption: Approx. 30-40 mA (at 24V DC)
• Protection Rating: IP65
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -30°C to +60°C
• Humidity Range: 30% to 85% RH (non-condensing)
• Mounting Type: Modular, Stackable
• Body Material: ABS Resin
• Lens Material: Polycarbonate
• Certifications: CE, RoHS, UL (cULus)
• Expected LED Life: 100,000 hours
• Compatibility: PATLITE LR7 Series Signal Towers
• Illumination Function: Continuous (controlled by base unit for flashing/blinking)

Recommendations

For optimal performance, pair this module with a compatible PATLITE LR7 Series base unit and power supply. Ensure proper installation to maintain IP65 integrity. This module is designed for indoor use; for outdoor applications, additional protection may be required.
