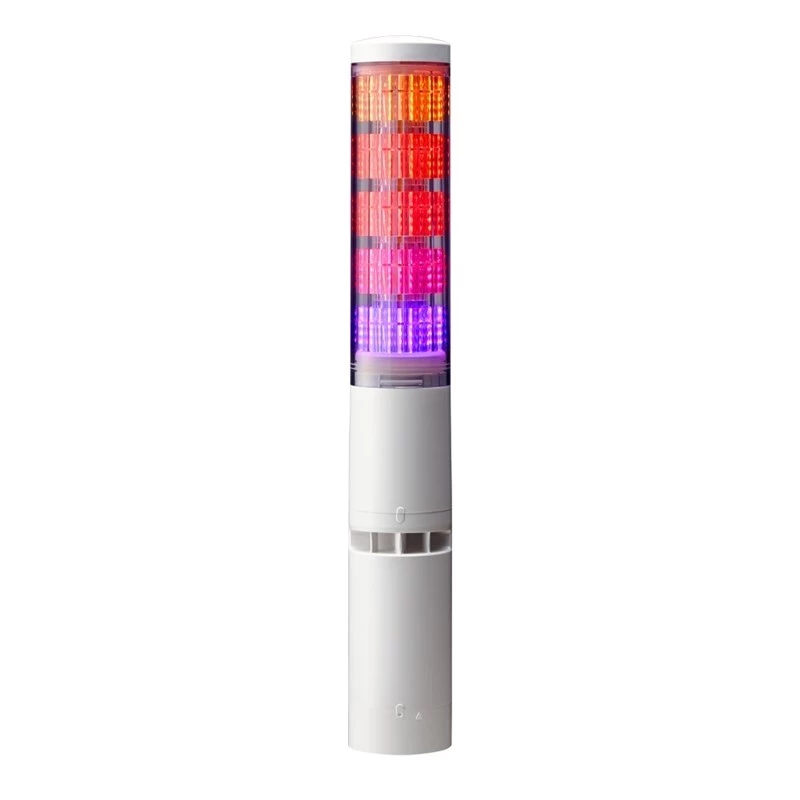

PATLITE LA6-5DTNWB-POE 5-Tier LED Signal Tower with PoE, Ethernet, Programmable, IP65, Buzzer

With five LED tiers and Power over Ethernet, this PATLITE signal tower delivers clear, multi-colour status indication and audible alerts over a single network cable. The LA6-5DTNWB-POE combines red, amber, green, blue, and white lights with an 85 dB buzzer, all controllable via TCP/IP, UDP, HTTP, SNMP, or Modbus/TCP.

Overview

The PATLITE LA6-5DTNWB-POE is a professional signal tower engineered for industrial automation, process control, and facility monitoring. It features five independently programmable LED tiers and an integrated buzzer, enabling complex status communication without additional wiring. Powered by PoE (IEEE 802.3af Class 0), it simplifies installation by eliminating separate power cables and power supplies.

What stands out

• PoE-powered: no separate power cable needed, reducing installation time and cost.
• Five LED colours (red, amber, green, blue, white) plus an 85 dB buzzer for distinct multi-status indication.
• IP65-rated housing: dust-tight and protected against water jets, suitable for harsh environments.
• Network programmable: control via HTTP, SNMP, Modbus/TCP, TCP/IP, or UDP for flexible integration.
• Durable construction: polycarbonate lens and ABS resin housing withstand industrial conditions.

Technical details

• Number of LED tiers: 5
• LED colours: red, amber, green, blue, white
• Light patterns: steady, flashing
• Integrated buzzer: yes, 85 dB at 1 m
• Communication interface: Ethernet (RJ45)
• Network protocols: TCP/IP, UDP, HTTP, SNMP, Modbus/TCP
• Power supply: Power over Ethernet (PoE IEEE 802.3af Class 0)
• Input voltage: 48 V DC via PoE
• Current consumption: max. 0.2 A
• Ingress protection: IP65
• Operating temperature: -20°C to +50°C
• Mounting type: direct mount
• Body colour: white
• Lens material: polycarbonate
• Housing material: ABS resin
• Control method: programmable via network

Our verdict

A robust, network-ready signal tower that combines five-colour indication, audible alerts, and PoE convenience. Ideal for factory automation, warehouse logistics, and building security where clear, remote-controllable status signalling is essential.
