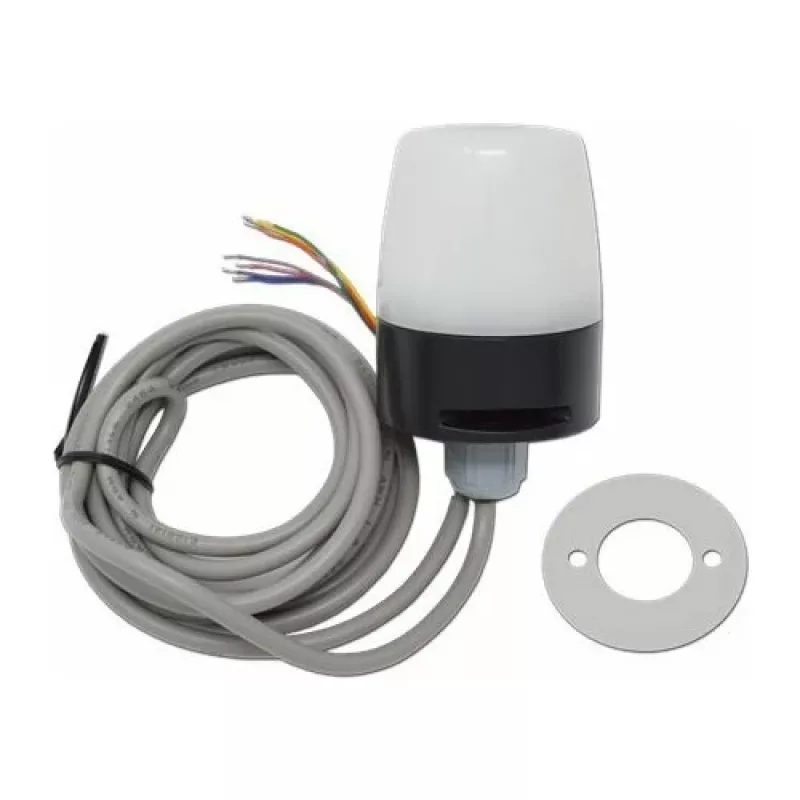

PATLITE NE-M1ANB-M Signal Tower with Buzzer, 7 Colors, LED, 24V DC, IP65

The PATLITE NE-M1ANB-M is a compact and versatile signal tower designed for industrial applications requiring clear visual and audible alerts. With 7 selectable LED colors and an integrated buzzer, this device provides effective status indication for machinery, production lines, and process control systems. Its rugged IP65-rated housing ensures reliable operation in harsh environments.

Advantages

• 7 vivid LED colors for multi-status indication
• Integrated buzzer with 88 dB sound pressure at 1m
• Two visual and two audible signal patterns
• IP65 protection against dust and water jets
• Compact 40 mm diameter design saves space
• Pre-wired cable for easy installation

Suitable for

• Industrial automation and manufacturing
• Machine status indication
• Process control and alarm systems
• Warehouse and logistics equipment

Key specifications

• Light source: LED
• Number of colors: 7 (Red, Yellow, Green, Blue, Light Blue, Purple, White)
• Visual patterns: Steady, Flashing
• Audible signal: Buzzer (88 dB at 1m)
• Buzzer tones: Continuous, Intermittent
• Operating voltage: 24V DC
• Current consumption: 0.1 A (100 mA)
• Protection rating: IP65
• Body material: ABS resin
• Lens material: Polycarbonate
• Mounting: Direct mount
• Diameter: 40 mm
• Cable length: 0.5 m
• Operating temperature: -20°C to +50°C
• Certifications: CE, RoHS
• LED life expectancy: 50,000 hours
• Connection: Pre-wired cable (AWG22)

Recommendations

For optimal performance, ensure the supply voltage is stable 24V DC. The device is suitable for indoor use only. Mount on a flat surface using the provided screws. Refer to the manual for wiring and configuration details.
