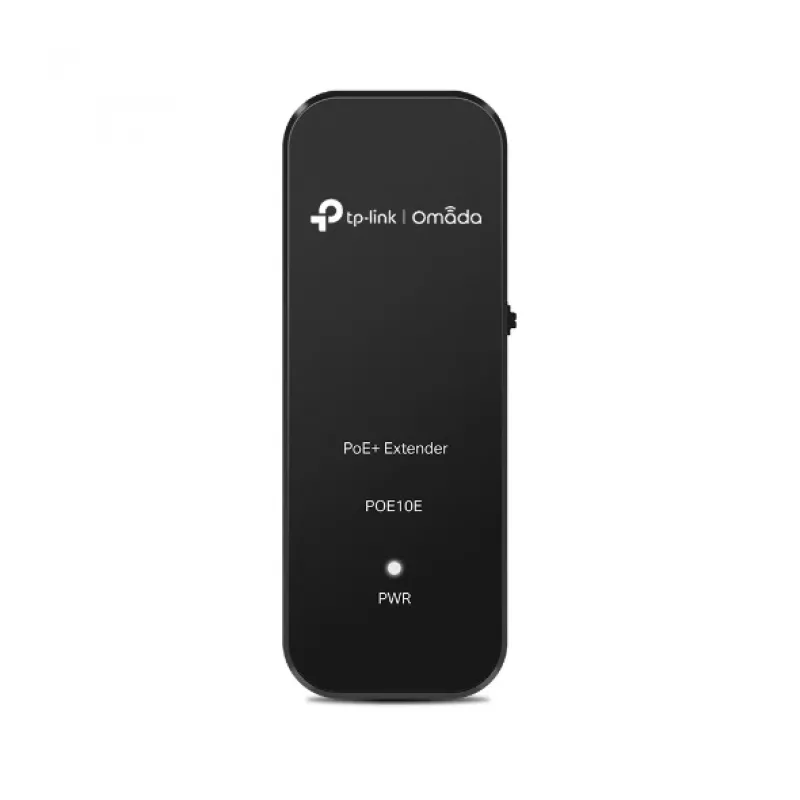

Network repeater TP-Link TL-POE10E 10/100 Mbit/s Black

Network repeater TP-Link TL-POE10E 10/100 Mbit/s Black
60 mo.
Network repeater TP-Link TL-POE10E 10/100 Mbit/s Black
R848
The TP-Link TL-POE10E is a Fast Ethernet PoE+ extender designed to extend a PoE/PoE+ network connection beyond standard cable limits. Supporting 10/100 Mbit/s operation and compliant with IEEE 802.3i/802.3u standards, the device enables data transmission up to 250 m (in 10 Mbps mode up to 250 m, or ... Read More
Stock Out Of StockNo Stock Code 1729991 Brand TP-LINK Model TL-POE10E Warranty 5 Years

Shipping & Returns

The TP-Link TL-POE10E is a Fast Ethernet PoE+ extender designed to extend a PoE/PoE+ network connection beyond standard cable limits. Supporting 10/100 Mbit/s operation and compliant with IEEE 802.3i/802.3u standards, the device enables data transmission up to 250 m (in 10 Mbps mode up to 250 m, or 100 m in standard mode) from the PoE power source equipment. Housed in a durable black plastic casing and equipped with two RJ-45 ports, the TL-POE10E is suitable for extending network links and powering 802.3af/at devices in scenarios that require longer cable runs.

Advantages

The TL-POE10E increases reach of PoE and PoE+ networks without adding separate power lines, supports legacy and modern Ethernet speeds, and is compatible with IEEE 802.3af/at powered devices. Its compact plastic enclosure and RJ-45 interfaces simplify installation in surveillance and remote network deployments where extra distance is needed.

Suitable for

Key specifications

How to use

Connect the TL-POE10E to the PoE power source equipment using the RJ-45 host port, then connect the remote powered device (for example, an IP camera or access point) to the extender's output port. When extending beyond 100 m, select or confirm 10 Mbps mode to achieve the maximum extension distance. Ensure cable type and terminations meet 10/100Base-T(X) requirements for reliable operation.

Recommendations

For stable operation, use quality shielded or unshielded twisted-pair cabling certified for 10/100Base-T(X), avoid running cables near strong electrical interference sources, and verify compatibility with the powered device's PoE class (802.3af/at) to ensure sufficient power delivery.
Key Highlights
  • Extending PoE/PoE+ links to IP cameras and access points
  • Remote network points where power outlets are unavailable
  • Surveillance installations requiring longer cable runs
  • Data rate: 10/100 Mbit/s
  • Maximum extension distance: up to 250 m (10 Mbps mode)
  • Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3af/at compatible
  • Ports: 2 × RJ-45 (Ethernet LAN)
  • Colour: Black
  • Housing: Plastic
Specifications
Auto-negotiation
Yes
Cable types supported
Cat5e
Cabling technology
10/100Base-T(X)
Certification
FCC, CE, RoHS
Compliance certificates
Federal Communications Commission (FCC), RoHS
Data transfer rate
100 Mbit/s
Depth
26 mm
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
10,100 Mbit/s
Height
16 mm
Host interface
RJ-45
Housing material
Plastic
LED indicators
Power
Maximum transfer distance
250 m
Networking standards
IEEE 802.3i, IEEE 802.3u
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Plug and Play
Yes
Power over Ethernet (PoE) ports quantity
2
Product colour
Black
Quantity per pack
1 pc(s)
Quick start guide
Yes
RJ-45 input ports
1
RJ-45 output ports
1
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Type
Network repeater
Width
71 mm

Document

Open Document

Leaflet

Open Leaflet

Leaflet

Open Leaflet

Manual

Open Manual

Document

Open Document
