Omni-directional network antenna QuWireless QuSpot A360S — PoE/LAN, 6 dBi, 0.694–2.7 GHz, vertical polarization

QuWireless QuSpot A360S is an omni-directional network antenna designed for combined cellular and Wi‑Fi coverage with an integrated PoE/LAN connector and included RJ‑45 cable. The antenna covers multiple frequency ranges (0.694–0.96, 1.7–2.2, 2.2–2.7 and 2.4–2.5 GHz) with a maximum gain of 6 dBi and typical gains of approximately 2–4 dBi across bands. Vertical polarization and compact dimensions (160×160×240 mm) make the QuSpot A360S suitable for outdoor and indoor installations where uniform, all‑around coverage is required. The enclosure includes space to mount a compatible small router (for example Teltonika RUT360), delivering an integrated all‑in‑one solution for mobile and fixed connectivity.

Advantages

The QuSpot A360S integrates multi‑band LTE and Wi‑Fi omni antennas into a single weather‑resistant housing with a factory‑fitted PoE/LAN connector and supplied LAN cable, reducing the need for additional external components. Broad frequency coverage supports multiple cellular bands and Wi‑Fi simultaneously, while vertical polarization and omni radiation pattern provide uniform reception and transmission in 360 degrees. Compact form factor and dedicated mounting space for a compact router allow quick deployment for hotspot, small cell expansion, IoT gateway, or bridge use cases.

Suitable for

• Outdoor and indoor network coverage for premises, yards, and small campuses
• Small cell expansion and mobile broadband extension
• IoT gateways and machine‑to‑machine connectivity
• Wireless bridging for CCTV, remote sites, and temporary installations
• Mobile and recreational vehicles: yachts, boats, campers, RVs

Key specifications

• Frequency ranges: 0.694–0.96 GHz, 1.7–2.2 GHz, 2.2–2.7 GHz, 2.4–2.5 GHz
• Maximum gain: 6 dBi; typical gain across bands: ~2–4 dBi
• Polarization: vertical
• Radiation pattern: omni‑directional (360° horizontal coverage)
• Connector type: integrated PoE/LAN with included RJ‑45 cable
• Dimensions: 160 × 160 × 240 mm
• Enclosure: weather‑resistant housing suitable for outdoor use

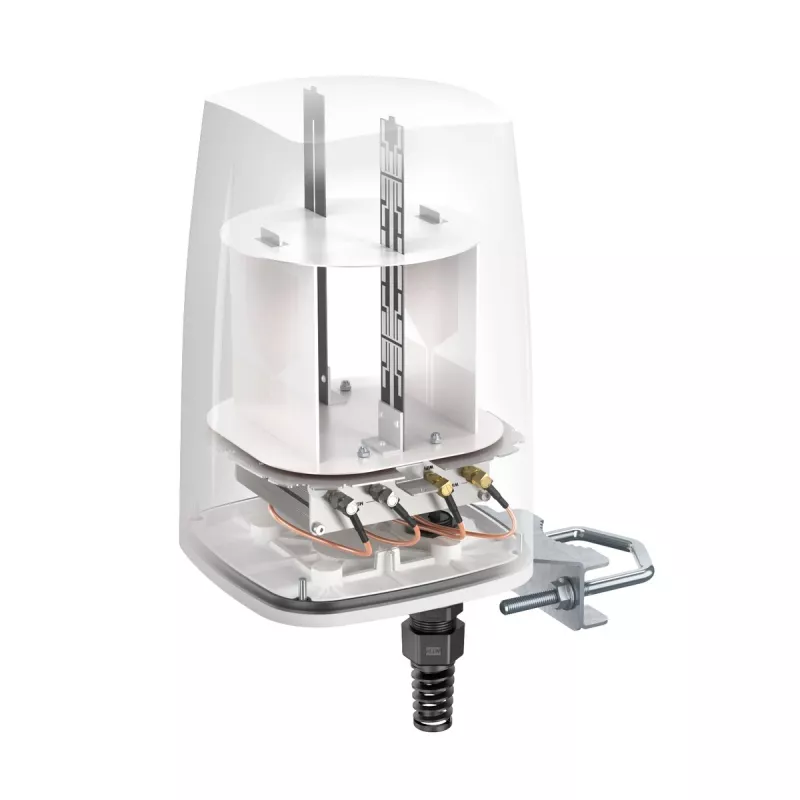

• Integrated Wi‑Fi antennas and multi‑band LTE elements

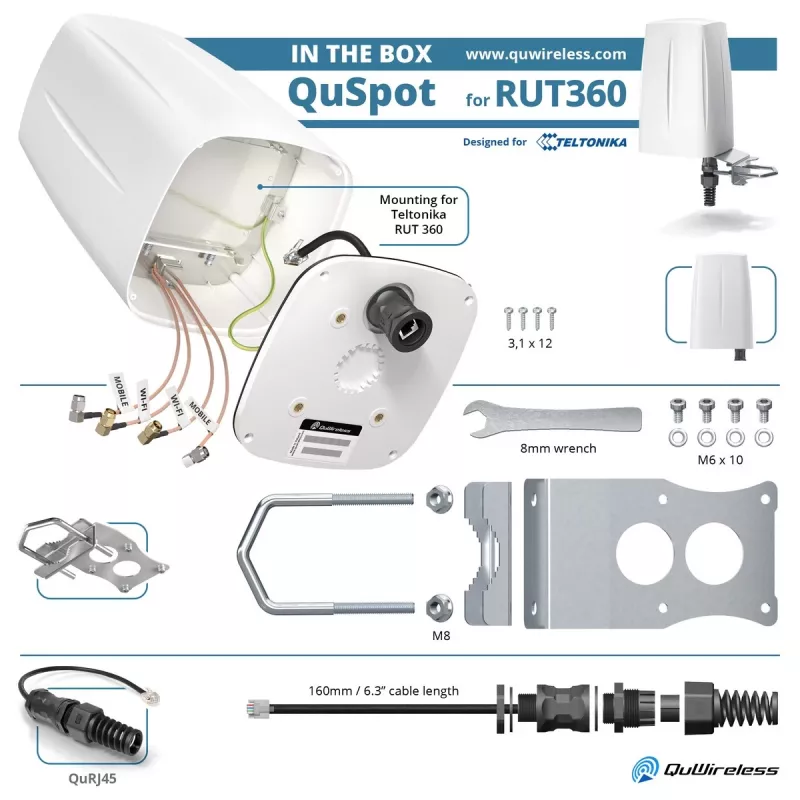

• Provision for installing a compact router inside the enclosure

How to use

Mount the QuSpot A360S on a mast, wall, or other stable structure with clear access to the area requiring coverage. Connect the integrated PoE/LAN connector to a PoE switch or injector using the supplied RJ‑45 cable to provide both power and data through a single cable. If installing a compatible compact router inside the enclosure, secure the device in the designated slot and route its Ethernet port to the internal PoE/LAN connector following the router manufacturer’s installation instructions. Position the antenna vertically for correct polarization and ensure the surrounding area is free from large metallic obstructions for optimal omni coverage.

Recommendations

For reliable performance, install the antenna at a height that reduces local obstructions and orient the enclosure so the vertical polarization aligns with the network it will serve. Use quality shielded Ethernet cabling for runs between the PoE injector and the antenna, and check local regulations for outdoor installations. When pairing with a compact router such as the Teltonika RUT360, verify firmware and configuration for cellular failover, Wi‑Fi settings, and security to match the intended application.
