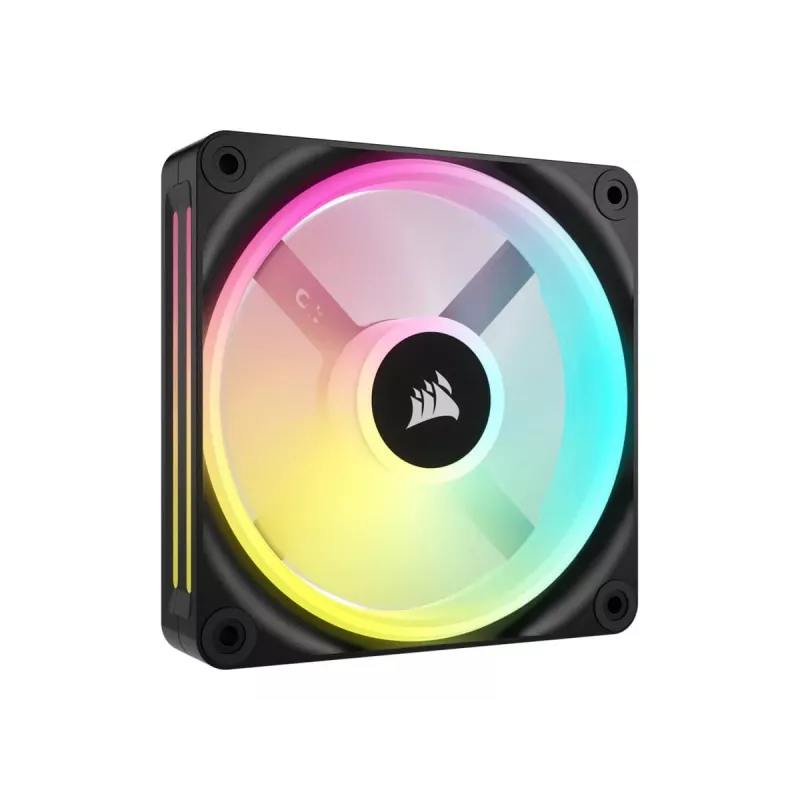

Fan Corsair CO-9051001-WW 12 cm Black White 480-2400 RPM

The CORSAIR iCUE LINK QX120 RGB 120mm PWM Fan Expansion Kit adds four-zone RGB lighting and smart fan features to an iCUE LINK system. This expansion fan requires an iCUE LINK System Hub (sold separately) and is compatible with CORSAIR iCUE software for centralized control of lighting, temperature readings, and fan behavior. The fan combines a black-and-white housing with a 120 mm diameter and PWM speed control for balanced cooling performance and aesthetics.

Advantages

This fan provides four distinct light zones with 34 RGB LEDs per fan for multi-angle illumination. Each smart fan contains a built-in temperature sensor and a dedicated MCU for improved monitoring and two-way communication with the iCUE LINK System Hub. PWM control supports speeds from 480 to 2400 RPM, offering a balance between airflow and noise, and Zero RPM mode allows the fan to stop spinning under low loads.

Suitable for

• Custom desktop PC builds requiring additional RGB lighting
• Gaming and high-performance systems needing improved case airflow
• Setups using CORSAIR iCUE LINK ecosystem and iCUE software

Key specifications

• Model: CO-9051001-WW
• Fan diameter: 120 mm
• Colour: Black and White
• Speed range: 480–2400 RPM (PWM)
• Airflow: up to 63.1 CFM
• Static pressure: 3.8 mm-H2O

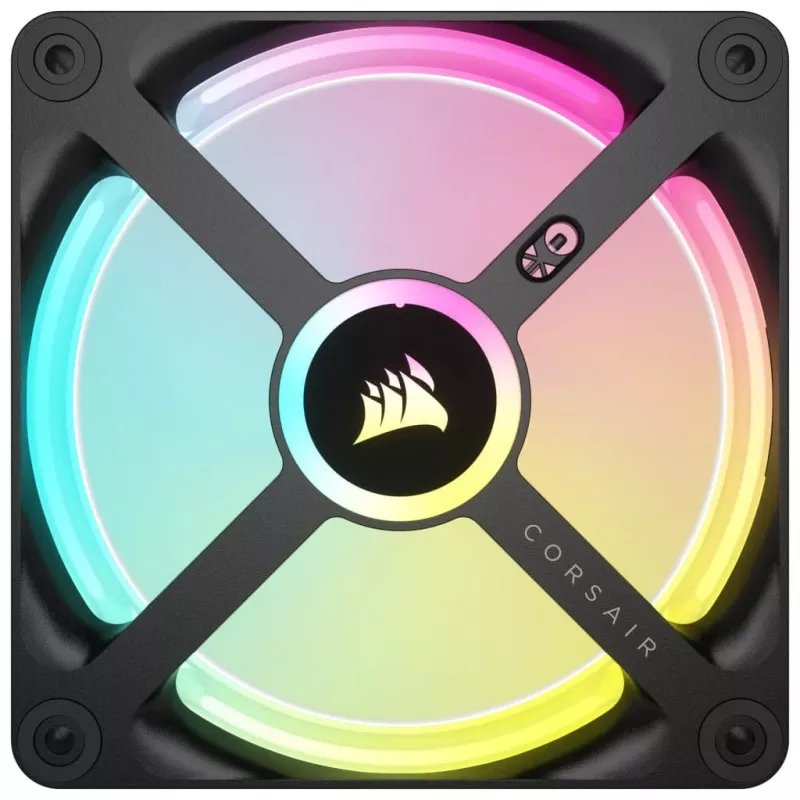

• Lighting: 34 RGB LEDs, four distinct light zones
• Features: built-in temperature sensor, dedicated MCU, Zero RPM support
• Requires: iCUE LINK System Hub (sold separately)

How to use

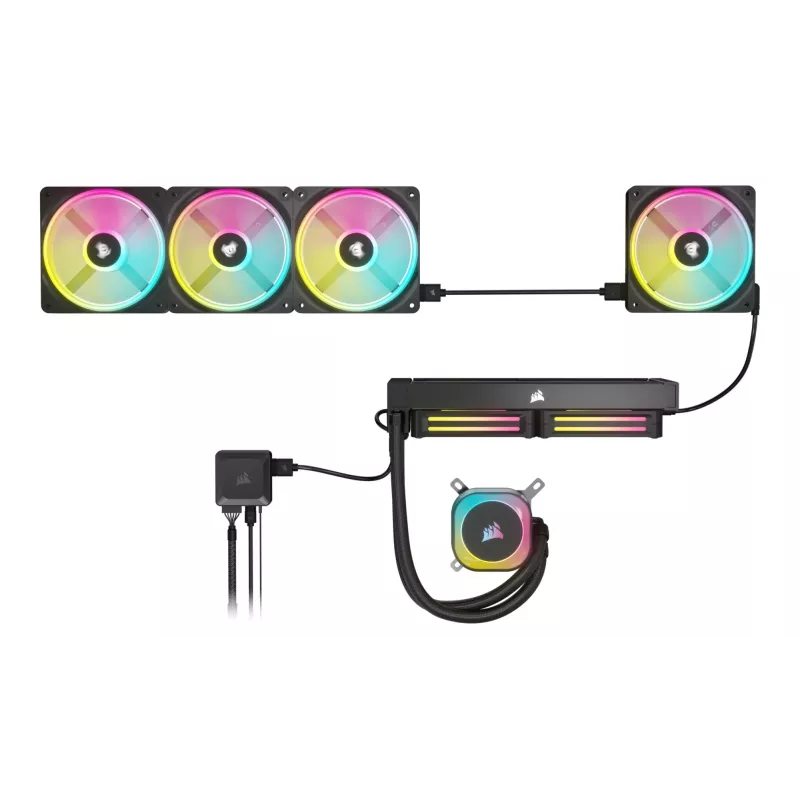

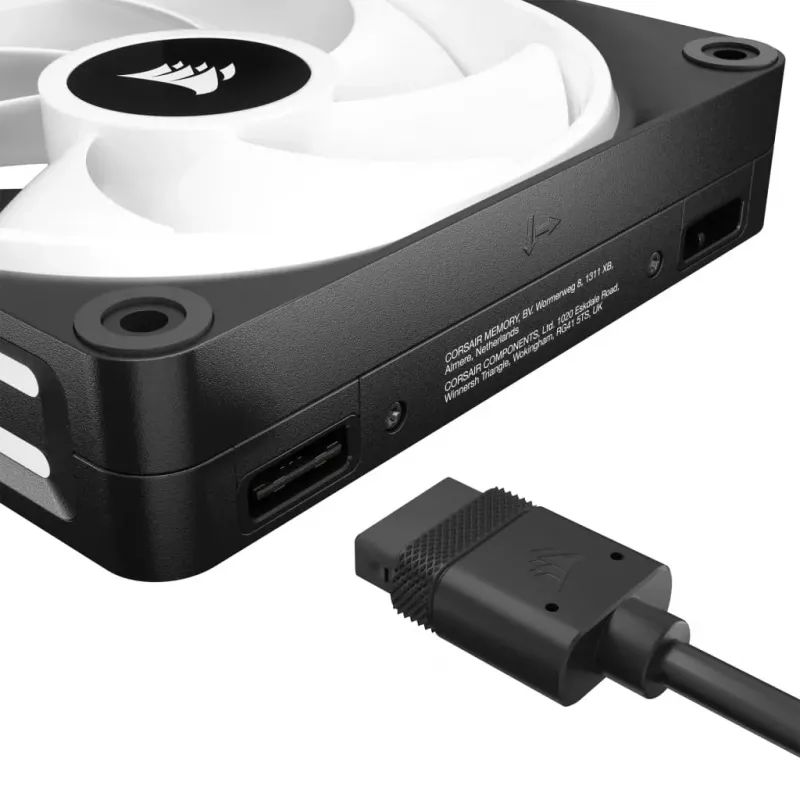

Install the 120 mm fan in a compatible fan mount inside your PC case and connect it into the iCUE LINK chain using the single-cable connector. Ensure the iCUE LINK System Hub is present and connected to your system. Use the CORSAIR iCUE software to detect the fan automatically, configure lighting zones, monitor temperature readings from the fan’s sensor, and set PWM speed curves or enable Zero RPM operation.

Recommendations

Use this fan as part of a chained iCUE LINK setup to minimize cable clutter and enable synchronized lighting. Verify compatibility with your case fan mounts and confirm you have an iCUE LINK System Hub before purchase.
