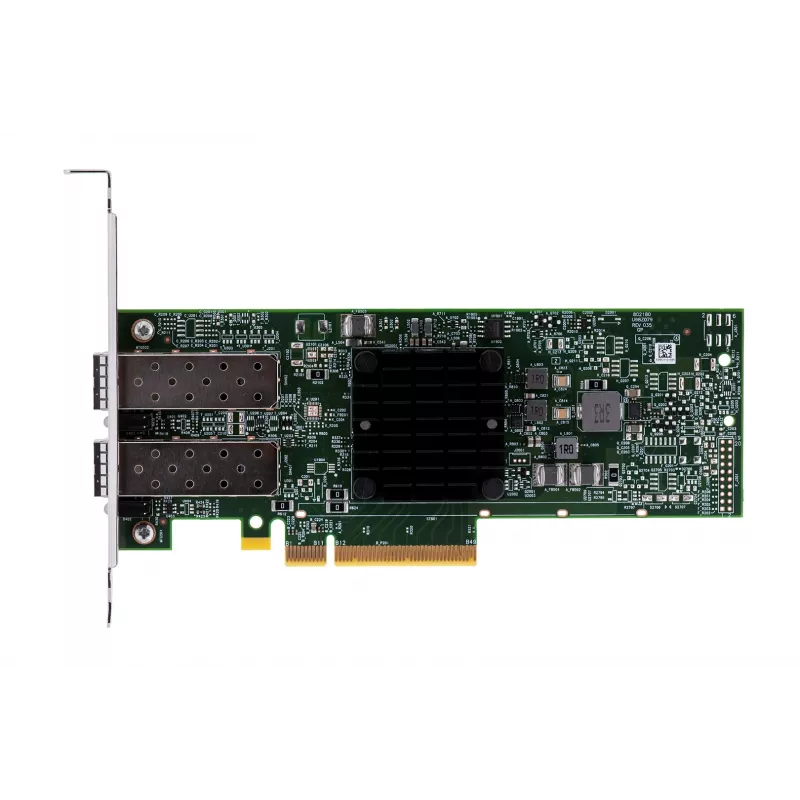

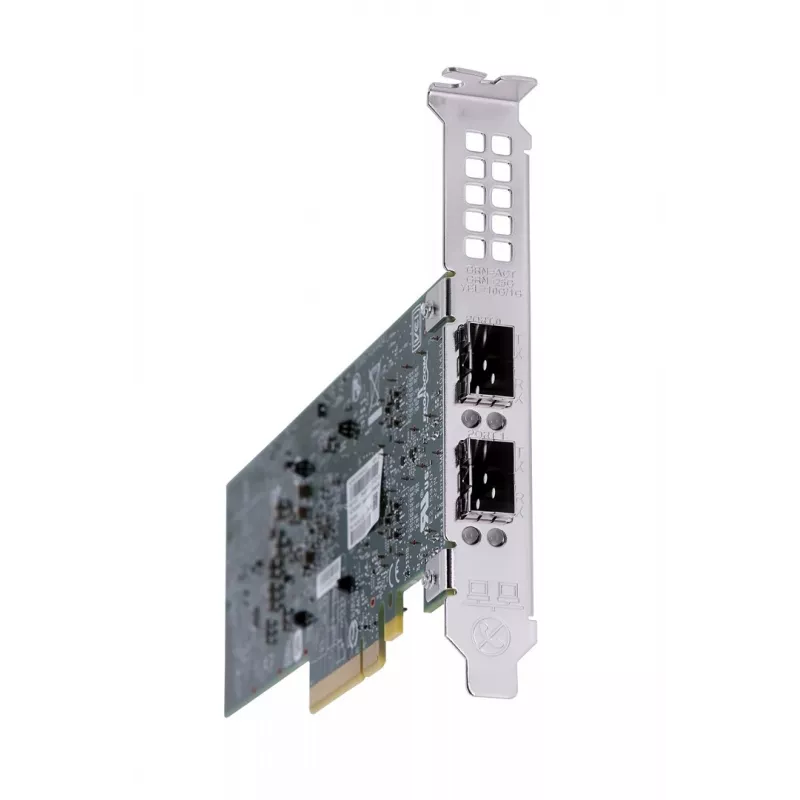

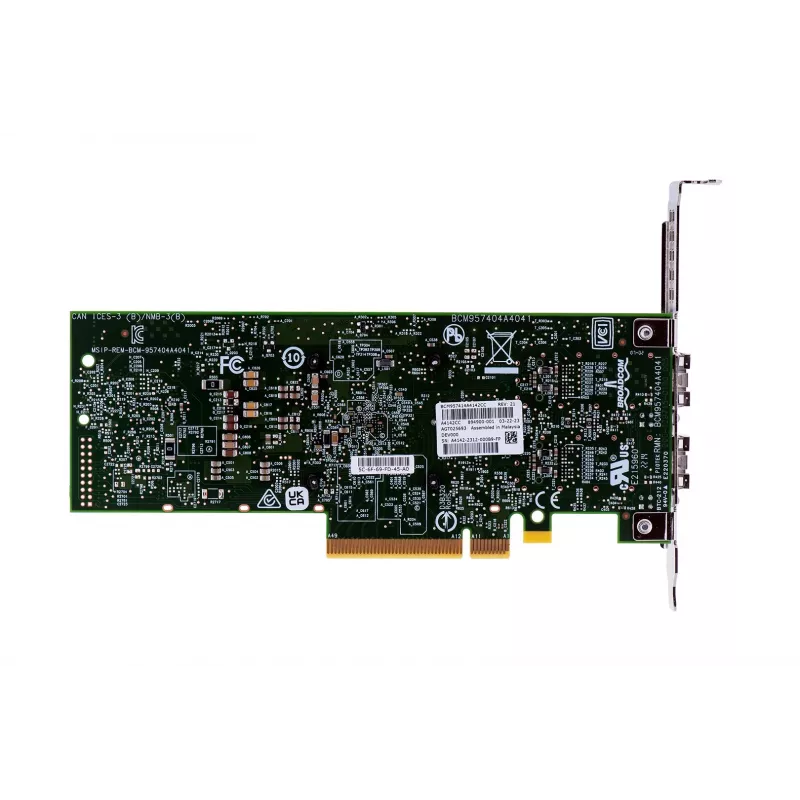

Network adapter BROADCOM BCM957414A4142CC internal PCI Express, wired, 25000 Mbit/s

The Broadcom Assy Top BCM957414A4142CC is a high-performance network adapter built on Broadcom’s scalable 10/25/50/100G NetXtreme‑E controller architecture. Designed for cloud and enterprise servers, this PCIe network card delivers wired connectivity with up to 25,000 Mbit/s throughput and supports advanced offload and tunneling features for optimized data-center networking.

Advantages

The NetXtreme‑E design provides advanced flow processing and hardware offloads that reduce CPU utilization and increase throughput for virtualized environments. On-chip processing for Geneve, VXLAN and NVGRE tunneling improves throughput up to 5× compared with software-only approaches and lowers CPU load by up to 90%. TruFlow technology enhances VM density by up to 50%, allowing more virtual machines per host while preserving CPU cycles for workloads. The adapter also supports RoCE, SDN and NFV features to enable scalable, feature-rich networking solutions for enterprise, cloud and telco deployments.

Suitable for

• Cloud servers and hypervisor hosts requiring high throughput
• Data-center applications using VXLAN/Geneve/NVGRE overlays
• Virtualized environments where CPU offload and increased VM density are needed
• Enterprise and telco networks deploying RoCE, SDN or NFV

Key specifications

• Brand: BROADCOM
• Model / MPN: BCM957414A4142CC
• Connectivity technology: Wired
• Host interface: PCI Express
• Maximum data transfer rate: 25000 Mbit/s
• Based on NetXtreme‑E 10/25/50/100G controller architecture

How to use

Install the adapter into an available PCI Express slot on a compatible server following the server manufacturer’s service manual. Configure firmware and drivers provided by Broadcom to enable offload and tunneling features (Geneve, VXLAN, NVGRE) as required by the operating system and hypervisor. Integrate the adapter into your networking stack and management tools to take advantage of RoCE, SDN and NFV capabilities.

Recommendations

Use the Broadcom BCM957414A4142CC in systems with up-to-date Broadcom drivers and firmware; enable hardware offloads and tunnel processing to maximize throughput and reduce host CPU usage. Validate compatibility with your hypervisor and network orchestration tools before deployment.
