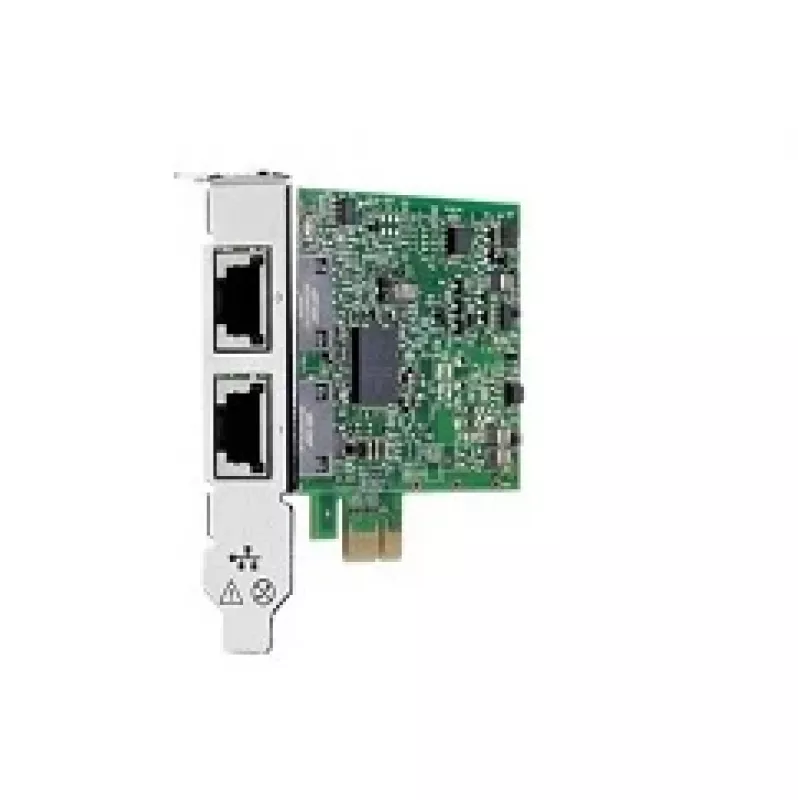

BROADCOM Bcm5720-2p Dual-port Ethernet Server Adapter - Pci-e

BROADCOM Bcm5720-2p Dual-port Ethernet Server Adapter - Pci-e
36 mo.
BROADCOM Bcm5720-2p Dual-port Ethernet Server Adapter - Pci-e
R1,844
Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.The BCM5720 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN ... Read More
Stock 100 Code 321576 Brand BROADCOM Model BCM95720A2003AC Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

The BCM5720 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5720 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5720 to support the VMWare® NetQueue and Microsoft® VMQ technologies.

The BCM5720 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.

Key Highlights
  • Standards-compliant dual-port 1GBASE-T PCIe networking adapter
  • Energy Efficient Ethernet compliant with IEEE Std 802.3az-2010
  • IEEE 802.3ap Clause 73 auto-negotiation
  • Dual 10/100/1000BASE-T full-duplex/half-duplex MACs
  • Virtualization support with VMware NetQueue and Microsoft VMQ
  • Wake-on-LAN support
  • Energy Efficient Ethernet (EEE)
Specifications
Component for
Server
Connectivity technology
Wired
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
100,1000 Mbit/s
Harmonized System (HS) code
85176990
Host interface
PCI Express
Interface
Ethernet
Internal
Yes
LAN controller
Broadcom BCM5720
Linux operating systems supported
Yes
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.1as, IEEE 802.3ap, IEEE 802.3az
Other operating systems supported
Yes
PCI version
2.0
Product colour
Green
Wake-on-LAN ready
Yes
Windows operating systems supported
Yes

Leaflet

Open Leaflet
Price history over the last 6 months
BROADCOM Bcm5720-2p Dual-port Ethernet Server Adapter - Pci-e
Current
R1,844
Lowest
R1,741
Highest
R2,219
Change 24H
+R75   +4%
Week
+R96   +5%
Month
+R103   +6%
