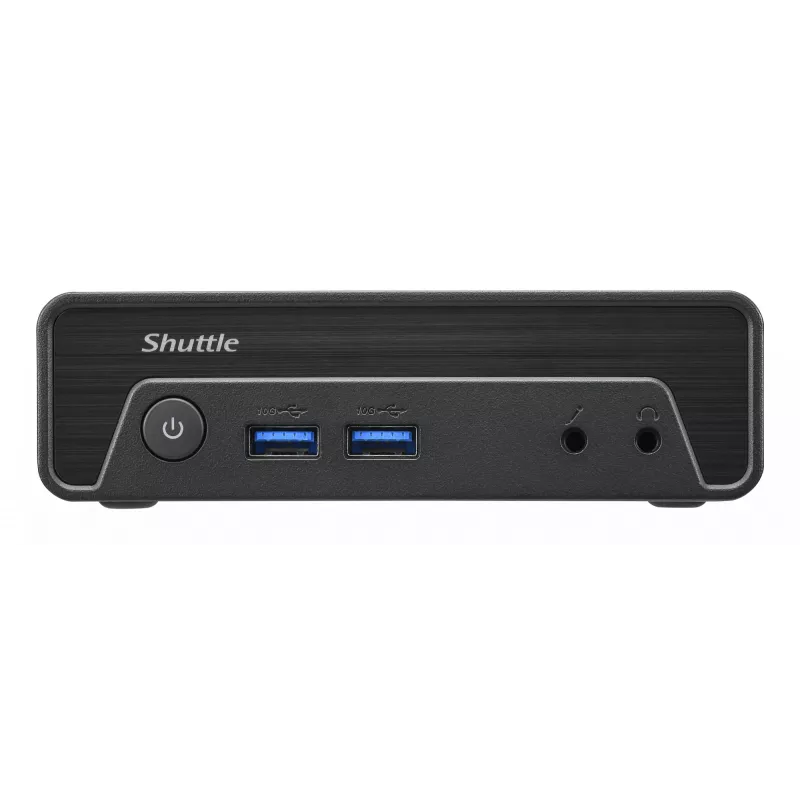

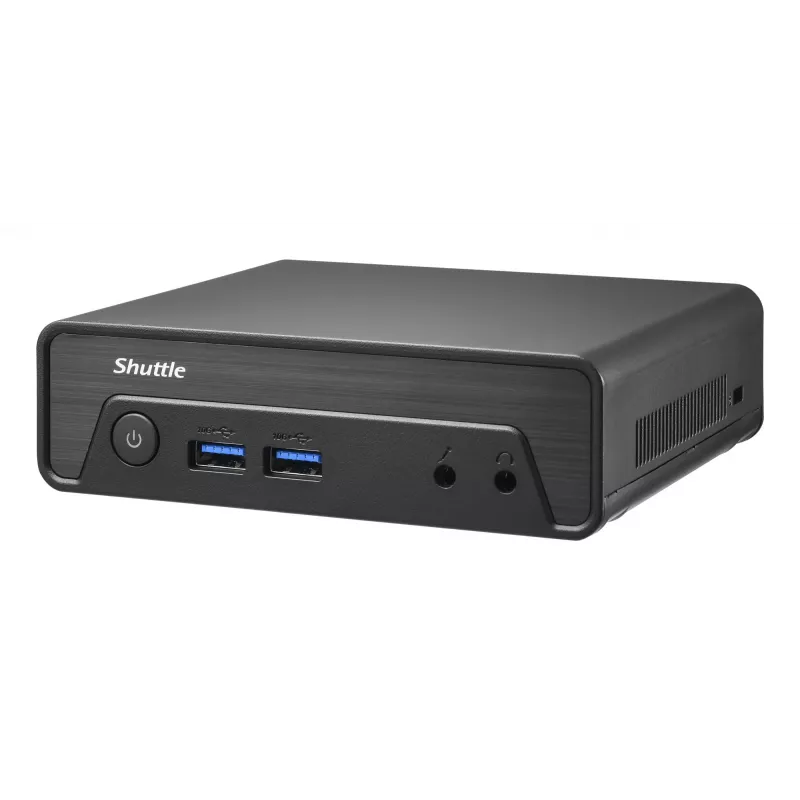

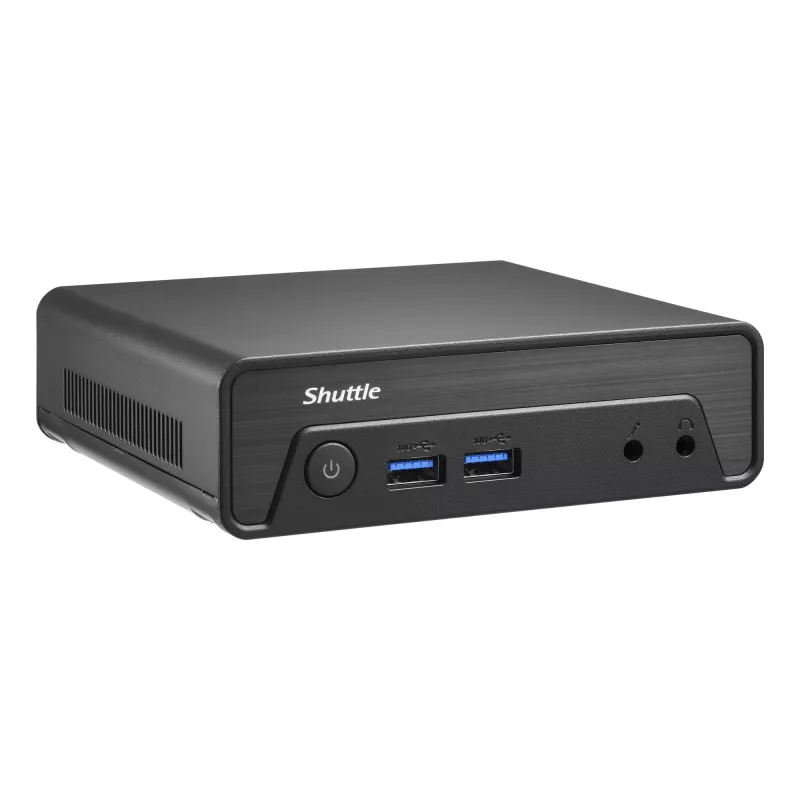

Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro

Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
Mini PC Shuttle NE1010BA Intel N100 8GB DDR4 128GB SSD Windows 11 Pro
R9,830
The Shuttle NE1010BA is a fully configured Nano-form-factor PC based on Shuttle's fanless NE10N barebone, equipped with an Intel N100 (Alder Lake-N) processor, 8 GB DDR4 memory, 128 GB SSD and Windows 11 Pro. With a compact chassis (135 x 115 x 39 mm, ~600 ml) it remains silent and supports 24/7 con... Read More
Stock 2 Code 2399663 Brand SHUTTLE Model NE1010BA Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 13
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

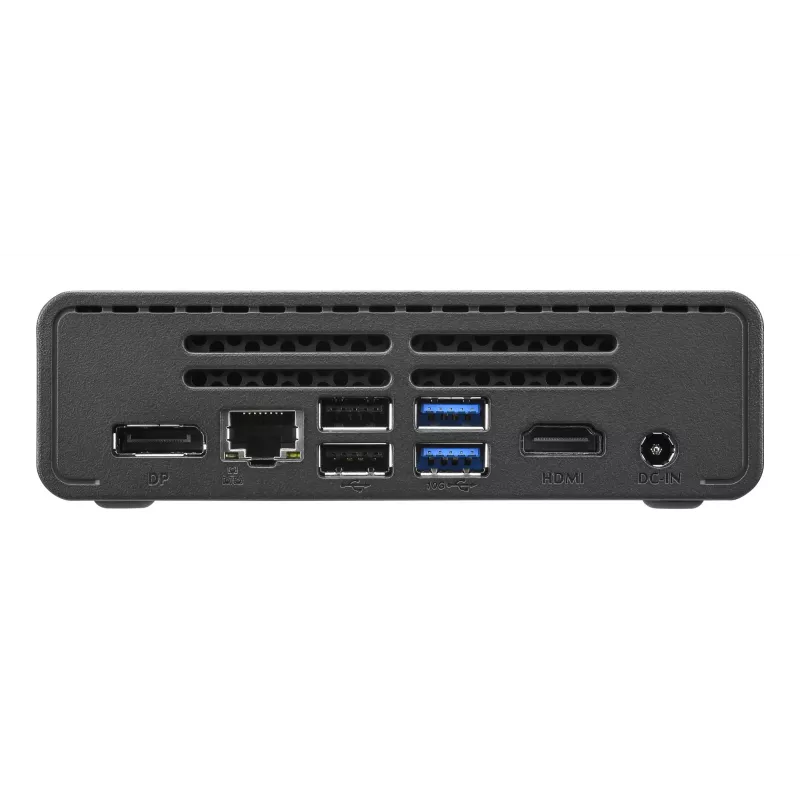

The Shuttle NE1010BA is a fully configured Nano-form-factor PC based on Shuttle's fanless NE10N barebone, equipped with an Intel N100 (Alder Lake-N) processor, 8 GB DDR4 memory, 128 GB SSD and Windows 11 Pro. With a compact chassis (135 x 115 x 39 mm, ~600 ml) it remains silent and supports 24/7 continuous operation while offering a wide range of connections including HDMI and DisplayPort for up to two UHD (4K/60Hz) displays, multiple USB ports, Gigabit Ethernet and Wi‑Fi 6 with Bluetooth 5.2.

Advantages

The system provides a balance of energy efficiency and performance using the Intel N100 processor, passive cooling for silent operation, and a small footprint that fits space-constrained environments. Preinstalled Windows 11 Pro and included RAM and SSD make it ready to use out of the box. Support for two 4K displays and multiple network options increases versatility for business and embedded applications.

Suitable for

Key specifications

How to use

Place the mini PC on a stable, flat surface with adequate ventilation around the chassis. Connect power, displays via HDMI or DisplayPort, and peripherals via USB. Use the preinstalled Windows 11 Pro to complete initial setup, configure network connections, and install required applications. For multi-display setups, attach both displays and configure resolution and layout in Windows display settings to enable up to two UHD (4K/60Hz) outputs.

Recommendations

For reliable long-term operation, ensure the ambient temperature and ventilation meet standard equipment guidelines, avoid blocking vents, and use a quality external power supply. Keep firmware and Windows updates current and consider using an external storage or backup solution if larger or redundant storage is required.

Key Highlights
  • Digital signage and kiosk systems
  • Point-of-sale (POS) terminals
  • Control and automation stations
  • Office workstations and home office setups
  • Light multimedia playback and information displays
  • Model: Shuttle NE1010BA
  • Processor: Intel N100 (Alder Lake‑N), up to 3.4 GHz boost, 4 cores
  • Memory: 8 GB DDR4‑SDRAM (1 x 8 GB)
  • Storage: 128 GB SSD
  • Graphics: Intel UHD Graphics
  • Operating system: Windows 11 Pro 64-bit
  • Networking: Gigabit Ethernet, Wi‑Fi 6 (802.11ax), Bluetooth 5.2
  • Dimensions: 135 x 115 x 39 mm; weight ≈ 0.6 kg
  • Cooling: Fanless; rated for 24/7 continuous operation
  • Colour: Black
Specifications
Antenna design
Internal
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.2
Cable lock slot
Yes
Cable lock slot type
Kensington
Chassis type
Slim PC
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
DC-in jack
Yes
Depth
135 mm
Discrete graphics card
No
Discrete graphics card model
Not available
Display included
No
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Harmonized System (HS) code
84714900
HDMI ports quantity
1
HDMI version
2.0
Headphone outputs
1
Height
39 mm
Housing material
Plastic
Internal memory
8 GB
Internal memory type
DDR4-SDRAM
M.2 SSD size
2280 (22 x 80 mm)
Market positioning
Business
Maximum internal memory
16 GB
Memory channels
Single-channel
Memory data transfer rate
3200 MT/s
Memory layout (slots x size)
1 x 8 GB
Memory slots
1x SO-DIMM
Microphone in
Yes
Number of SSDs installed
1
Number of storage drives installed
1
On-board GPU manufacturer
Intel
On-board graphics card
Yes
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics
Operating relative humidity (H-H)
10 - 90%
Operating system architecture
64-bit
Operating system installed
Windows 11 Pro
Operating temperature (T-T)
0 - 40 °C
Optical drive type
No
Package weight
1.5 kg
Power supply
65 W
Power supply input frequency
50/60 Hz
Power supply input voltage
100 - 240 V
Processor boost frequency
3.4 GHz
Processor cache
6 MB
Processor cache type
Smart Cache
Processor cores
4
Processor family
Intel® N
Processor manufacturer
Intel
Processor model
N100
Processor threads
4
Product colour
Black
Product type
Mini PC
SSD capacity
128 GB
SSD form factor
M.2
SSD interface
SATA III
Storage media
SSD
Sustainability certificates
ENERGY STAR, ErP
Thunderbolt 3 ports quantity
0
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Total SSDs capacity
128 GB
Total storage capacity
128 GB
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VESA mounting
Yes
Volume
0.6 L
Weight
600 g
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width
115 mm
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6 AX200

Document

Open Document

Leaflet

Open Leaflet

Manual

Open Manual
