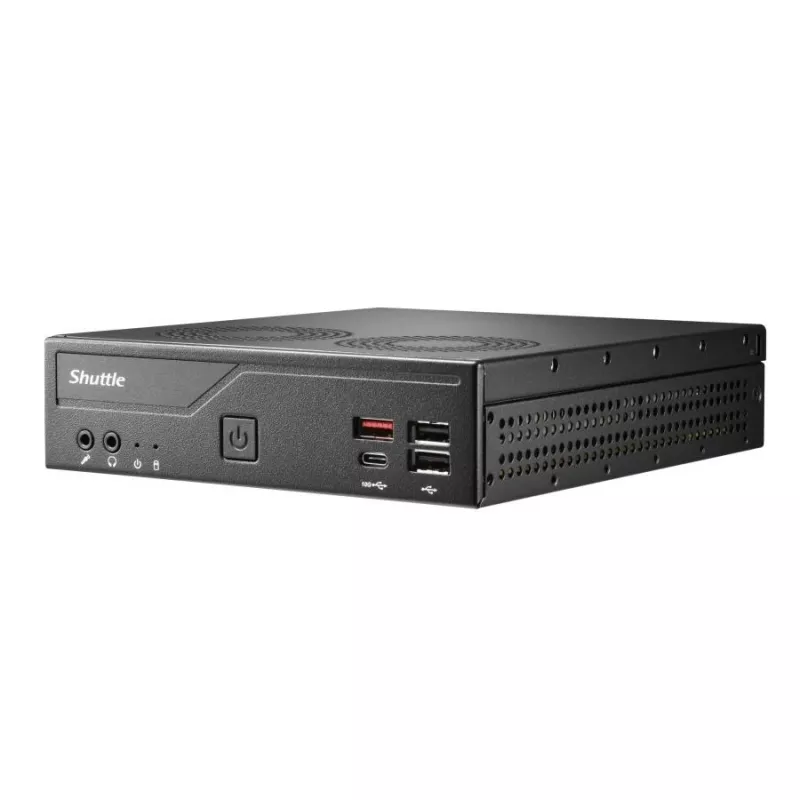

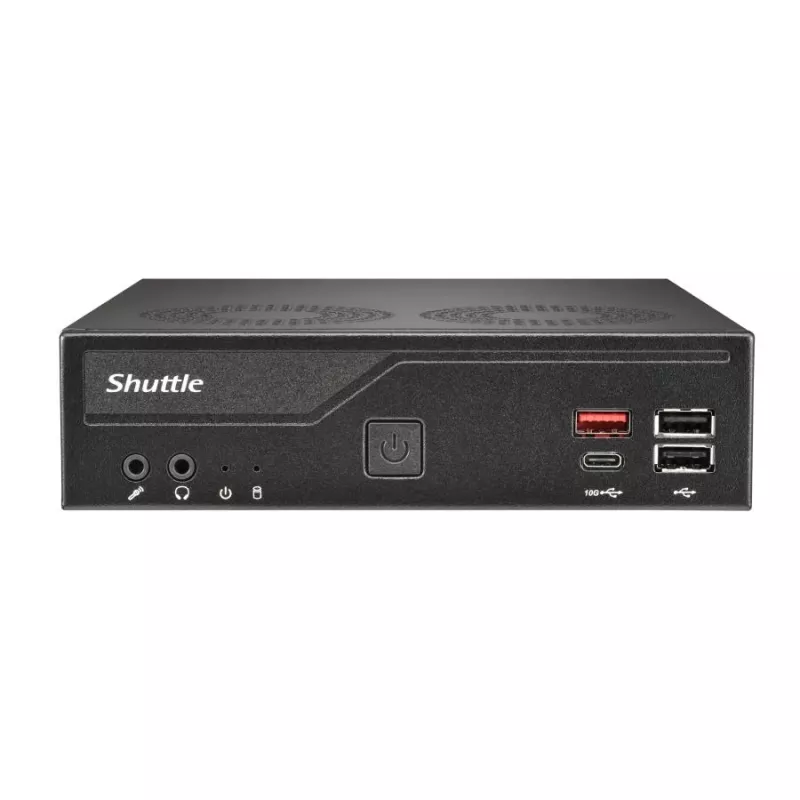

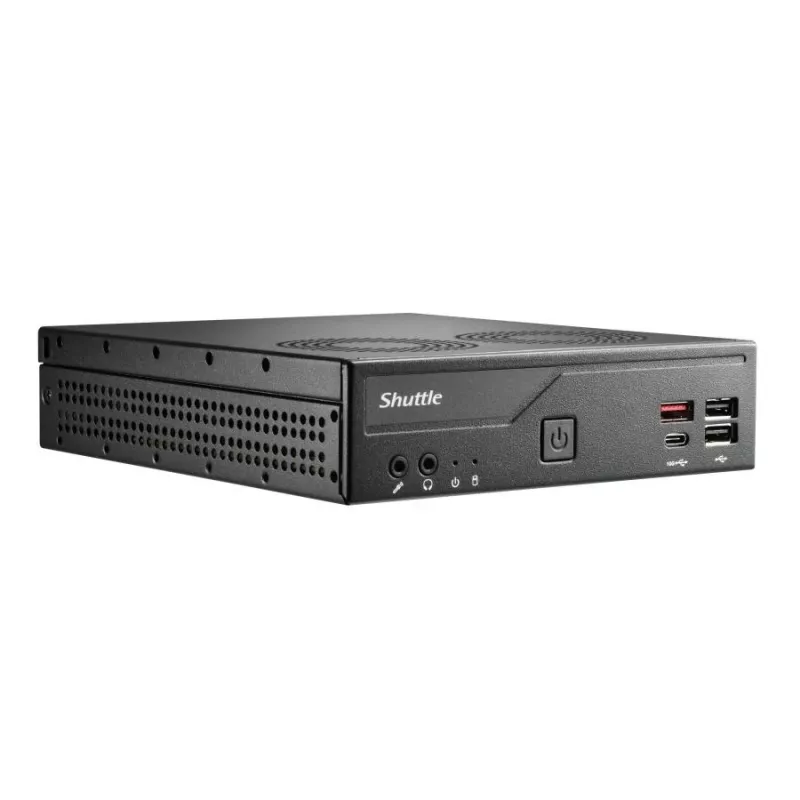

Shuttle DH810S Slim PC Barebone, LGA1150, Intel H81, DDR3L, HDMI, DP, M.2, Dual GbE, 8x USB, COM, 24/7

Dual Gigabit Ethernet and 24/7 rated operation make the Shuttle DH810S a reliable foundation for always-on digital signage, kiosk, or thin client deployments. This slim barebone supports 4th generation Intel Core processors on the LGA1150 socket with the Intel H81 Express chipset, delivering efficient performance in a compact 1.3-liter chassis.

Overview

The Shuttle DH810S is a versatile slim PC barebone built for continuous operation. It accommodates Intel Core i3/i5/i7, Pentium, and Celeron processors (Haswell/Broadwell) up to 65W TDP, with two DDR3L SO-DIMM slots supporting up to 16GB of memory. Storage options include a 2.5-inch SATA bay and an M.2 2242 slot for SATA SSDs, enabling fast boot and responsive applications.

What stands out

• Dual Intel Gigabit LAN ports (i211AT and i218LM) for network redundancy or segmentation.
• Fanless-capable heat pipe cooling with smart fan for quiet operation under load.
• Rich connectivity: HDMI, DisplayPort, 8 USB ports (2x USB 3.0 front, 6x USB 2.0), RS232 COM port.
• Half-size Mini PCIe slot for optional Wi-Fi/Bluetooth module.
• External 90W power adapter keeps the chassis compact and heat low.

Technical details

• Processor socket: LGA1150 (supports Intel 4th Gen Core, Pentium, Celeron).
• Chipset: Intel H81 Express.
• Memory: 2x DDR3L SO-DIMM slots, max 16GB (2x 8GB).
• Video outputs: 1x HDMI 1.4a, 1x DisplayPort 1.2 (dual independent displays).
• Storage: 1x 2.5" SATA HDD/SSD bay, 1x M.2 2242 slot (SATA interface).
• Networking: 2x Gigabit Ethernet (Intel i211AT + i218LM).
• USB: 2x USB 3.0 (front), 6x USB 2.0 (4x rear, 2x internal).
• Serial: 1x RS232 COM port.
• Audio: Realtek ALC662 HD Audio.
• Expansion: 1x half-size Mini PCIe (for WLAN/BT).
• Power: External 90W AC adapter.
• OS Support: Windows 7/8/10, Linux.
• 24/7 operation: Yes.

Our verdict

With dual LAN, 24/7 reliability, and a compact footprint, the Shuttle DH810S is an excellent choice for embedded and always-on applications where space and uptime are critical.
