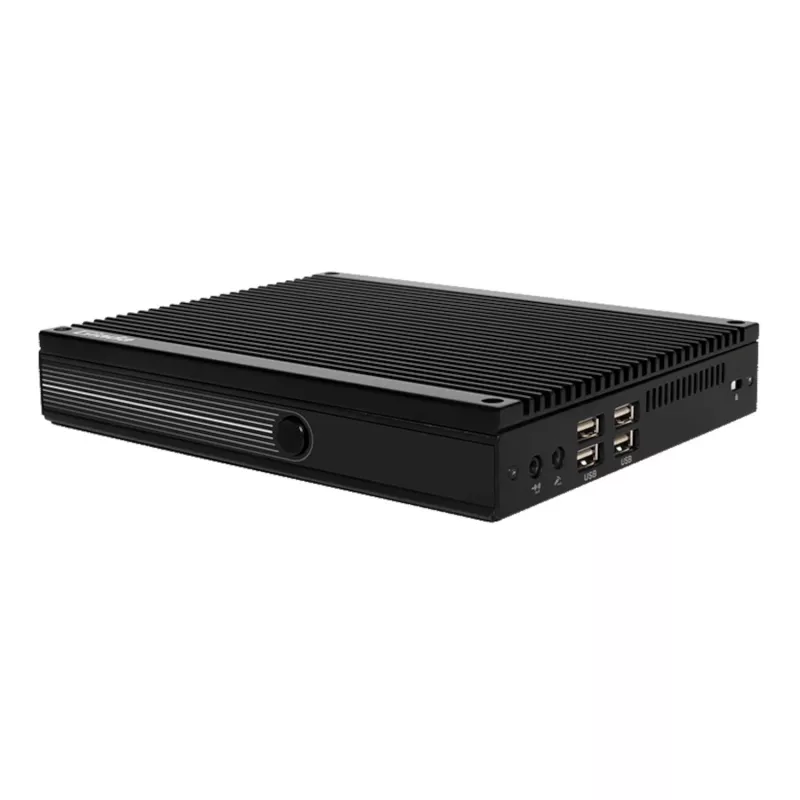

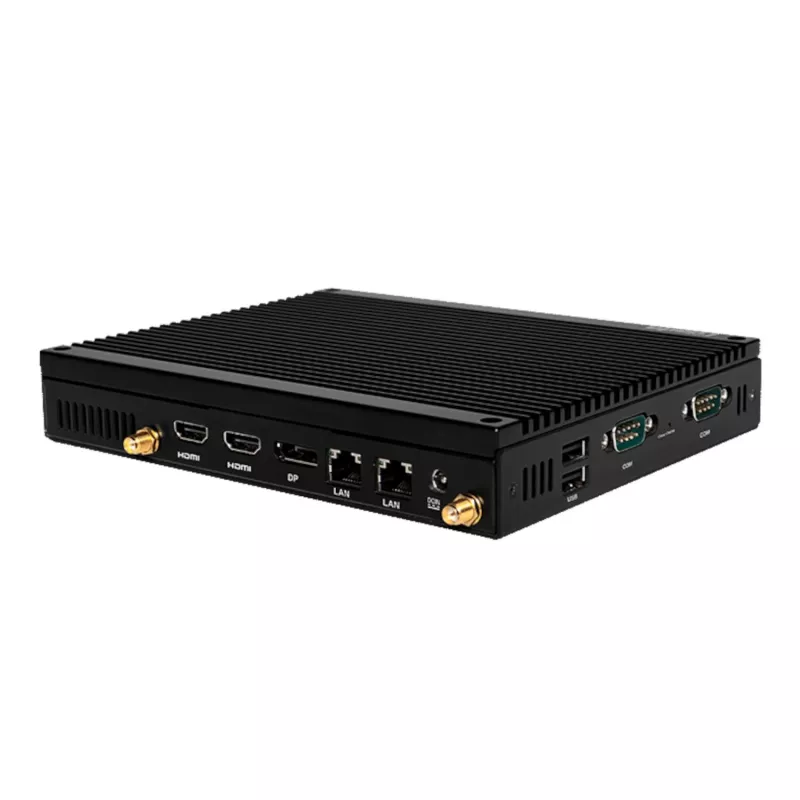

Giada F109D Fanless Embedded Computer with Intel Celeron J4125, 8GB RAM, Dual GbE, Triple Display, VESA Mount, Black

Traditional embedded computers often rely on active cooling, introducing dust accumulation, fan failure risks, and audible noise that compromise reliability in industrial and always-on environments. The Giada F109D eliminates these concerns with a fanless, aluminum-alloy chassis that dissipates heat silently while protecting internal components from particulate ingress. Powered by the Intel Celeron J4125 quad-core processor, this compact system delivers dependable performance for digital signage, kiosk, thin client, and industrial automation applications where 24/7 uptime is non-negotiable.

Who is it for

System integrators, retail solution providers, and industrial engineers seeking a durable, low-maintenance computing platform. The F109D is ideal for projects requiring silent operation, wide connectivity, and flexible mounting in constrained spaces—from behind monitors via VESA to inside equipment cabinets.

Main features

• Fanless thermal design with aluminum alloy chassis for silent, dust-resistant operation
• Intel Celeron J4125 quad-core processor (2.0 GHz base, up to 2.7 GHz burst) with Intel UHD Graphics 600
• Triple display support via HDMI 2.0, DisplayPort 1.2, and VGA, each capable of 4K@60Hz (HDMI/DP)
• Dual Gigabit Ethernet ports (Intel I211-AT) for reliable network redundancy or segmentation
• Rich I/O: 2 x USB 3.0, 4 x USB 2.0, 2 x RS232, 2 x RS232/RS485, audio line-out and mic-in
• Expandable storage: 1 x M.2 slot for SSD, 1 x SATA 3.0 for 2.5" HDD/SSD, plus optional M.2 Wi-Fi/Bluetooth

Specifications

• Processor: Intel Celeron J4125 (Quad-Core, 2.0 GHz base, up to 2.7 GHz burst)
• Graphics: Intel UHD Graphics 600
• Memory: 1 x DDR4 SO-DIMM Slot, supports up to 8GB at 2400MHz
• Storage: 1 x M.2 (2242/2280) for SSD, 1 x SATA 3.0 for 2.5" HDD/SSD
• Video Output: 1 x HDMI 2.0 (4K@60Hz), 1 x DisplayPort 1.2 (4K@60Hz), 1 x VGA (Triple Display Support)
• LAN Ports: 2 x Gigabit Ethernet (Intel I211-AT)
• USB Ports: 2 x USB 3.0, 4 x USB 2.0
• Serial Ports: 2 x RS232, 2 x RS232/RS485
• Audio: Line-out, Mic-in (Realtek ALC662)
• Wireless Connectivity: 1 x M.2 (2230) for Wi-Fi/Bluetooth Module (Optional)
• Cooling System: Fanless Design
• Operating System Support: Windows 10, Linux
• Power Input: DC 12V
• Chassis Material: Aluminum Alloy
• Mounting Options: VESA Mount Support
• Operating Temperature: 0°C to 40°C
• Security Features: Watchdog Timer, TPM 2.0 (Optional)

Tips

For optimal performance, pair the F109D with a high-quality M.2 SSD and consider adding a Wi-Fi module for wireless deployments. Its VESA mount makes it easy to hide behind displays, keeping workspaces clean and secure.
