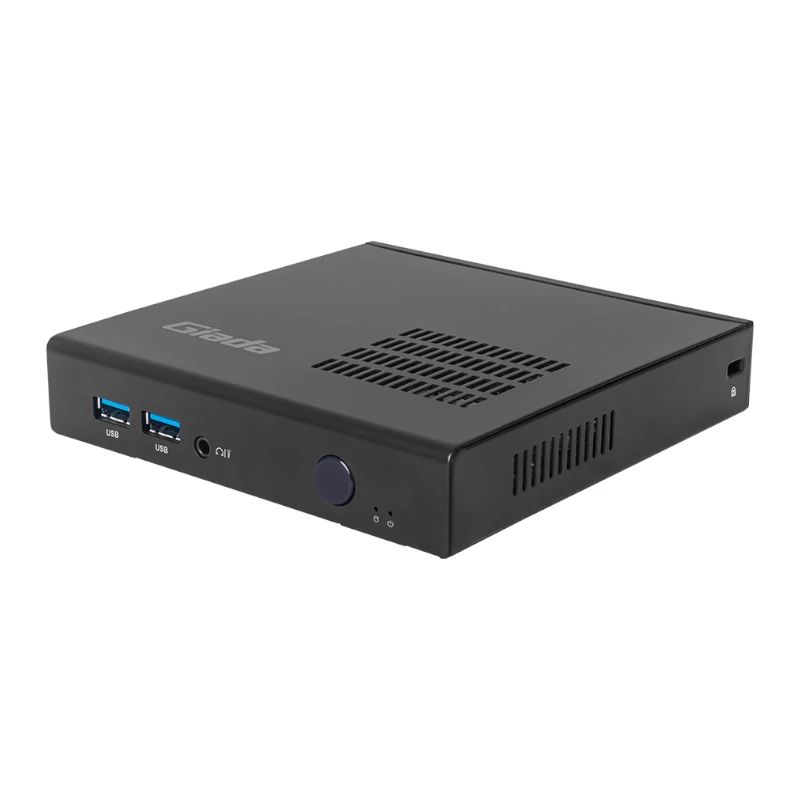

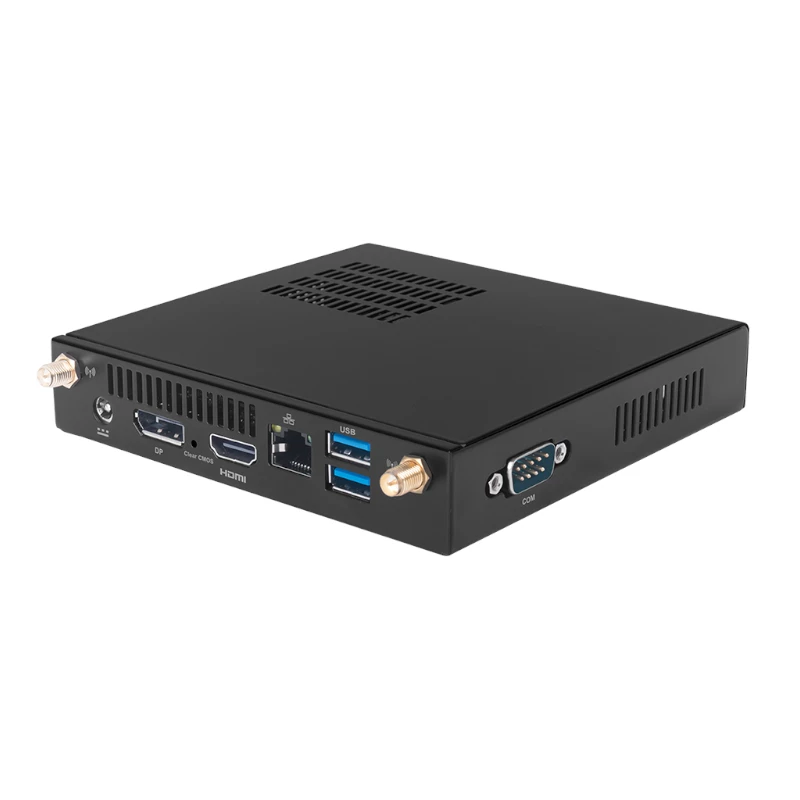

Giada DK310 Mini PC, Celeron J6412, 4GB

The Giada DK310 is an ultra-slim signage player powered by an Intel Celeron J6412 processor with 4 GB onboard LPDDR4-2666 memory. It features Intel UHD Graphics and supports dual UHD video playback via HDMI 2.0a and DisplayPort 1.2. The compact metal chassis measures 13 x 12.9 x 2.5 cm and runs Windows 11.

Key features

• Intel Celeron J6412 processor (4 cores, 2.60 GHz, 10W TDP)
• 4 GB onboard LPDDR4-2666 memory
• Intel UHD Graphics with DirectX, OpenGL, OpenCL, Intel Quick Sync Video
• Supports dual 1080p or dual UHD video playback via HDMI 2.0a and DisplayPort 1.2
• Wi-Fi/BT module support via E-Key M.2 (2230), Wi-Fi 5 and Wi-Fi 6
• Small form factor design with metal construction

Specifications

• Brand: Giada
• MPN: DK310-J641242M0G-GIA
• Operating system installed: Windows 11
• Ethernet LAN: Yes
• CPU: Intel Celeron J6412 processor
• CPU frequency: 2.60 GHz
• Chipset: SoC
• CPU processing units: 4 cores
• CPU TDP: 10W
• System memory: 4 GB onboard LPDDR4-2666MHz
• Storage: 1 x Full-size Mini-PCIe for MSATA
• GPU: Intel UHD Graphics
• Graphic engine: DirectX, OpenGL, OpenCL, Intel Quick Sync Video
• Multi-media: 4kp60 8-bit H.264 decode, 4kp60 8-bit and 10-bit H.265/HEVC decode, up to 4kp60 VC1, VP8, VP9 decode, 1080p60 MPEG2 decode
• Display interface: 1 x DP (Max. 3840 x 2160 @60 Hz), 1 x HDMI (Max. 3840 x 2160 @60 Hz)
• Network controller: 1 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet interface: 1 x RJ45
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, support Wi-Fi 5, Wi-Fi 6
• USB: 4 x USB3.2 Gen2 (10Gbps)
• Serial port: 1 x RS232
• Audio: 1 x 2-in-1 headset (MIC-IN & AUDIO-OUT)
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x connector for Wi-Fi/BT
• Watchdog timer: Yes
• Auto power on: Yes
• RTC: Set up independently every day, a week as a cycle
• Power requirement: DC-IN, 19 V/2.37 A
• Construction: Metal
• Operating system support: Windows 10 (64bit) / Windows 11 (64bit) / Linux Ubuntu (64bit)
• Product dimensions: 13 x 12.9 x 2.5 cm
