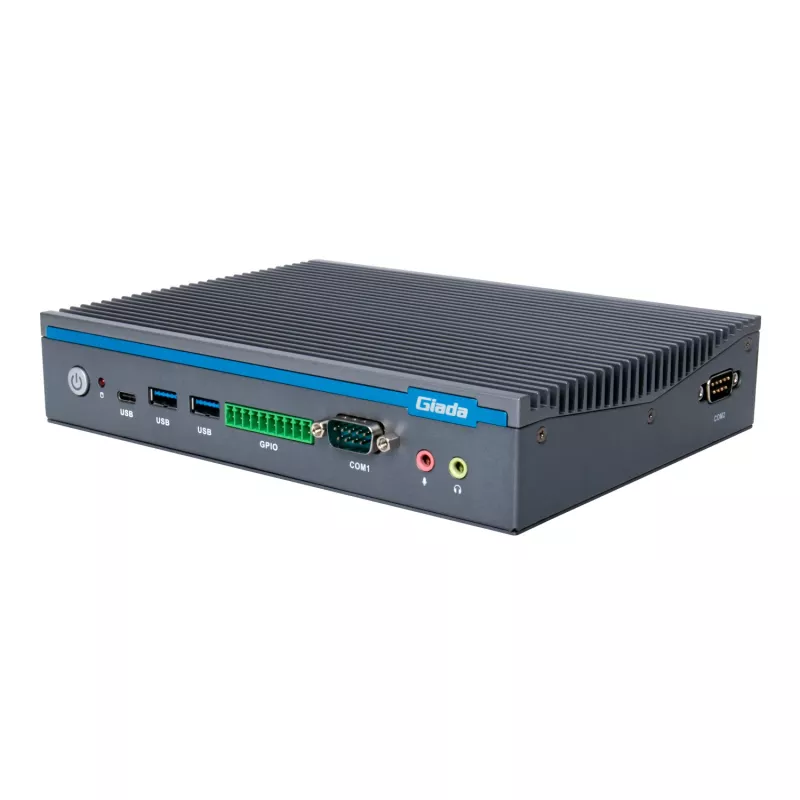

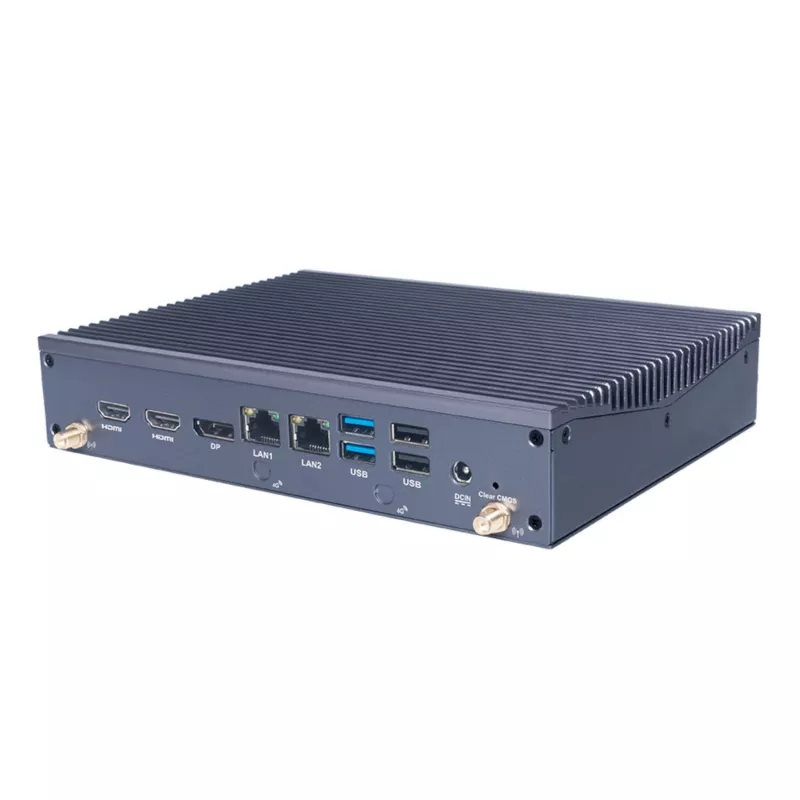

Giada DF613-I Intel Core i5-1335U Fanless Mini PC Barebone, 4x 4K Display, Dual GbE, DDR5, 2x M.2, VESA Mount, No RAM/Storage/OS

In busy retail stores, airport terminals, and factory floors, a digital signage player must run 24/7 without noise or failure. The Giada DF613-I meets that demand with a fanless chassis and a 13th Gen Intel Core i5-1335U processor. It drives four independent 4K displays from a compact, VESA-mountable body, making it a reliable engine for video walls, menu boards, and industrial HMIs.

Key specifications

• Intel Core i5-1335U (13th Gen Raptor Lake-U, 10 cores, 12 threads, up to 4.6 GHz)
• Integrated Intel Iris Xe Graphics with 4 independent display outputs: 2x HDMI 2.0 + 2x DisplayPort 1.4, all supporting 4K@60Hz
• Dual-channel DDR5-4800 SO-DIMM, 2 slots, up to 64 GB (barebone – no RAM included)
• Storage: 1x M.2 2280 PCIe Gen4x4 NVMe + 1x M.2 2242 SATA (barebone – no storage included)
• Network: 2x Gigabit Ethernet RJ45; M.2 slot for optional Wi-Fi/Bluetooth module
• Ports: 4x USB 3.2 Gen2 Type-A, 2x USB 2.0 Type-A, 2x RS232/RS485 selectable
• Fanless passive cooling, 0 dB noise, 0–50°C operating temperature
• Power input: DC 12–19V; VESA mount (75x75mm, 100x100mm)
• OS support: Windows 10/11, Linux (no OS preinstalled)

Why choose it

This barebone mini PC gives integrators complete freedom to configure RAM, storage, and OS for each deployment. The fanless design eliminates dust ingress and moving parts, cutting maintenance in harsh or silent environments. With four native 4K outputs and dual Gigabit LAN, it handles multi-screen signage and network redundancy without extra adapters.

Ideal use cases

• Digital signage and video walls in retail, hospitality, and transportation
• Industrial automation and machine vision with serial device connectivity
• Kiosks and self-service terminals requiring 24/7 fanless operation
• Edge computing and IoT gateways with dual Ethernet failover

Good to know

The DF613-I is a barebone unit: RAM, storage, and operating system are not included. A compatible Wi-Fi/Bluetooth module can be added via the internal M.2 slot. The wide 12–19V DC input allows use with existing power infrastructure. All display outputs are active simultaneously, enabling four independent screens from a single compact device.
