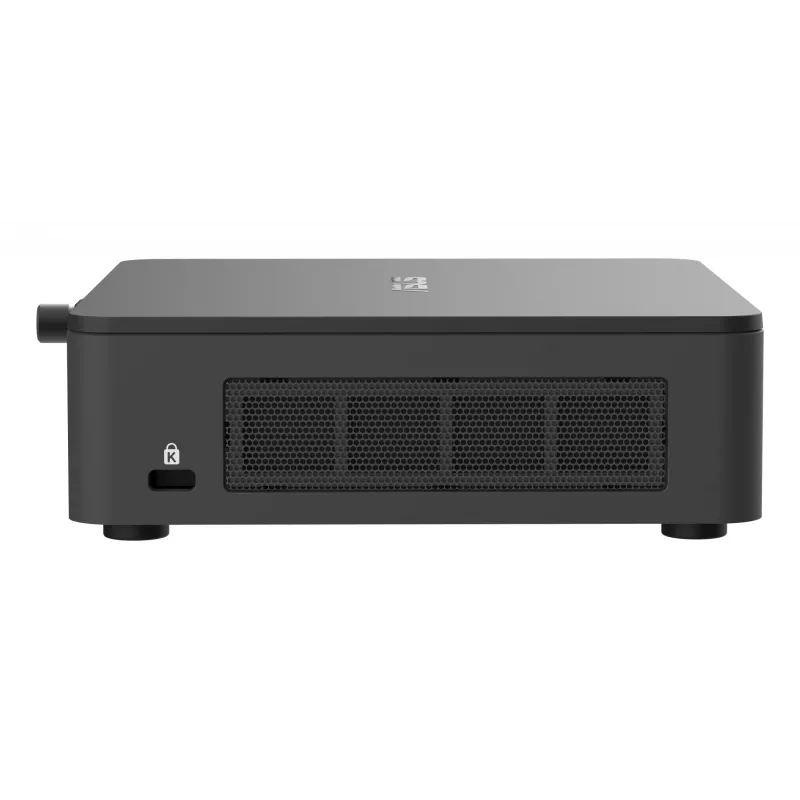

ASUS NUC 13 Pro RNUC13L5KV700000I Black i7-1370PE 1.9 GHz

ASUS NUC is a compact desktop platform designed to deliver high performance in a small form factor. Developed in collaboration with Intel, this NUC model integrates an Intel i7-1370PE processor and Intel Iris Xe integrated graphics, offering a balance of processing power and efficiency suitable for business, development, and home use. The system supports dual SO-DIMM slots with up to 64 GB DDR4-3200 memory, M.2 SSD storage, wired Gigabit-class networking and Wi‑Fi 6E for fast connectivity, and multiple display outputs for flexible workstation setups.

Advantages

The small footprint provides space-saving deployment while maintaining strong compute capability thanks to the 13th Gen Intel Core processor and Intel Iris Xe graphics. Support for up to 64 GB of dual-channel DDR4 memory and M.2 SSDs enables responsive multitasking and fast storage access. Modern connectivity options include up to 2.5 Gbps Ethernet and Intel Wi‑Fi 6E, and video outputs such as dual HDMI 2.1 and Thunderbolt 4 allow connection of high-resolution external displays. The unit is qualified for 24x7 operation, making it suitable for continuous business use.

Key specifications

• Processor: Intel i7-1370PE, base 1.9 GHz (integrated Intel Iris Xe Graphics)
• Memory: 2 SO‑DIMM slots, up to 64 GB DDR4-3200 (dual-channel)
• Storage: M.2 SSD slot(s) (NVMe/SATA dependent on SKU)
• Graphics: On‑board Intel Iris Xe Graphics
• Networking: Ethernet up to 2.5 Gbps, Intel Wi‑Fi 6E (Gig+)
• Ports: Dual HDMI 2.1, Thunderbolt 4 (quantity depends on model)
• Operation: Qualified for 24x7 use
• Color: Black

How to use

Install memory modules into the two SO‑DIMM slots and insert an M.2 SSD into the designated slot to configure capacity for your workload. Connect power and network (Ethernet or Wi‑Fi), then attach displays via the HDMI 2.1 or Thunderbolt 4 ports as required. Use the UEFI/BIOS and operating system tools to verify memory and storage recognition, update drivers and firmware, and configure power settings for continuous operation if deploying in a 24x7 environment.

Recommendations

For business or continuous-use deployments, populate both SO‑DIMM slots with matched DDR4-3200 modules to enable dual‑channel performance and select a high-quality NVMe M.2 SSD for optimal storage responsiveness. Keep firmware and network drivers up to date and ensure adequate ventilation when running under sustained load.
