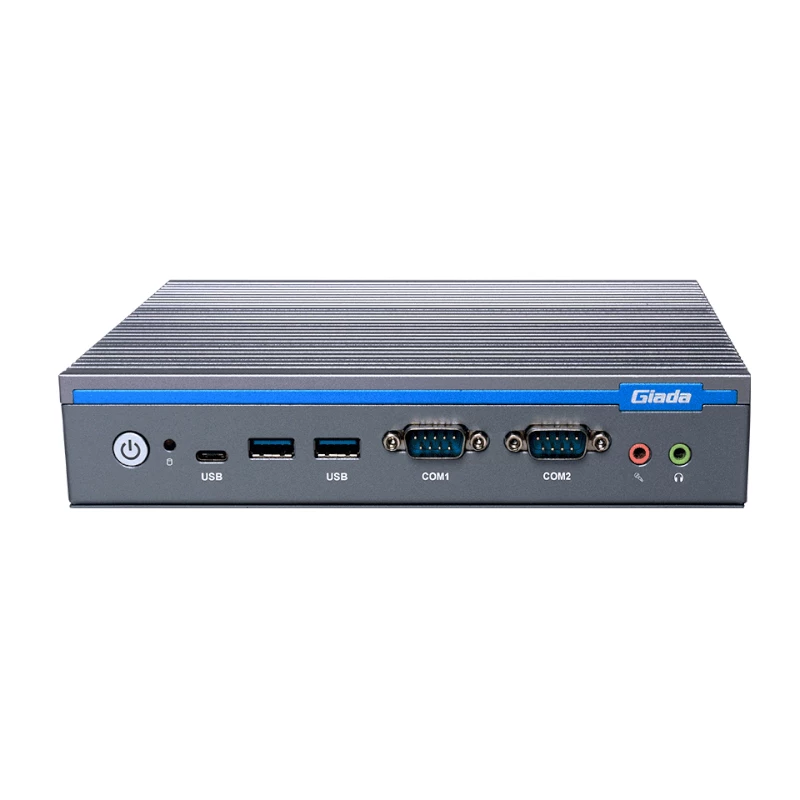

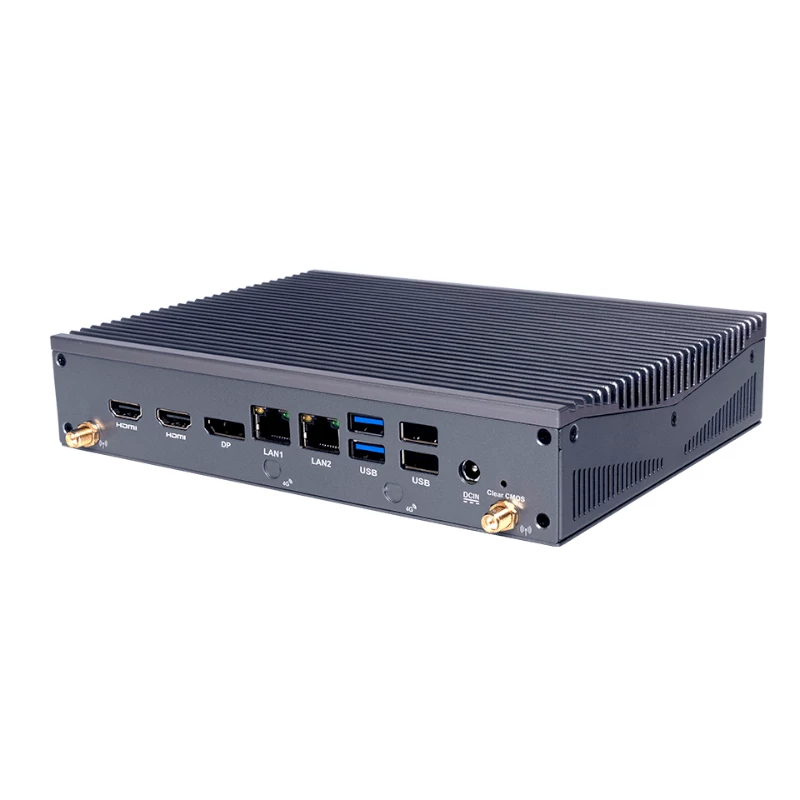

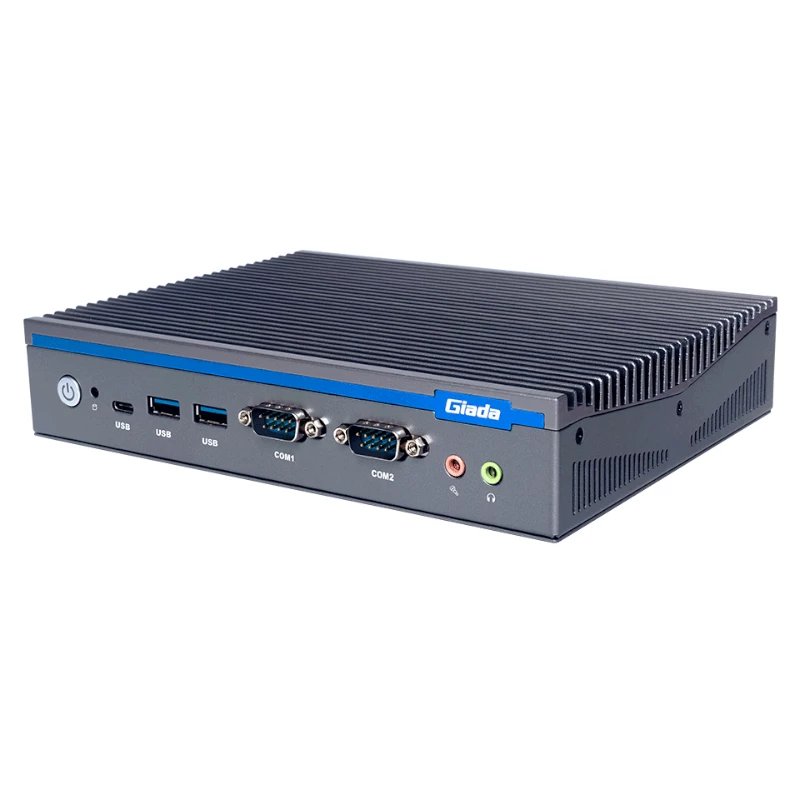

Giada DF612 Fanless Mini PC, Intel Core i5-1235U, 2x DDR4 SO-DIMM, 2x 2.5GbE LAN, Dual COM, 4K Dual Display, Aluminum Chassis, Barebone

Where many compact PCs rely on active cooling and compromise on connectivity, the Giada DF612 takes a different path: a fanless aluminum chassis that runs silently while still delivering the full performance of a 10-core Intel Core i5-1235U. This is a machine built for industrial edge, digital signage, and always-on computing where dust, noise, and downtime are not options. Dual 2.5 Gigabit Ethernet, two RS232 COM ports, and dual 4K display outputs make it a serious tool for automation, kiosk, and network appliance roles.

Highlights

• Intel Core i5-1235U processor with 10 cores, 12 threads, and up to 4.4 GHz turbo
• Completely fanless design with aluminum alloy chassis for silent, dust-resistant operation
• Dual Intel 2.5 Gigabit Ethernet ports for high-speed networking and failover
• Two RS232 COM ports for legacy industrial and retail peripherals
• HDMI 2.0 and DisplayPort 1.4 supporting dual 4K displays
• Expandable up to 64 GB DDR4-3200 across two SO-DIMM slots
• M.2 2280 PCIe Gen4 x4 and 2.5" SATA III storage options
• TPM 2.0 for hardware-based security

In daily use

The DF612 is delivered as a barebone unit: you add your own DDR4 SO-DIMM memory, M.2 or 2.5" storage, and an optional M.2 Wi-Fi/Bluetooth module. This keeps total cost of ownership low and lets you standardize on your own components. The 12V DC input works with a wide range of industrial power supplies, and the VESA mount bracket (included) allows the system to be hidden behind a monitor or under a desk. With support for Windows 10/11 and Linux, it fits into almost any IT environment.

Full specifications

• Processor: Intel Core i5-1235U (10 cores, 12 threads, up to 4.4 GHz)
• Graphics: Intel Iris Xe Graphics (80 EUs)
• Memory: 2x DDR4 SO-DIMM slots, max 64 GB, 3200 MHz
• Storage: 1x M.2 2280 PCIe Gen4 x4, 1x 2.5" SATA III
• Video outputs: 1x HDMI 2.0, 1x DisplayPort 1.4
• Network: 2x Intel 2.5 Gigabit Ethernet (RJ45)
• USB: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, 2x USB 2.0
• Serial: 2x RS232 COM ports
• Audio: 1x Line-out, 1x Mic-in
• Wireless: M.2 E-Key slot for optional Wi-Fi/Bluetooth module (not included)
• Cooling: Fanless, aluminum alloy chassis
• Security: TPM 2.0
• Power: DC 12V input
• Mounting: VESA mount support (bracket included)
• OS support: Windows 10/11, Linux
• Dimensions: 189.6 x 148.3 x 26 mm (W x D x H)
• Weight: 1.2 kg

Final note

The Giada DF612 is not a consumer toy; it is a professional-grade, fanless mini PC that prioritizes reliability, connectivity, and silent operation. If your project demands dual LAN, legacy COM ports, and 24/7 stability, this is the right foundation.
