Managed Switch PLANET Industrial L2/L4 4-Port Gigabit Ethernet 10/100/1000

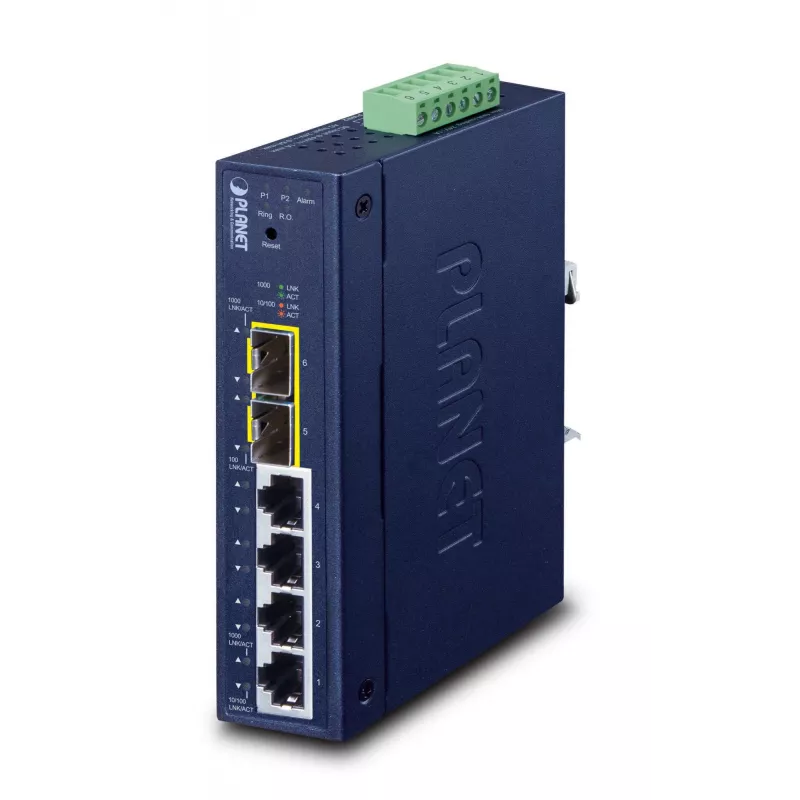

The PLANET IGS-4215-4T2S is an industrial-grade managed Gigabit switch designed for critical business and industrial applications. Housed in a rugged IP30 metal enclosure, it provides four 10/100/1000BASE-T ports and two 100/1000BASE-X SFP slots for fiber uplinks. The switch supports IPv4/IPv6 dual-stack management, operates in temperatures from -40 to 75 °C, and offers a switching capacity suitable for reliable data and video transmission in harsh environments.

Advantages

The IGS-4215-4T2S delivers robust physical protection including ESD and surge immunity, redundant ring support with fast recovery, and advanced Layer 2/Layer 4 features for traffic control and security. It includes SFP-DDM for optical monitoring, multiple management interfaces (Web, console, Telnet, SNMPv3), and compatibility with PLANET UNI-NMS and CloudViewer for remote management. The device supports long-distance fiber extension via standard 100BASE-FX/1000BASE-SX/LX SFP transceivers.

Suitable for

• Industrial automation networks and factory floor connectivity
• Video surveillance systems requiring fast ring recovery
• SMBs migrating to IPv6 while keeping existing infrastructure
• Remote site deployments managed via UNI-NMS or CloudViewer

Key specifications

• Model: PLANET IGS-4215-4T2S (MPN: IGS-4215-4T2S, EAN: 4711605286466)
• Ports: 4 × 10/100/1000BASE-T RJ-45, 2 × 100/1000BASE-X SFP slots
• Switching capacity: 12 Gbit/s
• Management: IPv4/IPv6 dual stack, Web GUI, console, Telnet, SNMPv3
• Layer features: L2/L4 QoS, 802.1Q/Q-in-Q VLAN, MSTP, G.8032 ERPS
• Protection: ESD ±6 kV contact / ±8 kV air, surge immunity ±4 kV
• Operating temperature: -40 to 75 °C
• Form factor: DIN-rail / wall mountable, IP30 metal housing
• Weight: 0.4 kg; color: blue

How to use

Mount the switch on a DIN rail or wall in a suitable industrial location and connect power to the redundant power inputs. Attach copper connections to the RJ-45 Gigabit ports and insert the required SFP transceivers into the SFP slots for fiber uplinks. Access the device via the Web GUI, console, Telnet or SNMPv3 to configure VLANs, QoS, link aggregation, ERPS ring settings and security policies. Monitor SFP parameters with SFP-DDM and use UNI-NMS or CloudViewer for centralized remote management.

Recommendations

For reliable operation in harsh environments, use shielded cables where appropriate, deploy redundant power sources, enable ERPS or MSTP for topology protection, and configure SNMPv3 or UNI-NMS for secured remote monitoring. Choose SFP modules that match required distance and fiber type (multi-mode or single-mode) and verify SFP-DDM readings during installation.
