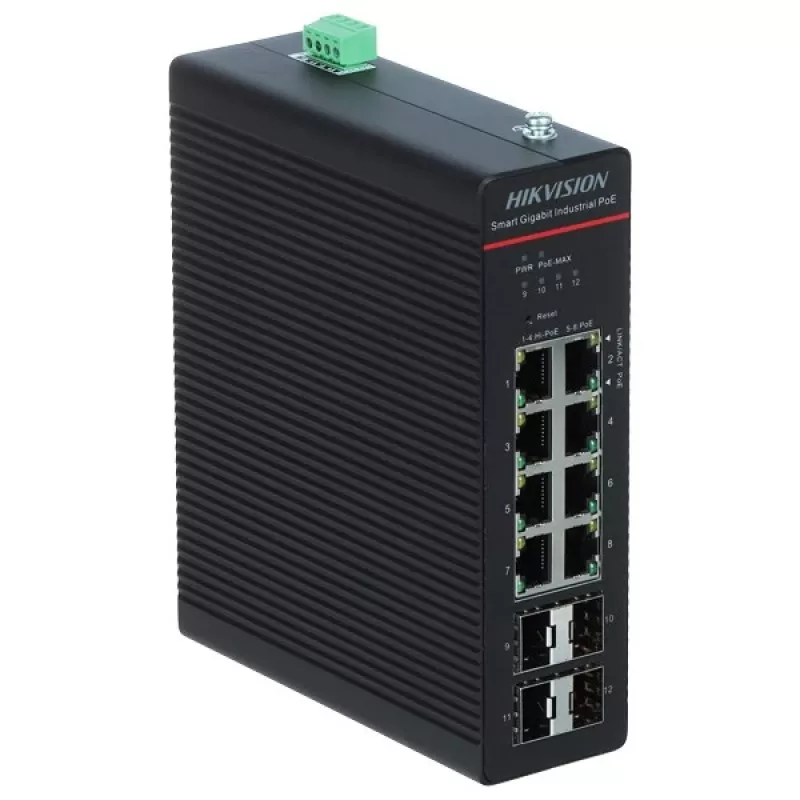

Managed Network Switch Hikvision DS-3T1512HP-SI-8P4F Gigabit Ethernet 8 Ports PoE

The Hikvision DS-3T1512HP-SI-8P4F is a managed network switch with eight Gigabit Ethernet (10/100/1000) RJ-45 ports and integrated Power over Ethernet (PoE) support. Designed for industrial and security network deployments, it provides a switching capacity of 56 Gbit/s and a MAC address table of up to 8000 entries, enabling efficient device connectivity and centralized power delivery to cameras and other PoE endpoints.

Advantages

This managed switch supports IEEE 802.3af/at/bt PoE standards, allowing flexible power delivery to connected devices. With a managed feature set, users can monitor network health, view topology and receive device alarms through Hikvision software platforms, which simplifies deployment, maintenance and troubleshooting. The unit’s compact, black industrial design and 8 Gigabit ports provide reliable wired connectivity for mid-size security and industrial networks.

Suitable for

• IP surveillance systems with PoE cameras
• Small to mid-size industrial or commercial network segments
• Edge network aggregation for access control and IoT devices
• Environments requiring centralized monitoring and alarm notifications

Key specifications

• Model: DS-3T1512HP-SI-8P4F
• Port type and speed: 8 x Gigabit Ethernet (10/100/1000) RJ-45
• Switch type: Managed
• PoE standards: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
• Switching capacity: 56 Gbit/s
• MAC address table: 8000 entries
• 10G support: No
• Weight: 0.84 kg
• Colour: Black

How to use

Install the switch in a suitable rack or on a flat surface in accordance with the site’s environmental requirements. Connect PoE-powered devices to the RJ-45 ports and uplink to your core network via an appropriate port. Use the Hikvision management software or the device’s management interface to configure VLANs, QoS, PoE power allocation and monitoring. Monitor topology and device alarms through the software to maintain network health and respond to issues promptly.

Recommendations

For reliable operation, ensure connected devices comply with supported PoE standards and do not exceed the switch’s total PoE power budget. Place the switch in a ventilated, dry location and keep firmware updated via Hikvision’s management tools to maintain security and stability.
