Smart switch Shelly LAN Switch Black AC 110-240V 1W

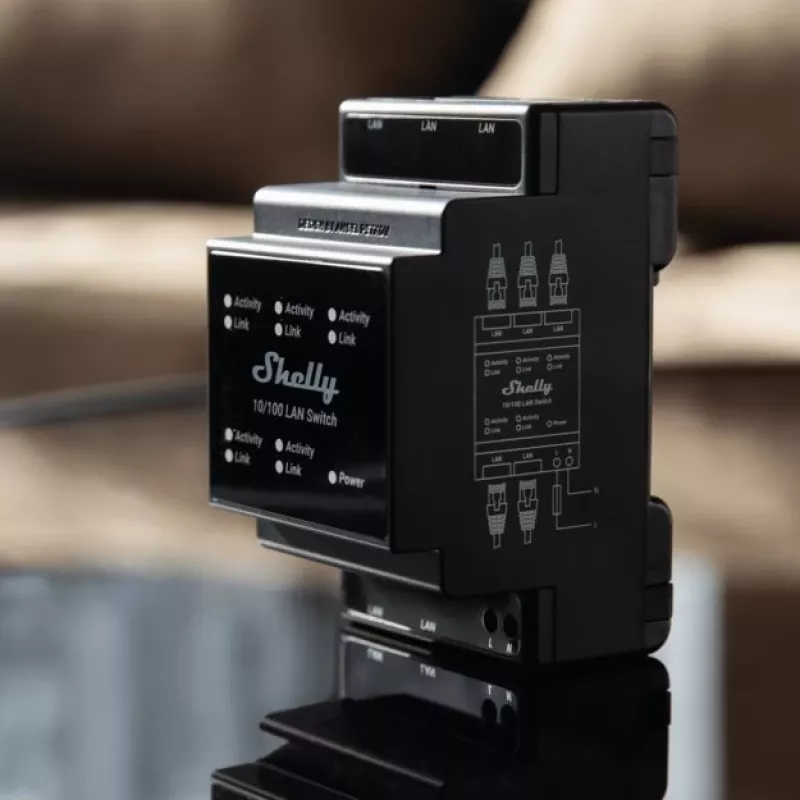

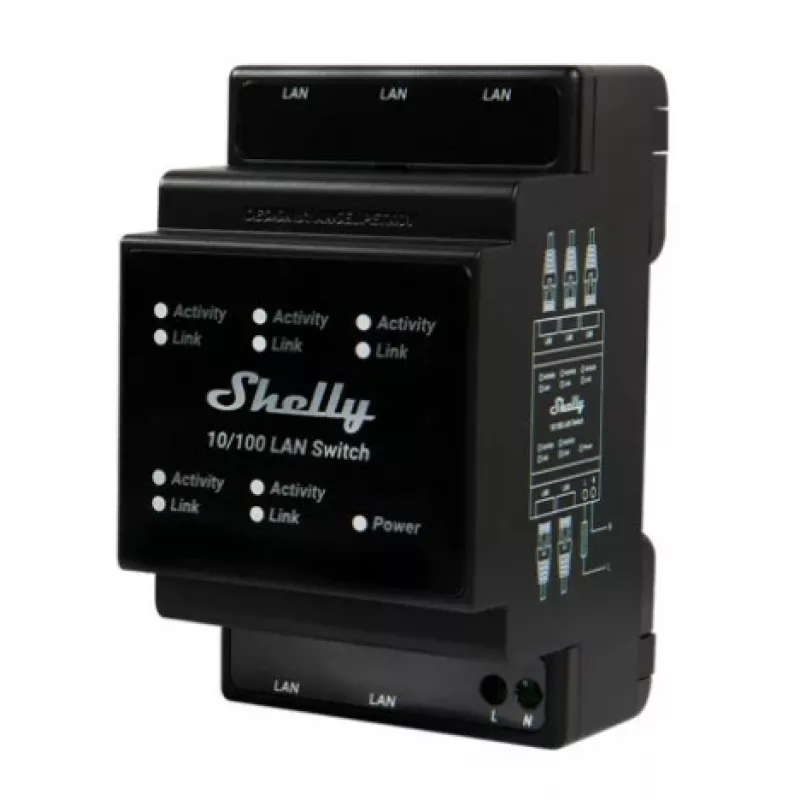

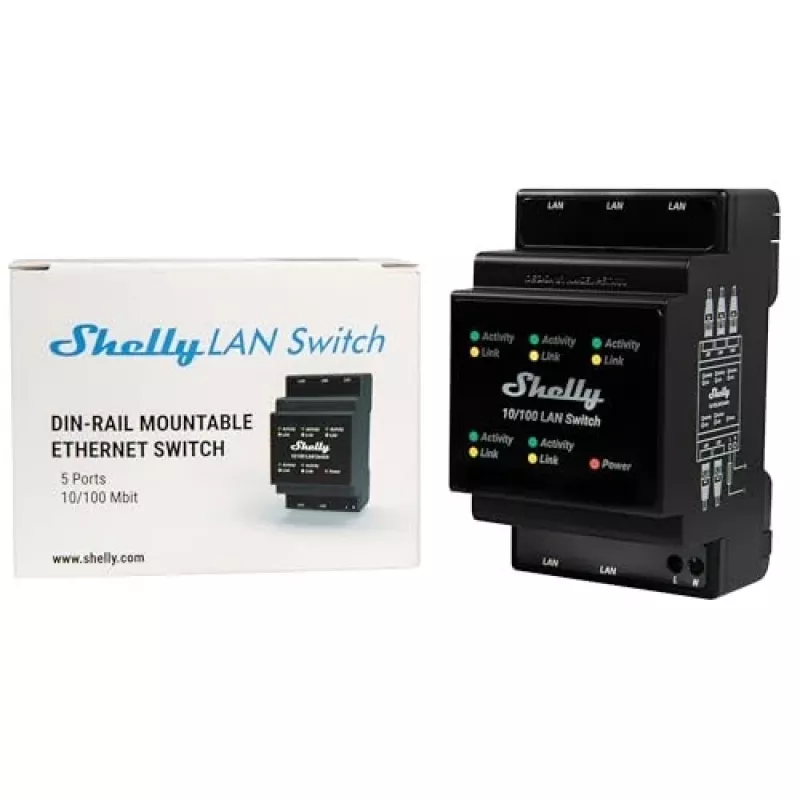

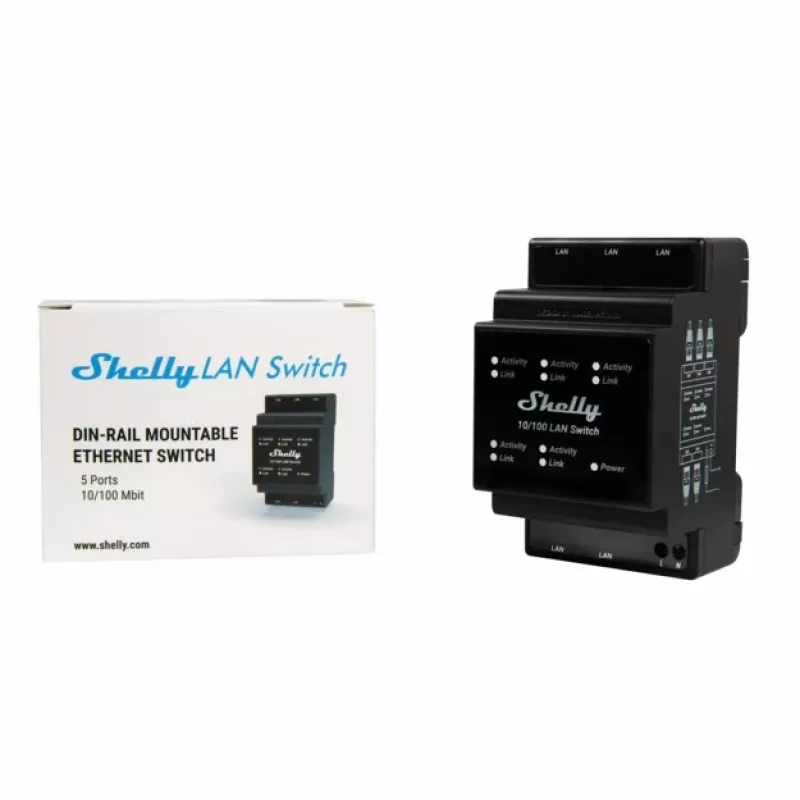

Shelly LAN Switch is a DIN-mountable Ethernet switch with 5 RJ45 ports, designed to expand wired network connectivity inside electrical distribution panels. The unit operates on AC 110–240V with a typical power consumption of 1W and comes in a compact plastic housing (53 mm × 96 mm × 59 mm). It provides a direct, stable wired connection for devices that require reliable network access and fits the same form factor as Shelly Pro line devices for neat installation.

Advantages

The Shelly LAN Switch installs on a standard DIN rail and is powered directly from AC mains (110–240V), removing the need for external adapters. With five RJ45 ports it enables multiple wired connections while occupying minimal space in the breaker box. Its plug & play design allows quick installation and immediate network expansion without complex rewiring.

Suitable for

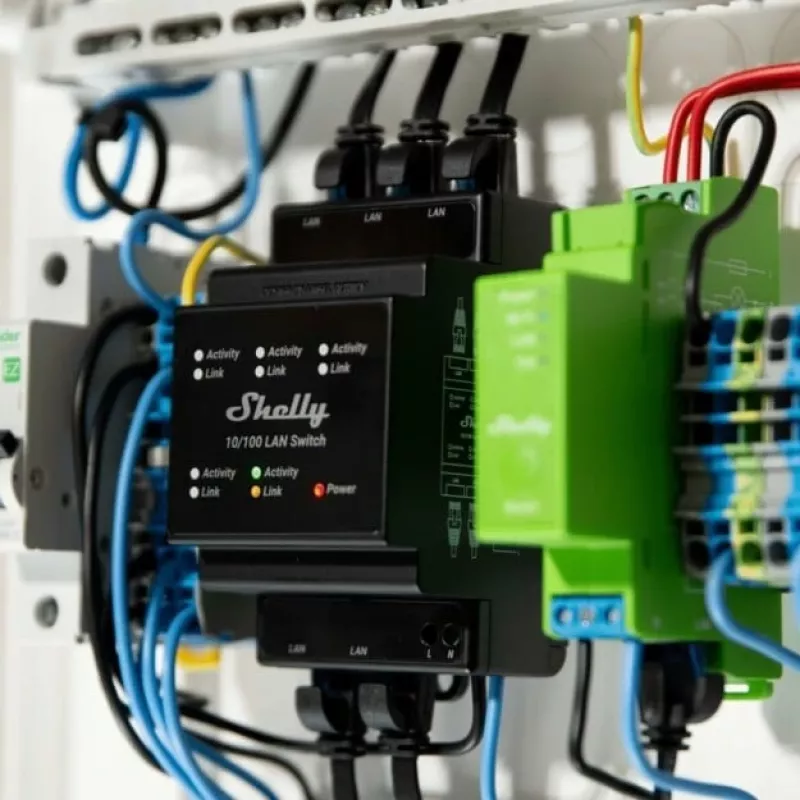

• Adding wired network ports inside a breaker panel or electrical cabinet
• Connecting Shelly Pro devices and other networked devices in a compact setup
• Improving network stability for devices that need a reliable Ethernet connection

Key specifications

• Brand: Shelly
• Model: LAN Switch (MPN: SHELLY_SWITCH)
• Power input: AC 110–240V
• Typical power consumption: 1W
• Ports: 5 × RJ45
• Dimensions (W × D × H): 53 × 96 × 59 mm
• Mounting: DIN-rail compatible
• Housing: Plastic; Color: Black
• EAN: 3800235266830

How to use

Mount the Shelly LAN Switch on a standard DIN rail inside your breaker box or electrical cabinet. Supply the device with AC mains voltage (110–240V) and connect a single incoming LAN cable to one RJ45 port; use the remaining ports to connect devices or Shelly Pro modules that require Ethernet. After power-up the switch functions as a simple unmanaged Ethernet switch with immediate connectivity—no additional configuration is required for basic operation.

Recommendations

Install the device in a dry, ventilated electrical panel and follow local electrical safety regulations. Ensure the incoming LAN cable and connected devices support the network speeds you require. Avoid exposing the unit to moisture or excessive heat and verify wiring is done by a qualified person if required by local codes.
