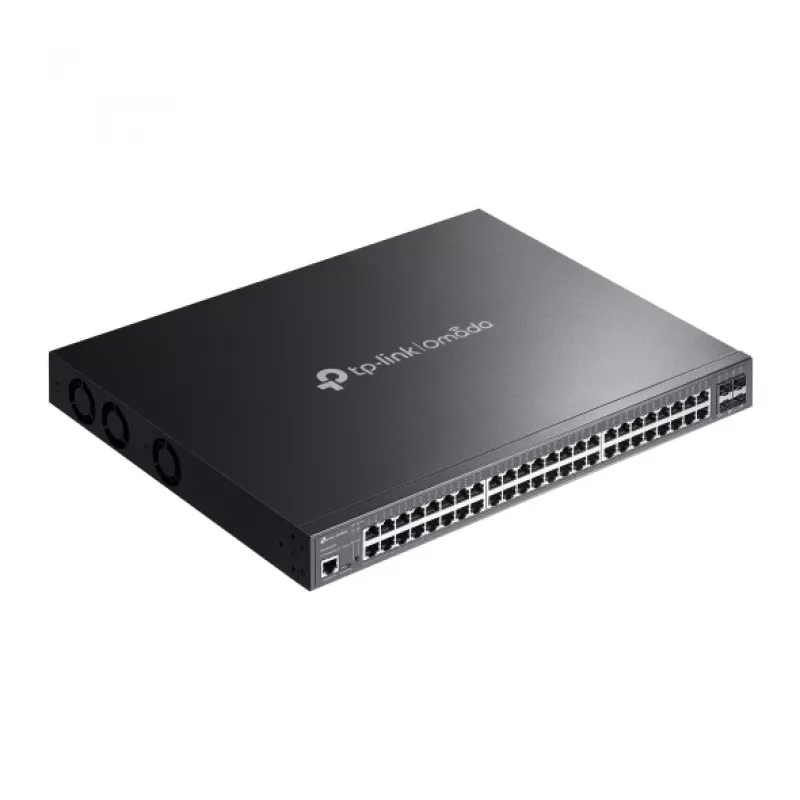

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

The TP-Link Omada SG3452XMPP L2+ 48 Ports PoE is a managed layer-2-plus switch designed for rack-mounted network deployments that require high port density, Power over Ethernet (PoE) support and multi-gigabit uplinks. With 48 Gigabit Ethernet (10/100/1000) RJ-45 ports, integrated PoE capability and 10G support for uplinks and aggregation, this switch delivers a 176 Gbit/s switching capacity and a MAC address table capable of storing up to 16,000 entries, enabling stable connectivity and efficient traffic forwarding for business networks.

Advantages

The switch supports managed L2+ features that include VLANs, link aggregation and rapid spanning tree protocol for resilient topologies, while PoE compatibility with IEEE 802.3at and IEEE 802.3af simplifies powering IP phones, wireless access points and cameras directly through Ethernet cabling. A compact rack-mount form factor and multi-gigabit uplink capability provide flexibility when integrating into existing network infrastructures. The device’s support for common networking standards ensures interoperability with a wide range of network equipment.

Suitable for

• Enterprise and branch office LANs requiring high port density and PoE delivery
• Wireless access point backhaul and PoE-powered deployments
• IP surveillance systems with centralized power and data over Ethernet
• Server aggregation and inter-switch uplinks using 10G-capable links
• Managed network environments needing VLAN, QoS and link aggregation

Key specifications

• 48 Gigabit Ethernet (10/100/1000) RJ-45 ports
• Switching capacity: 176 Gbit/s
• MAC address table size: 16,000 entries
• PoE support compliant with IEEE 802.3at and IEEE 802.3af standards
• 10G support for uplink or aggregation ports
• Supported networking standards: IEEE 802.1Q, 802.1D, 802.1w, 802.1s, 802.3ab, 802.3ae, 802.3z, 802.3u, 802.3i
• Managed L2+ feature set including VLANs, QoS and link aggregation
• Product colour: Black

How to use

Install the SG3452XMPP into a standard 19-inch equipment rack using the supplied mounting brackets. Connect powered devices to the Gigabit RJ-45 ports and use designated 10G-capable ports for uplinks to core switches or servers. Access the switch management interface through the web GUI or supported network management platform to configure VLANs, PoE budgets, QoS policies, link aggregation and spanning tree settings. Monitor port status and traffic statistics via the management interface to verify connectivity and performance.

Recommendations

Plan PoE power allocation before deployment: estimate total PoE budget based on connected devices and set appropriate PoE priority and scheduling to avoid power overload. Use structured cabling with quality Cat5e or Cat6 cables for Gigabit links and Cat6a/Cat7 for multi-gigabit or 10G uplinks. Implement VLAN segmentation and QoS for voice and surveillance traffic to maintain predictable performance.
