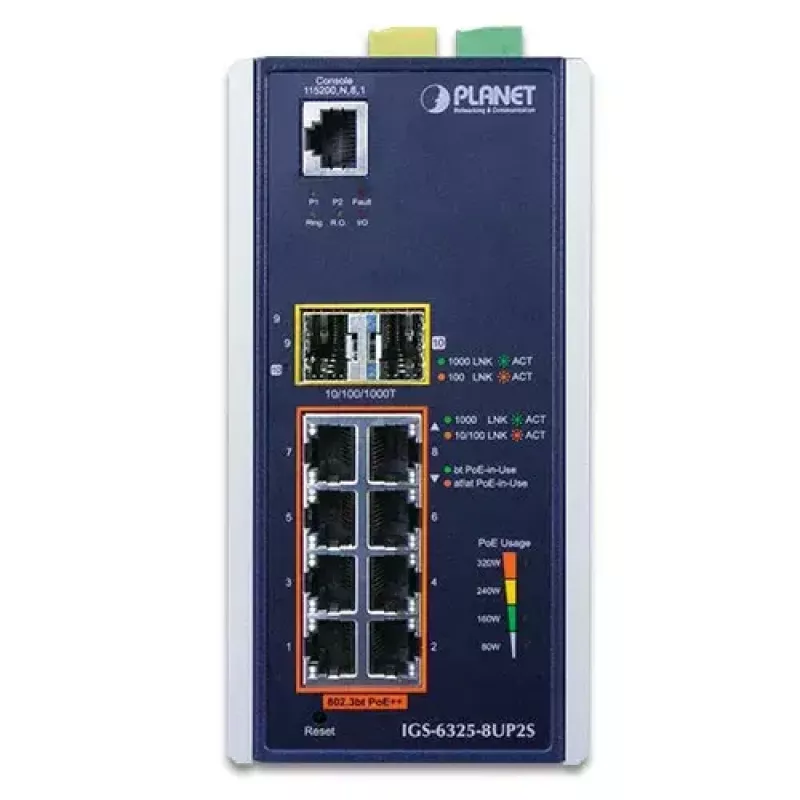

Managed L3 Switch PLANET IGS-6325-8UP2S 8 Ports Gigabit Ethernet PoE

The PLANET IGS-6325-8UP2S is an industrial L3 managed switch in an IP30 metal housing that provides eight 10/100/1000BASE-T ports with IEEE 802.3bt PoE++ support and two 100/1000/2500BASE-X SFP interfaces. Each PoE port can deliver up to 90–95 watts using four-pair Cat5e/6 cabling, enabling power and full-speed data to high-power devices while the device operates reliably in temperatures from -40 to 75 °C. The unit supports DIN-rail or wall mounting and offers Layer 3 IPv4/IPv6 static routing plus OSPFv2 for dynamic routing.

Advantages

The switch supplies high PoE power per port (up to 95 W) and multiple PoE output modes including 802.3bt, PoH/UPOE and force mode to ensure compatibility with a variety of powered devices. It integrates industrial features such as redundant power inputs, ITU-T G.8032 ERPS ring protection, MSTP, Modbus TCP for SCADA integration, IEEE 1588 timing support, SFP-DDM diagnostics and robust Layer 2/Layer 3 management. Built-in cybersecurity (SSHv2, TLS/SSL) and event alerting (SMTP/SNMP trap, digital I/O) simplify secure operation and monitoring.

Suitable for

• Powering and connecting PoE PTZ cameras and remote surveillance systems
• Feeding high-power PoE devices such as AIO touch PCs, POS kiosks and digital signage
• Industrial automation networks integrating SCADA/HMI via Modbus TCP
• Carrier or telecom edge applications requiring IEEE 1588 timing
• Small or medium enterprise networks needing Layer 3 routing and PoE scheduling

Key specifications

• Model: PLANET IGS-6325-8UP2S (MPN: IGS-6325-8UP2S, EAN: 4711605284721)
• Ports: 8 × 10/100/1000BASE-T PoE++ ports, 2 × 100/1000/2500BASE-X SFP
• PoE standard and power: IEEE 802.3bt (PoE++), PoH/UPOE; up to 90–95 W per port
• Switching capacity: 20 Gbit/s (product data)
• Switch type: Managed L3 with IPv4/IPv6 static routing and OSPFv2
• Industrial features: IP30 metal case, -40 to 75 °C operating range, DIN-rail/wall mount
• Management: Web GUI, console, Telnet, SNMPv3
• Security: ACLs L2–L4, 802.1X, DHCP Snooping, IP Source Guard, DAI
• Additional: Modbus TCP, SFP-DDM, 1588 PTP support, redundant ring (G.8032), digital I/O
• Weight and color: 1.138 kg; aluminium/black

How to use

Mount the switch on a DIN rail or a wall inside an appropriate industrial cabinet and connect the SFP modules or copper links according to required distances and speeds. Configure network settings via the Web GUI, console or SNMPv3 to set VLANs, Layer 3 routing and OSPF as needed. Select the suitable PoE output mode per port (802.3bt, PoH/UPOE, end-span, mid-span or force mode) to match the connected powered device. Use the ONVIF device detection in the GUI to discover IP cameras, upload floor plans for device location, and manage camera PoE reboots. Enable PoE schedule and scheduled power recycling where energy saving or periodic reboot is required.

Recommendations

Choose the PoE mode that matches the PD’s specification before connecting high-power devices, and verify cable quality (Cat5e/6) and SFP transceiver compatibility. Use PoE scheduling and periodic power recycling to reduce downtime and conserve energy, and enable SSH/TLS and SNMPv3 for secure remote management.
