LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km

LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
R1,671
The GVT-2003 SMF ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-m... Read More
Stock 22 Code 131763 Brand LEVELONE Model GVT-2003 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 9
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

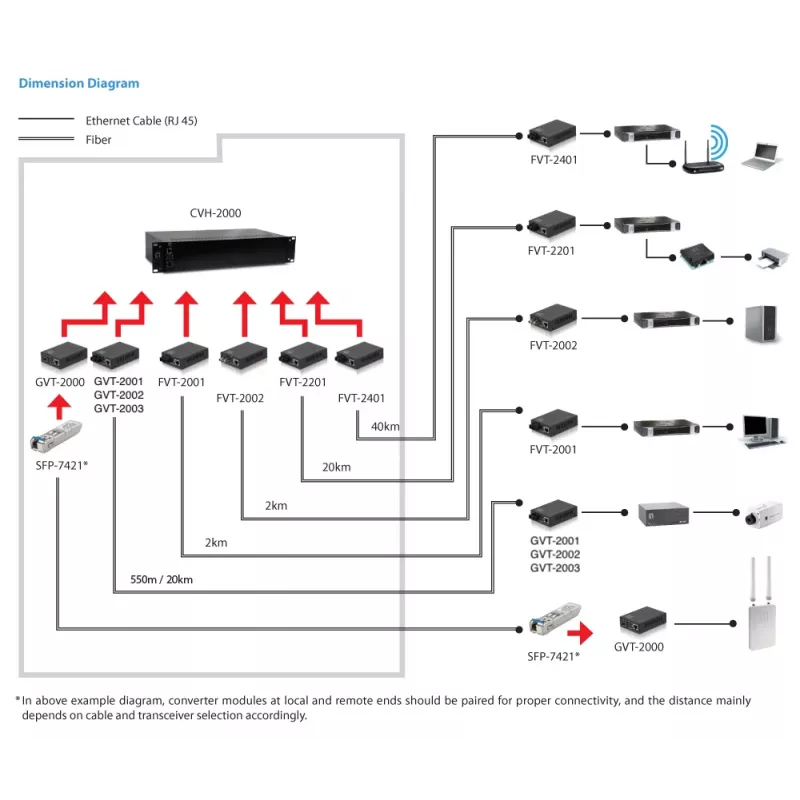

The GVT-2003 SMF ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode. The GVT-2003 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.

LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-LX, 1000Base-SX, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Link, Power, Product colour: Black. Fiber optic connector: ST, Connectivity technology: Wired. Power consumption (typical): 5 W

Key Highlights
  • Single-mode fiber with ST connector for transmission of up to 20km
  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • 9K jumbo frames to increase data transfer rates
  • Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Dip switches for customized configuration
  • Supports low-time lag transmission
  • 10°C to 55°C operating temperature range
  • Wired
  • 1000 Mbit/s 20000 m 1310 nm
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Single-mode ST
  • Black
Specifications
AC adapter included
Yes
Compliance certificates
CE
Connectivity technology
Wired
Converter input interface
1000Base-LX, 1000Base-SX
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Country of origin
China
DC-in jack
Yes
Depth
94 mm
Duplex system
Full, Half
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber mode structure
Single-mode
Fiber optic connector
ST
Flow control support
Yes
Height
26 mm
Internal
No
Jumbo frames
9000
Jumbo frames support
Yes
LED indicators
Link, Power
Link Fault Pass-through (LFP)
Yes
Link Loss Carry Forward (LLCF) supported
Yes
Link Loss Return (LLR) supported
Yes
Master (outer) case gross weight
31.2 kg
Master (outer) case height
480 mm
Master (outer) case length
390 mm
Master (outer) case width
360 mm
Master (outer) cases per pallet (air)
16 pc(s)
Maximum data transfer rate
1000 Mbit/s
Maximum transfer distance
20000 m
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-10 - 55 °C
Package depth
120 mm
Package height
55 mm
Package type
Box
Package weight
840 g
Package width
235 mm
Pallet gross length
80 cm
Pallet gross width
120 cm
Pallet height (air)
158.4 cm
Power consumption (typical)
5 W
Product colour
Black
Products per master (outer) case
36 pc(s)
Quick installation guide
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Wavelength
1310 nm
Weight
200 g
Width
71 mm

Manual

Open Manual

Manual

Open Manual

Document

Open Document

Leaflet

Open Leaflet

Manual

Open Manual
