Keystone module InLine 76203M — network accessory, shielded RJ45 insert

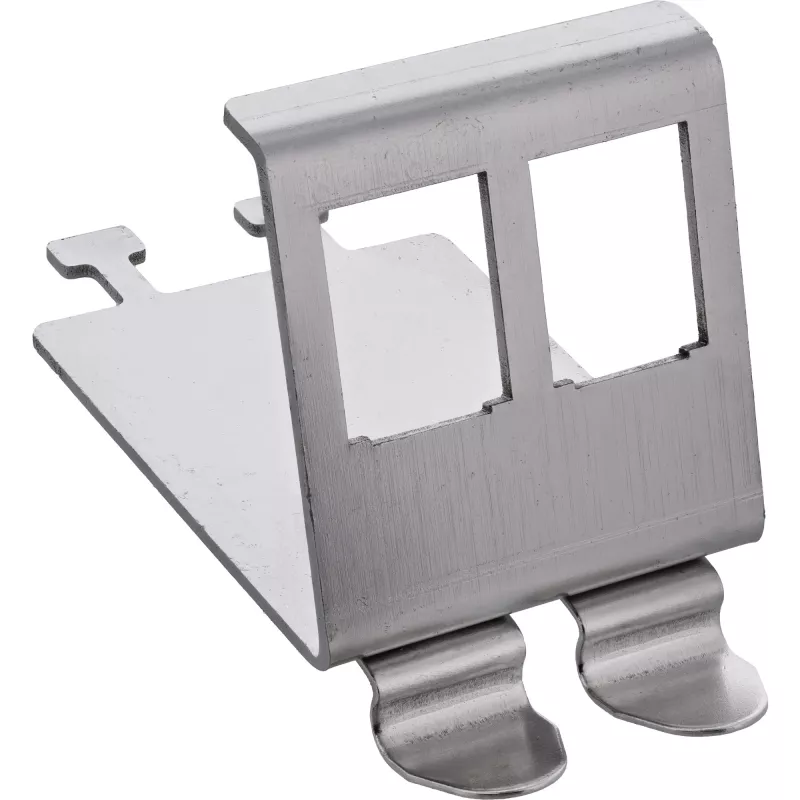

InLine 76203M is a shielded RJ45 keystone module designed as a compact network accessory for structured cabling. It fits standard keystone openings and is intended for installation in patch panels, wall plates or keystone frames to provide a single network connection point. The module supports snap-in mounting and offers a metal shielded housing for improved EMI protection and secure plug retention.

Advantages

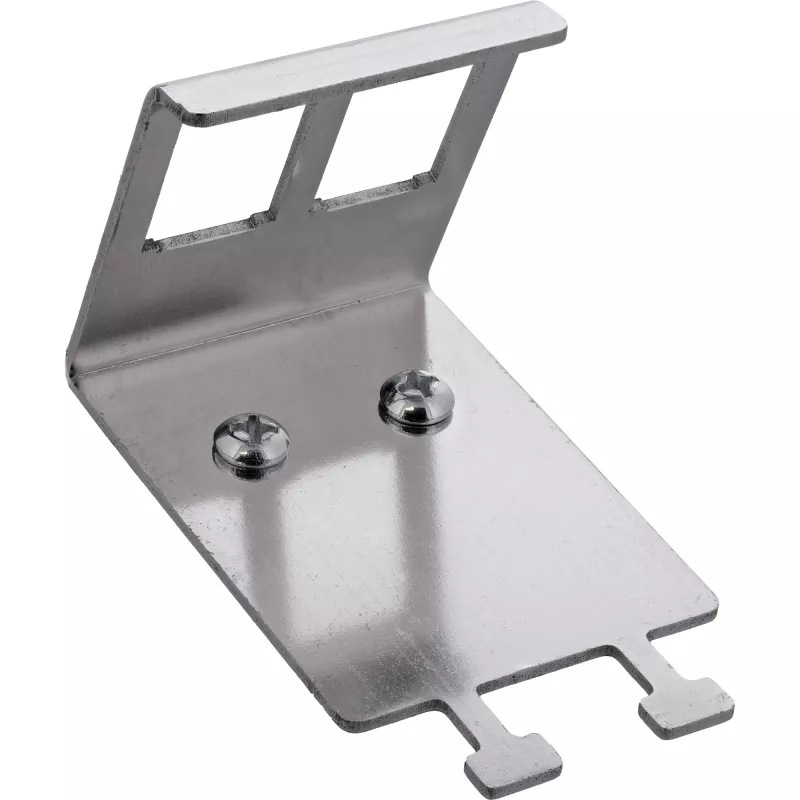

The metal, shielded construction reduces electromagnetic interference and improves grounding when used in shielded cabling environments. Its standard keystone format and snap-in design enable quick installation into compatible panels or plates, while the integrated tab allows additional mechanical strain relief or cable fastening with cable ties. Compact dimensions make it suitable for dense installations and serial mounting in multi-port arrangements.

Suitable for

Key specifications

How to use

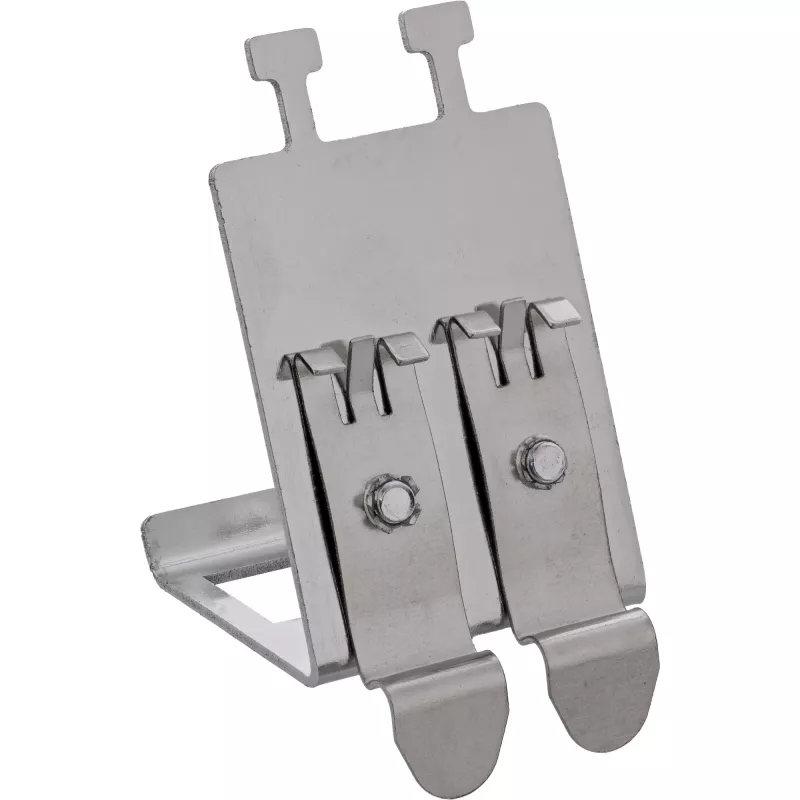

Prepare the structured cabling and terminate the twisted-pair cable to an appropriate RJ45 insert or jacks compatible with the keystone format. Align the keystone module with the corresponding opening in a patch panel, wall plate or keystone frame and press until it snaps into place. If mounting on a top-hat rail, place the supplied bracket onto the 35 mm rail and secure the module. Use the integrated tab to fasten the cable with a cable tie or to provide strain relief for the terminated cable.

Recommendations

Use the shielded keystone module together with shielded RJ45 jacks, shielded patch panels and screened cabling to maintain overall system shielding. Ensure proper grounding of metal components and avoid excessive bending or tension at the termination point; use the integrated tab for cable fixation to reduce mechanical stress.
