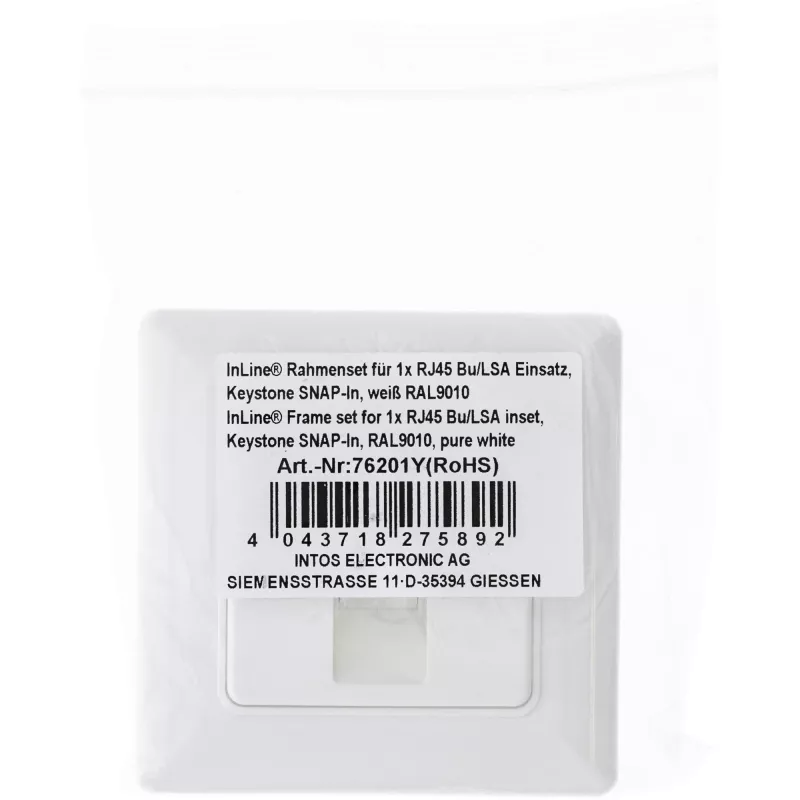

InLine Frame set for 1x RJ45 Bu/LSA insert, Keystone SNAP-In, white RAL9010

Compact solution for single connections:Perfectly suited for installing individual network connections in a reduced design.
Practical thanks to RJ45 keystone compatibility:Accommodates a SNAP-In module for flexible network configurations.
Easy integration into existing systems:Standard dimensions with 80x80 mm frame and 50x50 mm centre plate for common flush-mounted boxes.
Safe and clear:Includes dust cap and labelling field for clean installation and documentation.
Ideal for smaller network installations:Use, for example, in home offices, small offices or for retrofitting with reduced space requirements.

The InLine® Frame Set 76201Y offers a space-saving solution for accommodating an RJ45 Keystone Module – ideal for all applications where only a single network connection is required. The compact design allows for discreet integration into walls, parapet ducts or flush-mounted boxes and can be used in both commercial and private environments.

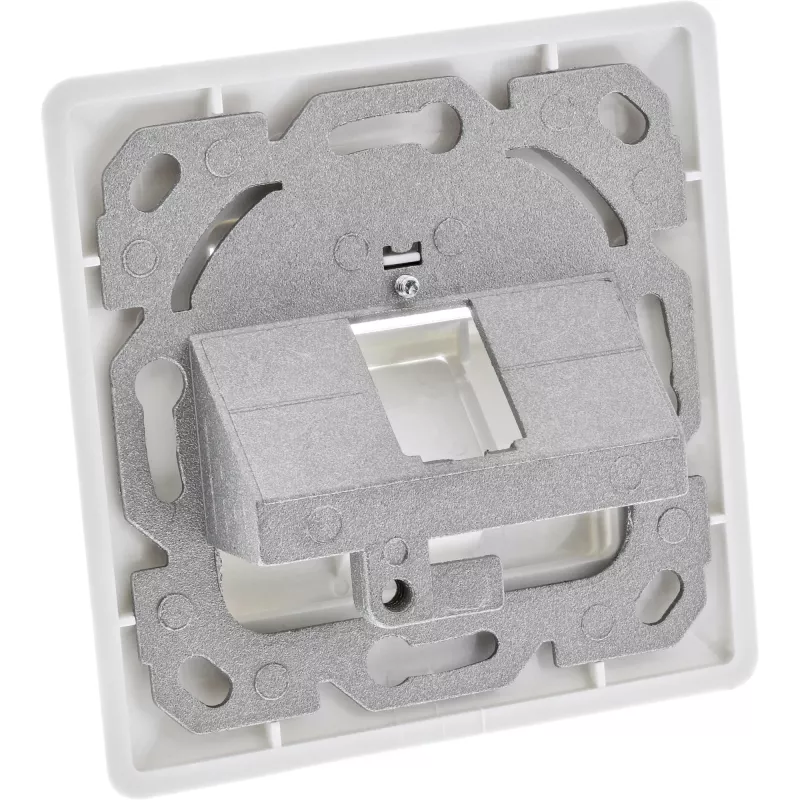

The delivery includes a mounting frame in the standard size of 80x80 mm and a central plate with a 50x50 mm cut-out – suitable for modular installation systems. The dust cap and integrated labelling field provided as standard offer additional convenience.
Whether for retrofitting or specifically reduced network structures, the 76201Y frame set impresses with its simplicity, reliability and compatibility.

Connections: 1x RJ45
Installation: Flush-mounted
Dimensions (W x H x L): 8 x 2.5 x 8 cm
Colour: White (RAL9010)
RJ45 Keystone SNAP-In compatible: Yes

InLine Frame set for 1x RJ45 Bu/LSA insert, Keystone SNAP-In, white RAL9010. Width: 80 mm, Height: 25 mm, Depth: 80 mm. Package width: 80 mm, Package depth: 80 mm, Package height: 26 mm. Quantity per pack: 1 pc(s)

How to use

Insert the compatible Keystone SNAP-In RJ45 Bu/LSA module into the 50 mm x 50 mm window until it snaps into place. Position the assembled frame over the mounting box or panel and press to secure the screwless fastening. Route and terminate the network cable to the RJ45 Bu/LSA insert following standard cabling procedures before final assembly.

Recommendations

For reliable performance, use with matching Keystone SNAP-In RJ45 Bu/LSA modules and ensure cables are terminated according to TIA/EIA or other applicable wiring standards. Avoid exposure to direct sunlight and high temperatures to maintain the RAL9010 finish.
