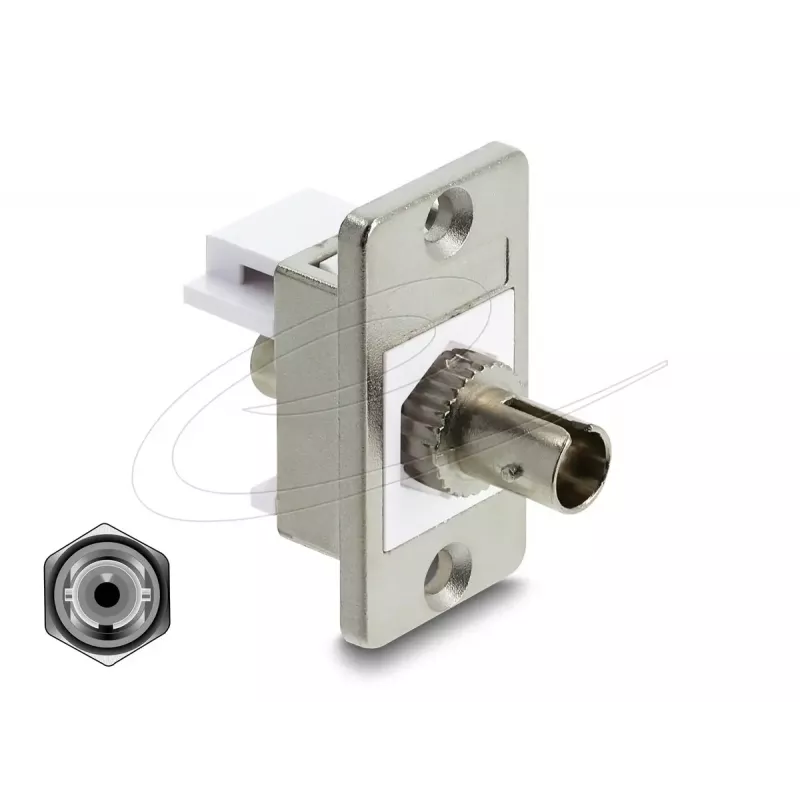

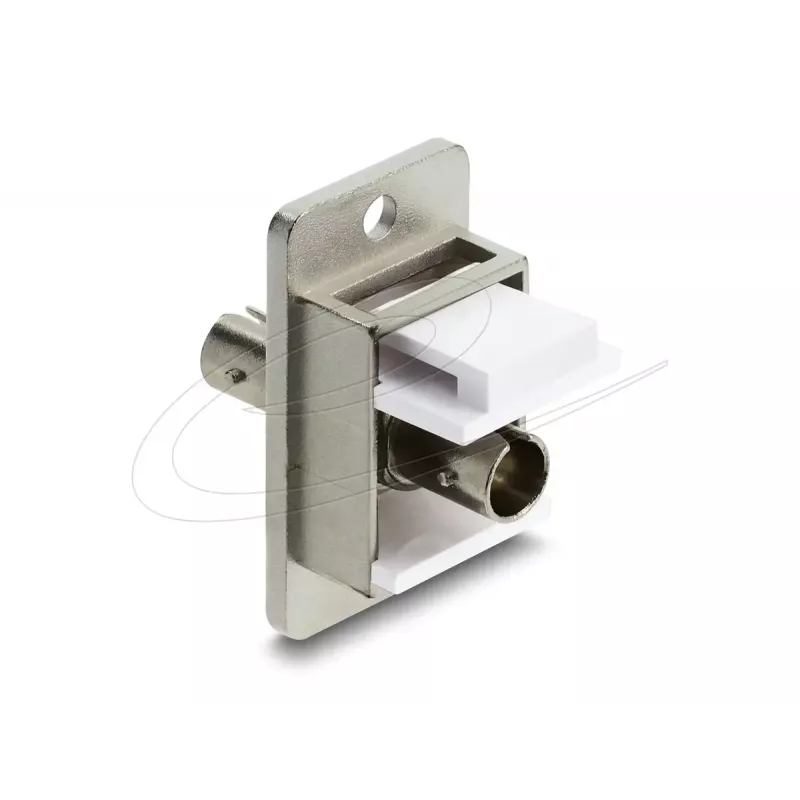

Keystone module DELOCK 91093 — flat construction keystone insert

This Delock fibre optic panel mount is designed for connecting fibre optic cables and is suitable for installation in a housing. It provides a secure interface for fibre connections in enclosures and distribution panels.

Advantages

The panel mount offers reliable fibre connection and straightforward installation into housings. It ensures stable alignment of fibre cables and is compatible with standard fibre connector types, simplifying integration into existing setups.

Key specifications

How to use

Mount the panel connector into the prepared cutout of the housing and secure it according to the enclosure's mounting method. Insert and align the fibre optic connectors into the panel mount until they engage securely. Verify connection integrity and routing before closing the housing.

Recommendations

When installing, ensure compatible fibre connector types and proper cable handling to avoid bending or stressing the fibres. Follow the housing manufacturer's mounting instructions and perform optical tests after installation.
