Keystone Module DeLOCK 86705

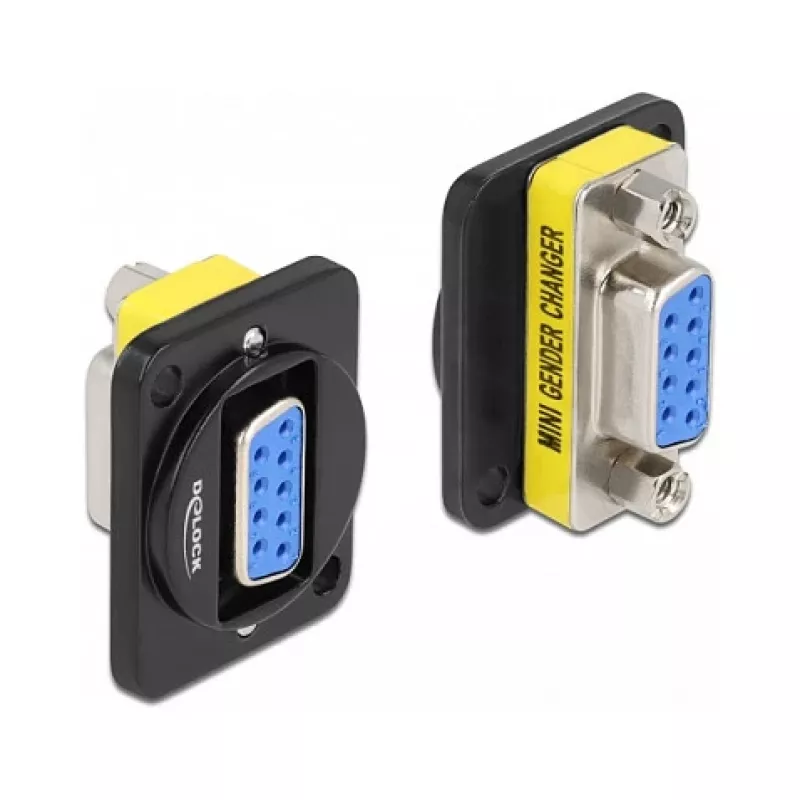

The DeLOCK 86705 keystone module is a compact flat module in black designed for panel or case installation where D-type openings for XLR jacks are used. It provides a VGA (D-Sub) connector in a small footprint (25 mm × 31 mm × 16 mm), allowing integration of digital equipment into professional audio or AV systems while maintaining a tidy installation.

Advantages

The flat construction and keystone format enable easy snap-in mounting into standard D-type openings. Its compact dimensions save space in panels and cases. The module's VGA (D-Sub) connector offers a common interface for connecting legacy and modern AV devices in studio or rack environments.

Suitable for

• Panel or case frontplates with D-type/XLR-style openings
• Professional audio systems requiring VGA/D-Sub connectivity
• AV racks, studio equipment panels, and compact enclosures

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 86705
• EAN: 4043619867059
• Connector type: VGA (D-Sub)
• Construction: flat keystone module
• Color: black
• Dimensions (W × D × H): 25 mm × 31 mm × 16 mm
• Quantity: 1 piece
• Country of manufacture: China

How to use

Insert the module into a compatible keystone opening in a panel or case until it snaps into place. Connect the VGA (D-Sub) cable to the module from the rear or front as required by your installation. Secure cabling inside the enclosure and test the connection with the connected AV or digital equipment to confirm proper signal transmission.

Recommendations

Use the module in panels or enclosures prepared for D-type keystone inserts and ensure the mating VGA cables are appropriate for the signal type. Avoid excessive mechanical stress on the connector and route cables to prevent strain.
