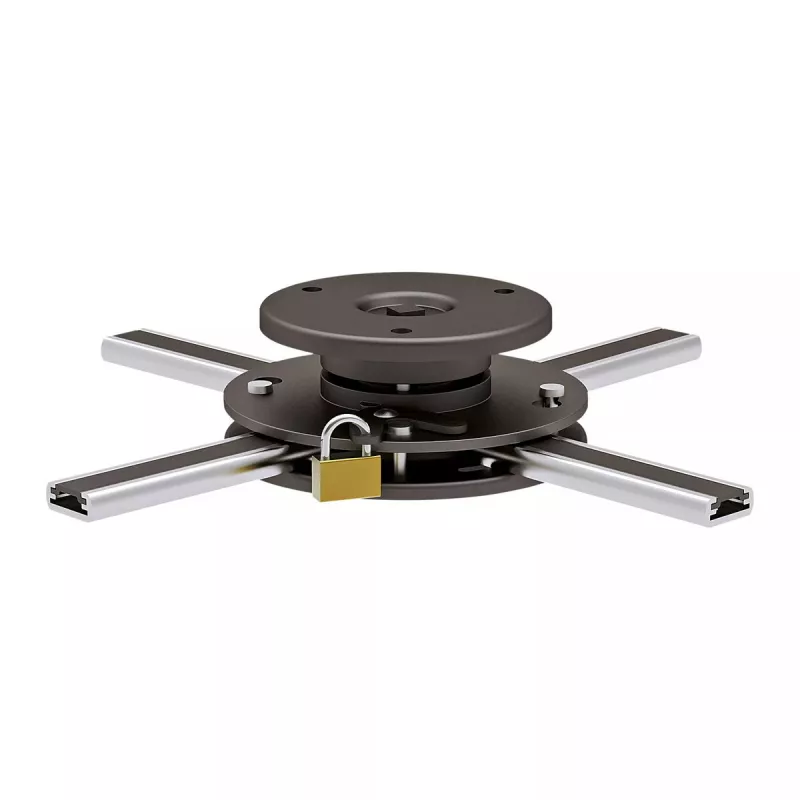

InLine Wall Mount Projector / Beamer Bracket max. 20kg

The InLine Wall Mount Projector Bracket 23138A is a ceiling mounting solution engineered for fixed and stable projector installation. Finished in black, the bracket supports projectors up to a maximum weight of 20 kg and provides a compact, low-profile mounting footprint suitable for a wide range of room styles. Its construction is intended to keep the projector securely positioned while allowing for the alignment needed to achieve correct image placement.

Advantages

The bracket combines a simple aesthetic with robust mechanical support to hold most small to medium-sized projectors. Its black coating reduces visual distraction and helps the assembly blend into darker ceilings. Designed for ceiling mounting, the bracket offers a stable connection to the projector and the mounting surface, minimising vibration and maintaining image stability during use.

Suitable for

Key specifications

How to use

Position the bracket on a suitable ceiling surface capable of supporting the combined weight of the bracket and projector. Secure the mounting plate to the ceiling using appropriate anchors or fixings for the ceiling material, ensuring all fasteners are tightened to the manufacturer’s recommended torque. Attach the projector to the bracket following the projector manufacturer’s instructions for alignment and mounting-hole pattern. After securing the projector, adjust tilt and rotation if available to achieve correct image alignment and tighten all adjustment points.

Recommendations

Verify that the ceiling structure can safely hold a load of at least 20 kg before installation. Use fixings suited to the ceiling material (concrete, timber, or drywall with suitable anchors). Confirm the projector’s weight and mounting hole pattern are compatible with the bracket, and perform final alignment with the projector powered off to avoid accidental lens damage.
