Projector Ceiling Wall Mount Bracket Equip 650703

The equip® Universal Projector Ceiling/Wall Mount Bracket provides a compact and sturdy solution for securely installing projectors. Designed for reliable performance, the mount supports a maximum projector weight of 20 kg and has a white finish. Its dimensions (203 mm width, 650 mm height, 237 mm depth) make it suitable for a variety of projector models and installation locations.

Advantages

The bracket combines a slim profile with solid construction to ensure stable positioning of the projector. It is lightweight for handling yet rated to support heavier projectors up to 20 kg. The white colour allows discreet integration with typical ceilings and walls, while included installation graphics simplify the assembly and mounting process.

Suitable for

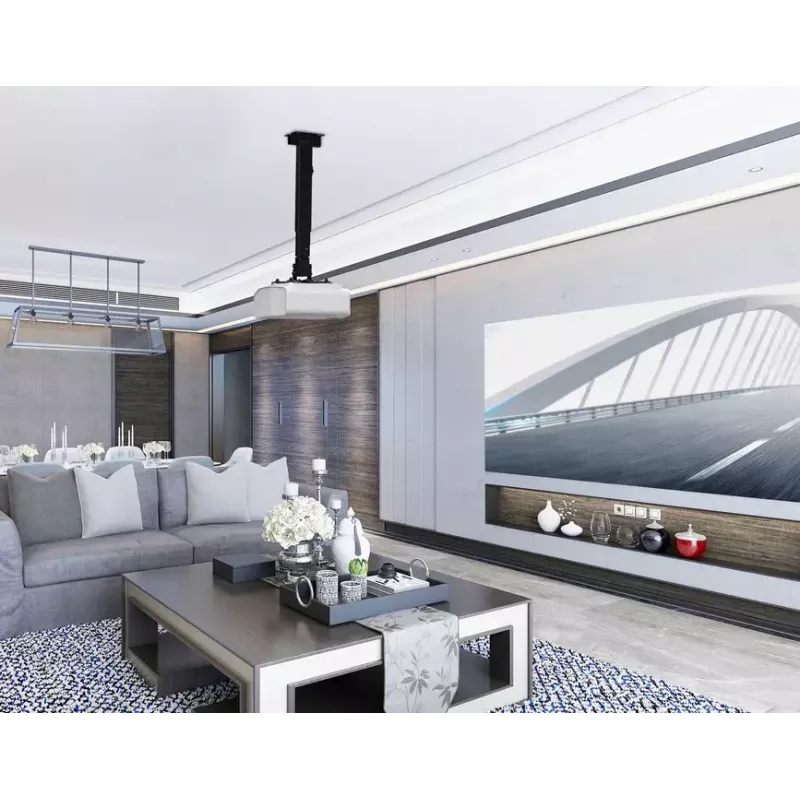

• Home theatre projector installations

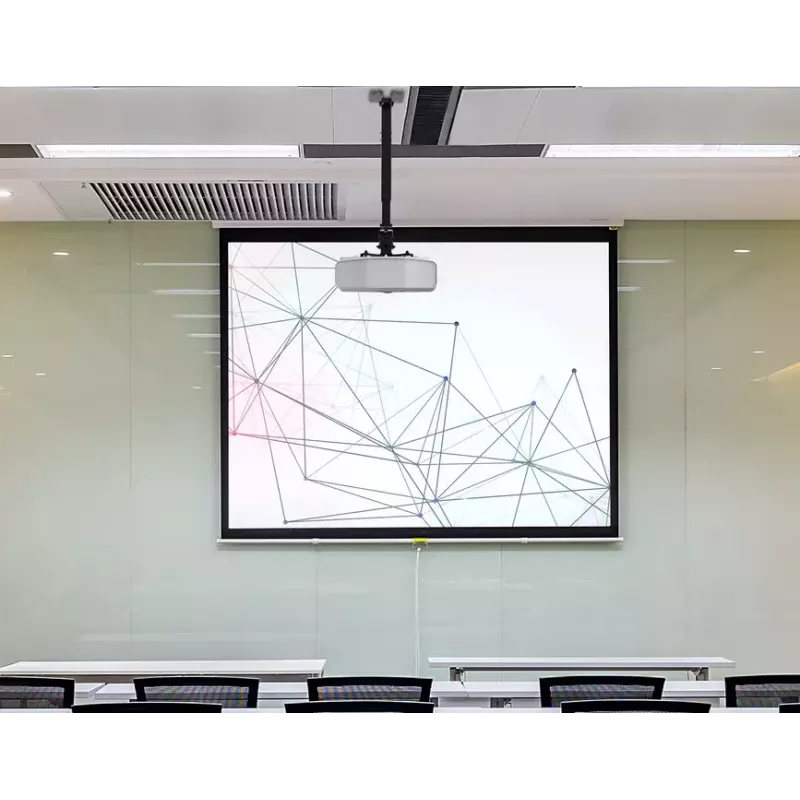

• Conference room and classroom projectors
• Fixed wall or ceiling mounting where a compact bracket is required

Key specifications

• Brand: EQUIP
• Model / MPN: 650703
• EAN: 4015867197905
• Maximum supported projector weight: 20 kg
• Mounting type: Wall (suitable for ceiling mounting as indicated by product name)
• Product colour: White

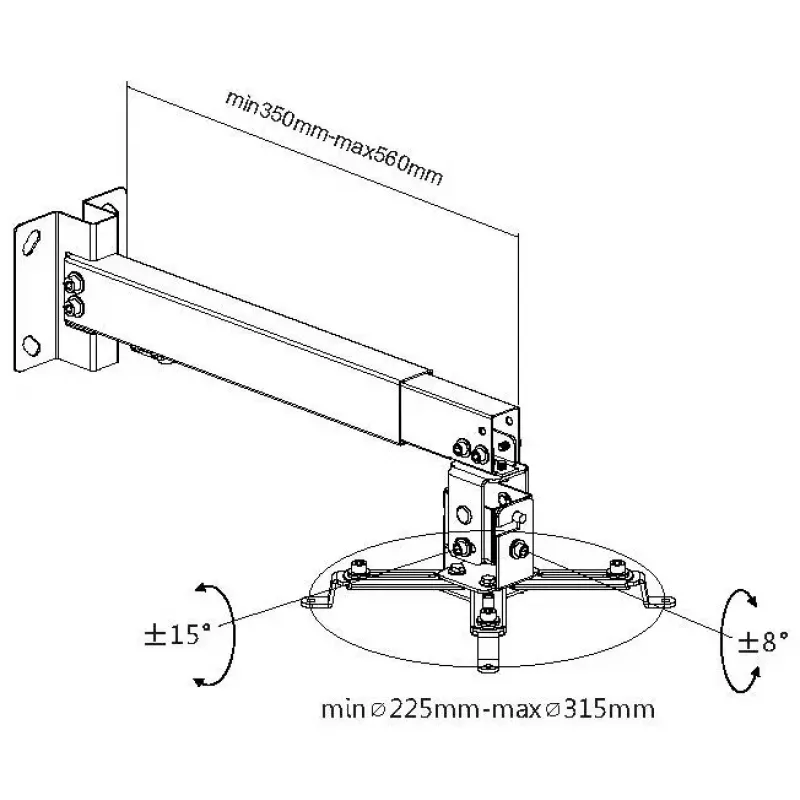

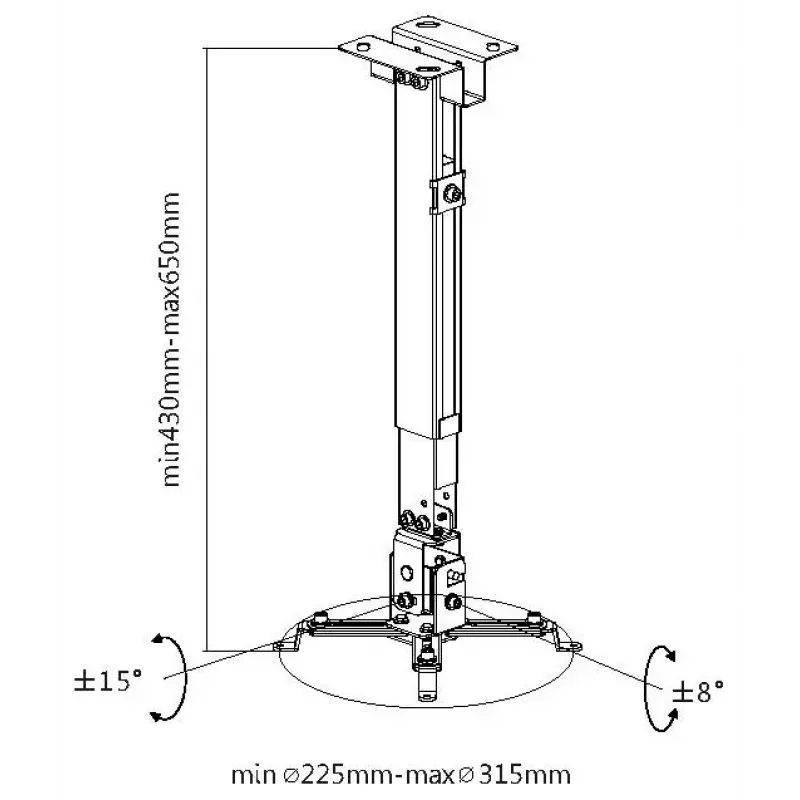

• Dimensions (W × H × D): 203 × 650 × 237 mm
• Net weight: 1.7 kg

How to use

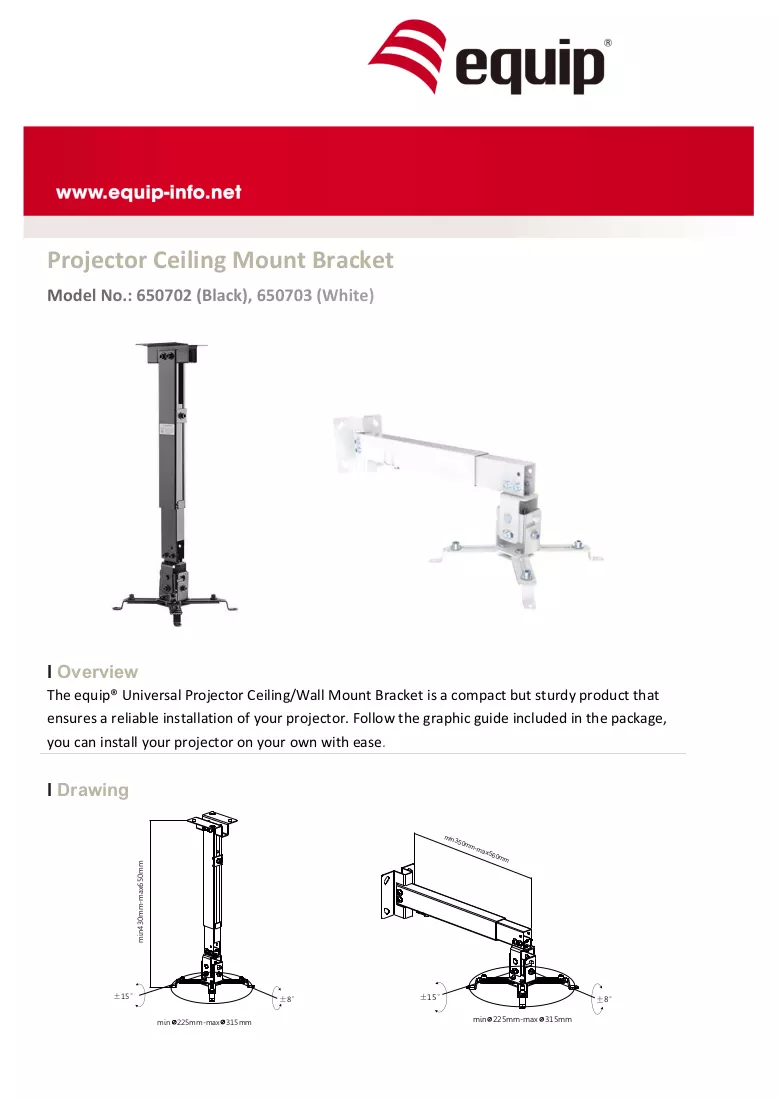

Follow the graphic guide included in the package to carry out installation. First, determine the desired mounting location on the ceiling or wall and verify that the surface and fasteners can support the combined weight of the mount and projector. Mark and drill mounting holes according to the template, secure the bracket to the surface with appropriate anchors and screws, then attach the projector to the bracket and adjust its position for correct alignment and projection angle.

Recommendations

Use appropriate anchors and fasteners for the substrate (drywall, concrete, wood). Check projector compatibility with the bracket dimensions and weight limit before installation. If unsure about load-bearing capacity or electrical routing, consult a qualified installer.
