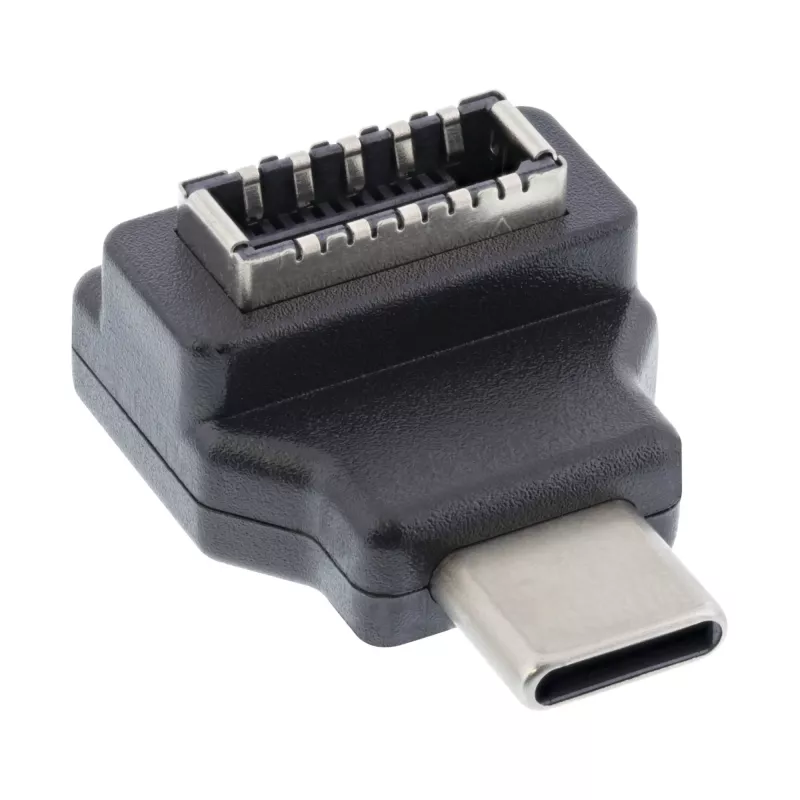

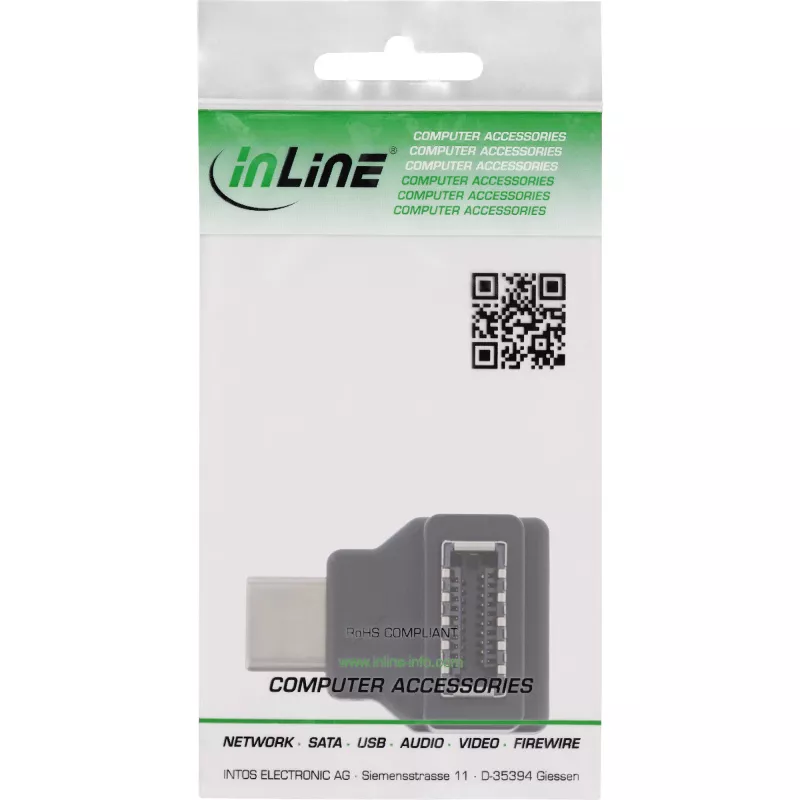

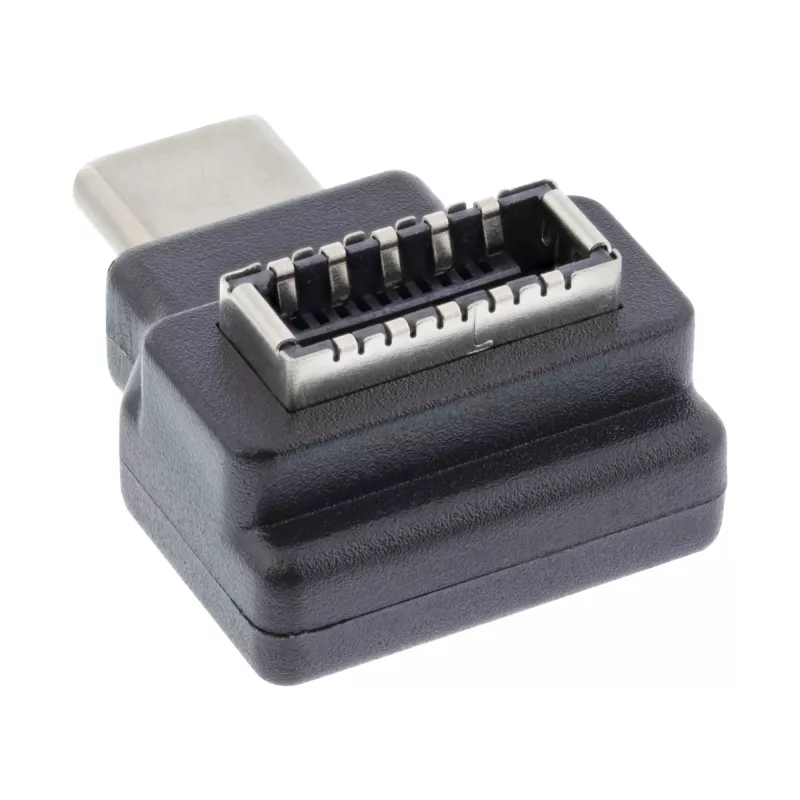

InLine USB 3.2 adapter, USB-C male to internal USB-E front panel socket

The InLine USB 3.2 adapter USB-C male to internal USB-E front panel socket provides a simple internal connection to link USB-C devices to a computer or notebook via an internal USB-E front panel port. It supports USB 3.2 Gen 2 data transfer rates up to 10 Gb/s and features a compact angled USB-C male connector in black, measuring 26 mm × 19 mm × 12 mm.

Advantages

The adapter enables high-speed data transfers up to 10 Gb/s while occupying minimal internal space thanks to its angled, compact design. Being an internal front panel socket adapter, it allows easy integration with cases or front-panel headers that use the USB-E form factor. Its USB-C male plug ensures compatibility with modern USB-C cables and devices.

Suitable for

• Connecting external USB-C devices through an internal USB-E front panel port
• Upgrading or modifying PC front panel connectors to add USB-C access
• Internal installation in desktop computers and some workstations

Key specifications

• Standard: USB 3.2 Gen 2 (up to 10 Gb/s)
• Connector (device): USB-C male
• Connector (host/front panel): internal USB-E front panel socket
• Colour: Black
• Dimensions: 26 mm (W) × 19 mm (D) × 12 mm (H)
• Brand: InLine
• MPN: 33446L
• EAN: 4043718315130

How to use

Install the adapter inside the PC case by connecting the internal USB-E front panel socket to the matching internal header or mounting point. Plug a standard USB-C cable into the angled USB-C male connector, then connect the other end to a USB-C device. Ensure the host system supports USB 3.2 Gen 2 transfer speeds if you need maximum throughput.

Recommendations

For reliable performance, route cables to avoid sharp bends and secure the adapter so the angled connector is not stressed. Verify motherboard or front-panel compatibility with the USB-E form factor before installation.
