InLine Patch panel 10 inch Cat.6A 0.5U 12-port black RAL9005

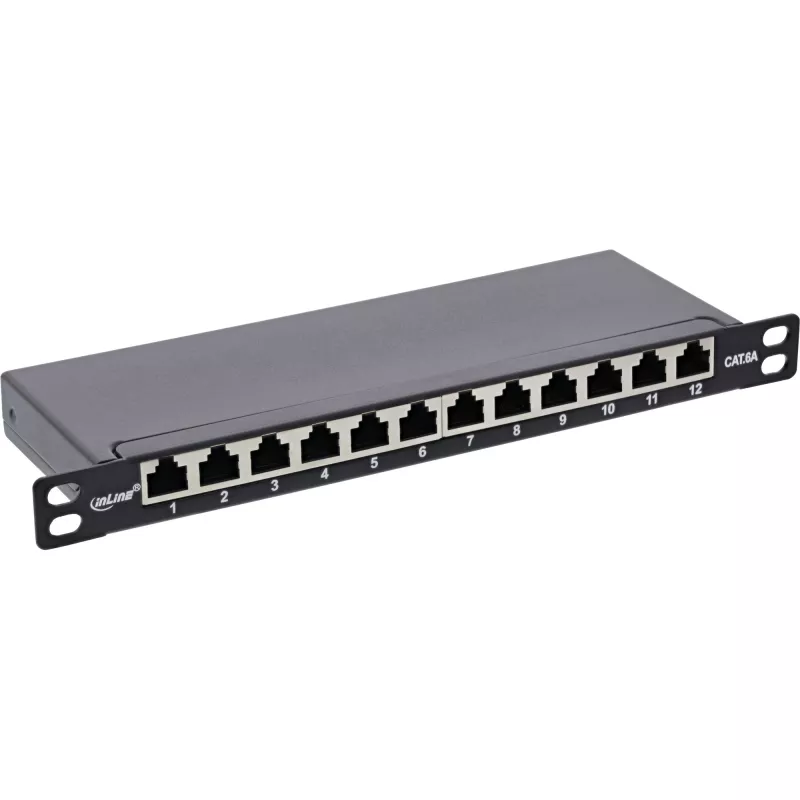

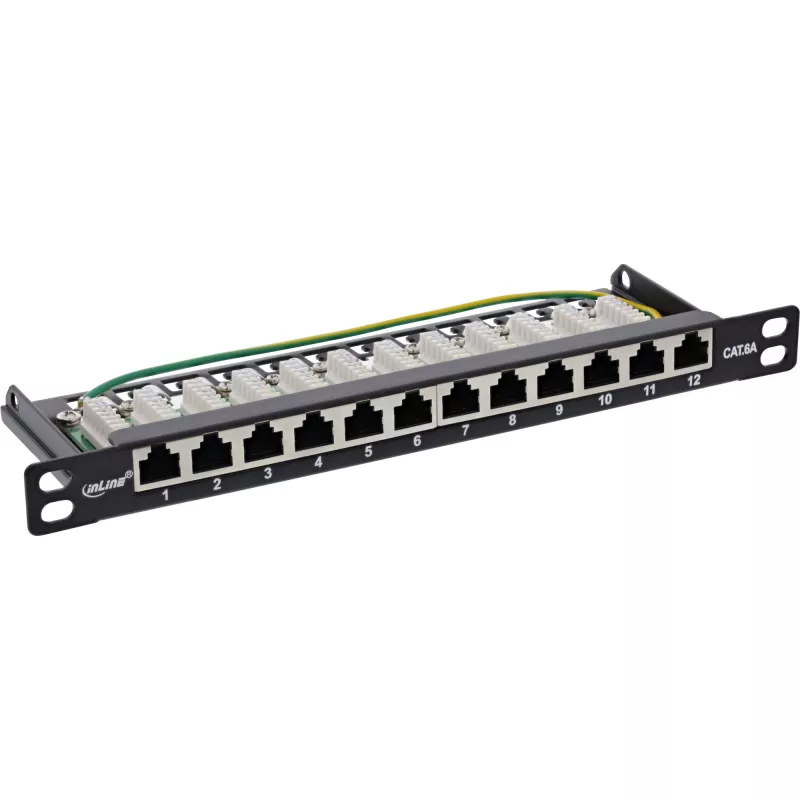

The InLine Patch panel 10" Cat.6A 0.5U 12-port in black (RAL9005) is a compact, fully shielded 10-inch patch panel engineered for Cat.6A installations. It provides twelve RJ45 ports with consecutive numbering and LSA insulation displacement connectors for connecting up to 12 installation cables, making it suitable for dense wiring in limited rack space.

Advantages

The patch panel supports Cat.6A performance and offers full shielding to reduce electromagnetic interference. LSA insulation displacement connectors enable reliable, tool-friendly termination of up to 12 cables. Consecutively numbered RJ45 ports simplify identification and management in rack environments, while the 0.5U height conserves space in standard 19" racks.

Suitable for

• Server rooms and network cabinets with limited rack space
• Cat.6A structured cabling installations
• Shielded (STP/FTP) Ethernet deployments
• Telecommunications and data distribution panels

Key specifications

• Form factor: 10" 0.5U
• Ports: 12 RJ45
• Cabling standard: Cat.6A

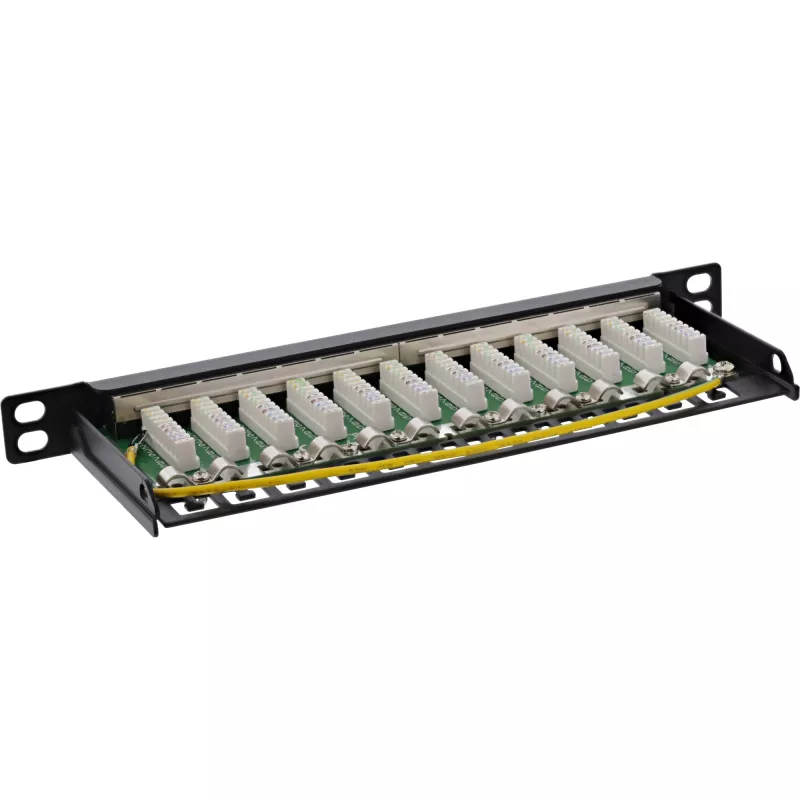

• Connectors: LSA insulation displacement
• Shielding: Full metal shielding
• Colour: Black (RAL9005)

How to use

Mount the 10" patch panel in a compatible 19" rack using appropriate screws. Terminate each incoming cable to the LSA insulation displacement connectors according to the Cat.6A wiring scheme, ensuring correct pair alignment and shielding continuity. Connect patch cords to the front RJ45 ports for equipment connections and label ports as needed using the consecutive numbering printed on the panel.

Recommendations

For optimum performance maintain proper cable grounding and follow Cat.6A installation practices, including correct pair untwisting limits and avoidance of sharp bends. Use shielded patch cords to preserve end-to-end shielding when deploying in STP/FTP environments.
