InLine HDMI Videowall controller 1 to 9, Full-HD

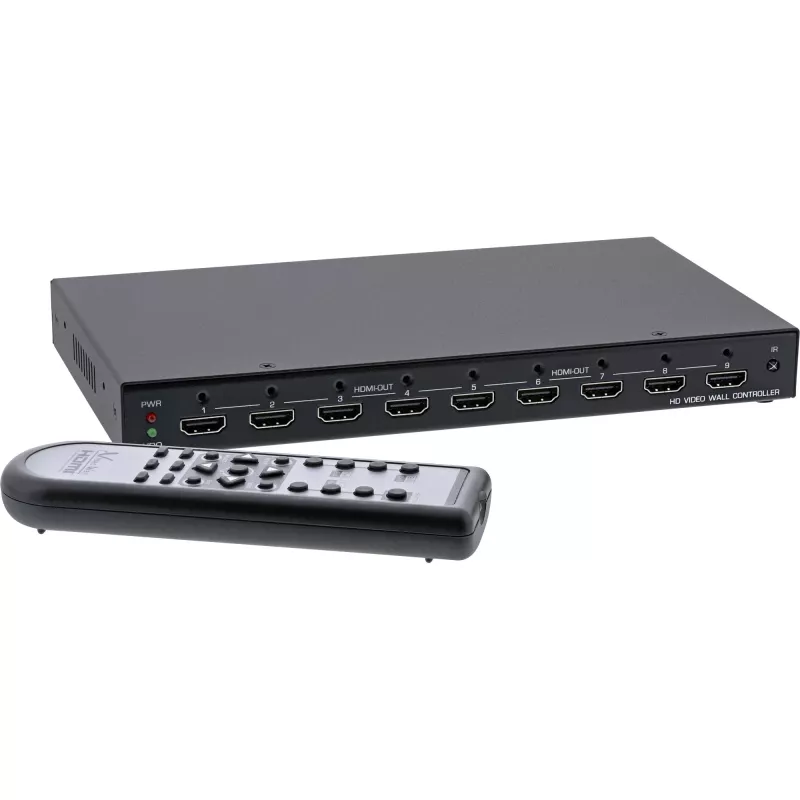

The InLine HDMI Videowall controller 1 to 9 Full-HD is a stand-alone video wall controller designed to combine up to nine displays into a single large screen (3x3). It accepts HDMI or VGA input, supports video modes up to 1080p and scaled resolutions including 1920 x 1080 and 1920 x 1200, and is housed in a durable metal casing with an external power supply. The compact unit (135 x 235 x 26 mm) is intended for professional video wall applications where reliable signal distribution and precise image alignment are required.

Advantages

The device can duplicate, enlarge and distribute a single video source across up to nine monitors while maintaining Full-HD quality. It offers both HDMI and VGA input options, remote IR control for easy operation, and extended frame compensation for optimal picture alignment on multi-screen setups. The metal housing and external power supply provide robustness for continuous professional use.

Suitable for

• Digital signage installations
• Retail and advertising video walls
• Broadcasting and A/V splitting tasks
• Control rooms and monitoring walls

Key specifications

• Model: InLine HDMI Videowall controller 1 to 9 Full-HD (MPN: 57839I, EAN: 4043718279081)
• Inputs: HDMI and VGA
• Output arrangement: up to 9 monitors (3x3)
• Supported resolutions: up to 1080p; scaled 1920 x 1080 and 1920 x 1200
• Housing: metal; colour: black
• Dimensions: 135 mm (W) x 235 mm (D) x 26 mm (H)
• Weight: 0.87 kg

How to use

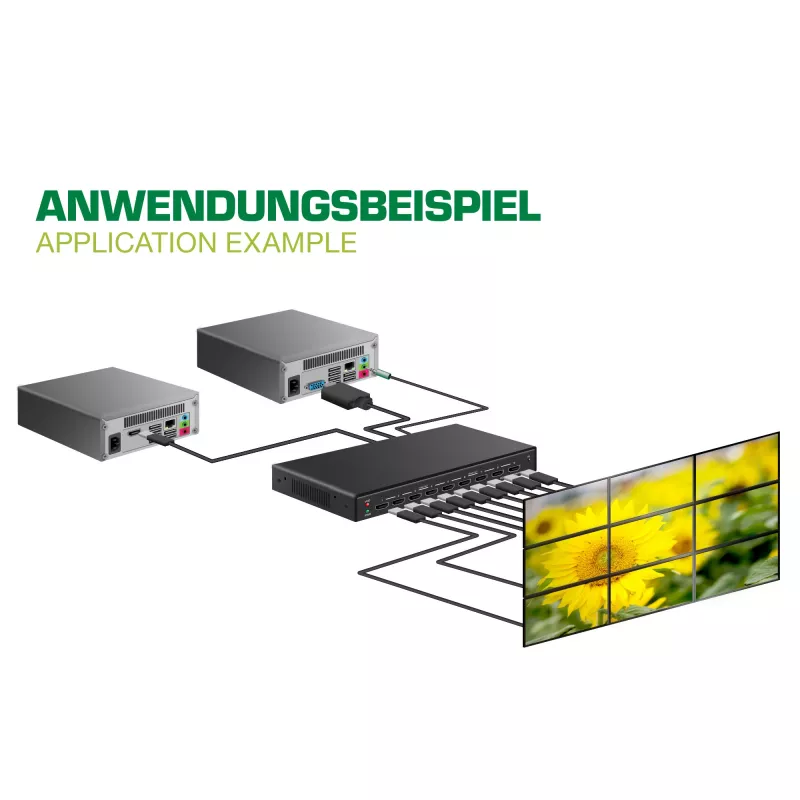

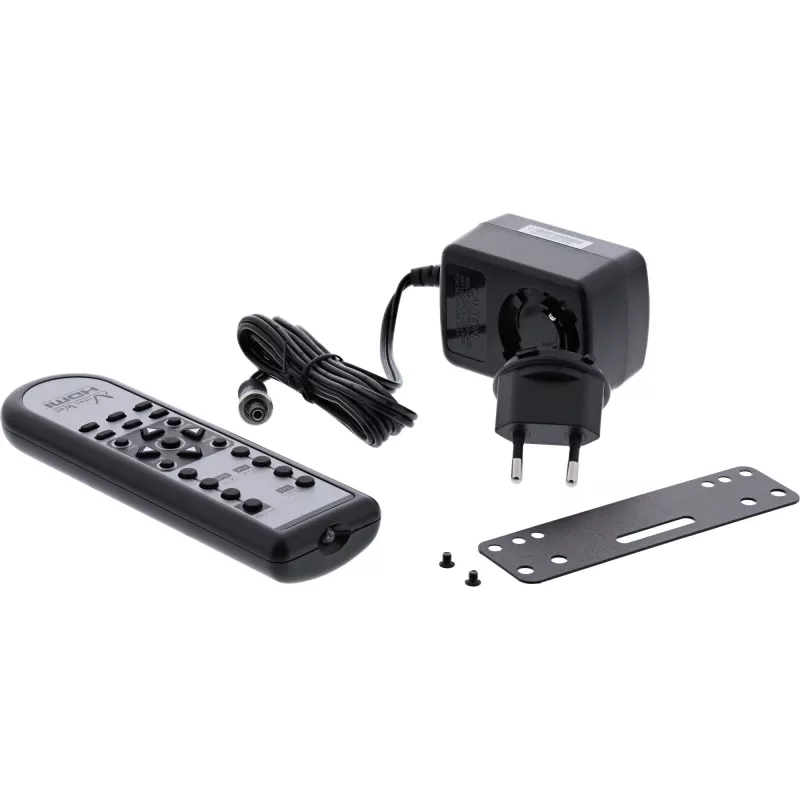

Connect the video source to the HDMI or VGA input, connect up to nine displays to the unit according to the desired screen layout (3x3 for a full videowall), and apply power via the external power supply. Use the included IR remote control to select the output mode, enable frame compensation and adjust scaling as required to align the image across all monitors. Ensure displays are set to the supported resolution for best results.

Recommendations

For stable performance, use quality HDMI cables and set all connected displays to identical resolution and bezels for easier frame compensation. Place the controller in a ventilated location and verify firmware or compatibility updates through the manufacturer when integrating with complex AV systems.
