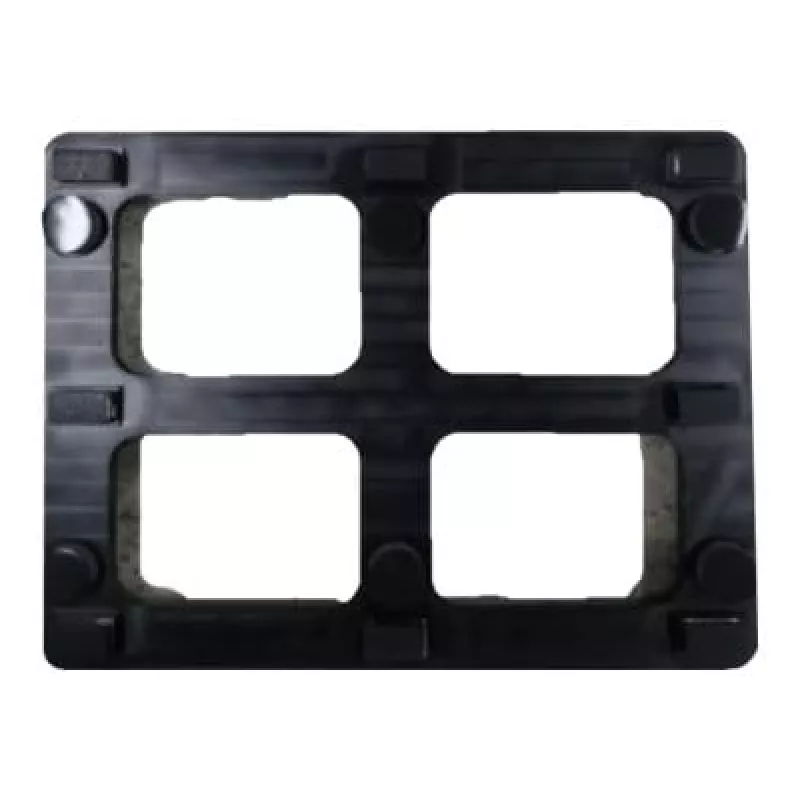

Indoor LED Magnetic Jig Samsung CY-LJRNLS/EN — LED signage assembly and alignment tool

Samsung CY-LJRNLS/EN is an indoor LED magnetic jig designed for precise assembly and alignment of LED signage modules. The tool provides stable magnetic mounting support to hold modules in the correct position during installation and routine maintenance. Built for professional installers and service technicians, the jig helps achieve consistent panel alignment, reduces time spent on balancing and repositioning, and supports a clean visual result for indoor LED displays.

Advantages

The magnetic jig offers reliable holding force to secure LED modules without permanent fixtures, enabling quicker placement and repositioning. Its compact form factor and straightforward interface simplify handling in confined spaces and behind displays. The jig is compatible with common indoor LED module designs and helps maintain uniform gaps and alignment across panels, improving visual uniformity and reducing the need for post-installation adjustments.

Suitable for

• Installation of indoor LED signage and display modules
• Routine maintenance and module replacement in indoor displays
• Alignment and fine positioning of LED panels for retail, corporate, and event environments
• Technical workshops and on-site service operations by professional installers

Key specifications

• Type: Indoor magnetic jig for LED module assembly and alignment
• Mounting: Magnetic support for temporary holding during installation
• Compatibility: Designed for typical indoor LED module form factors and panel assemblies
• Design: Compact, ergonomic shape for access behind mounted displays
• Use environment: Indoor use, suitable for controlled commercial and event spaces

How to use

Position the magnetic jig against the module or panel frame where temporary support is required, ensuring contact with a compatible metal surface or mounting point. Use the jig to hold the LED module in place while aligning adjacent modules and securing permanent fasteners. During maintenance, attach the jig to support a module being removed or replaced to prevent sagging or misalignment. Follow standard safety practices for working with mounted displays and ensure power to the affected section is turned off where necessary.

Recommendations

For reliable results, verify that the mounting surface is clean and free of non-magnetic coverings or heavy coatings that could reduce magnetic adhesion. Use the jig in combination with alignment guides or measuring tools for consistent gap control. Store the jig in a dry environment and inspect magnetic surfaces for debris before each use to maintain secure holding force.
