InLine 74930B networking cable Blue 30 m Cat6a S/FTP (S-STP)

InLine 74930B networking cable Blue 30 m Cat6a S/FTP (S-STP)

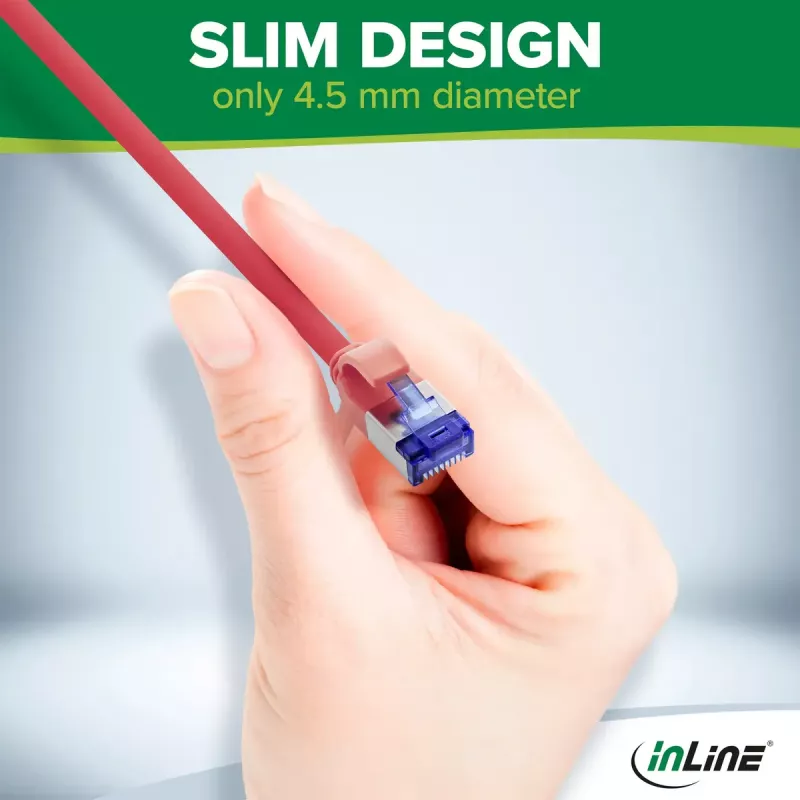

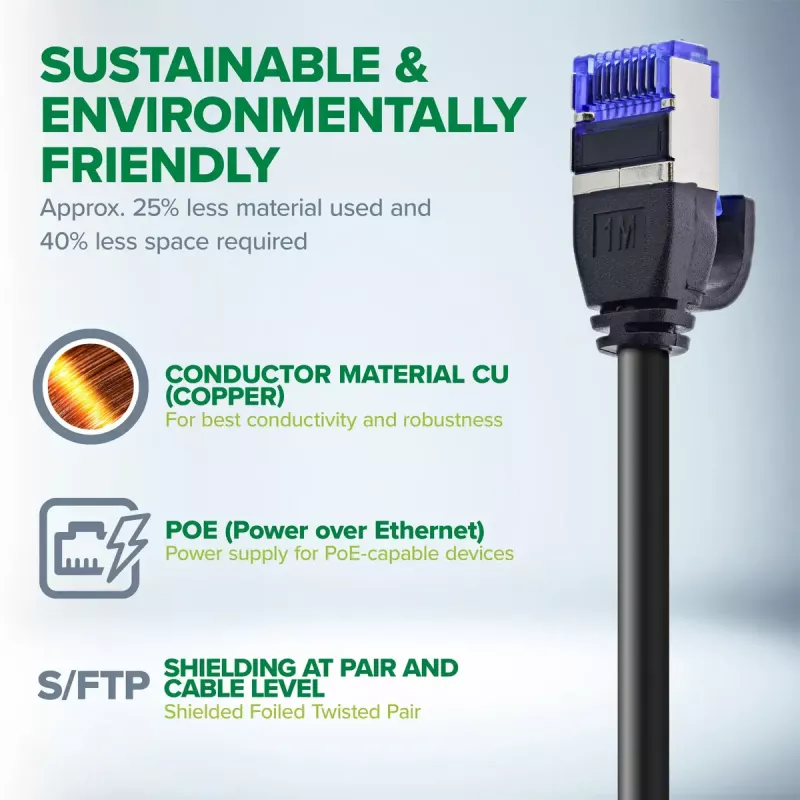

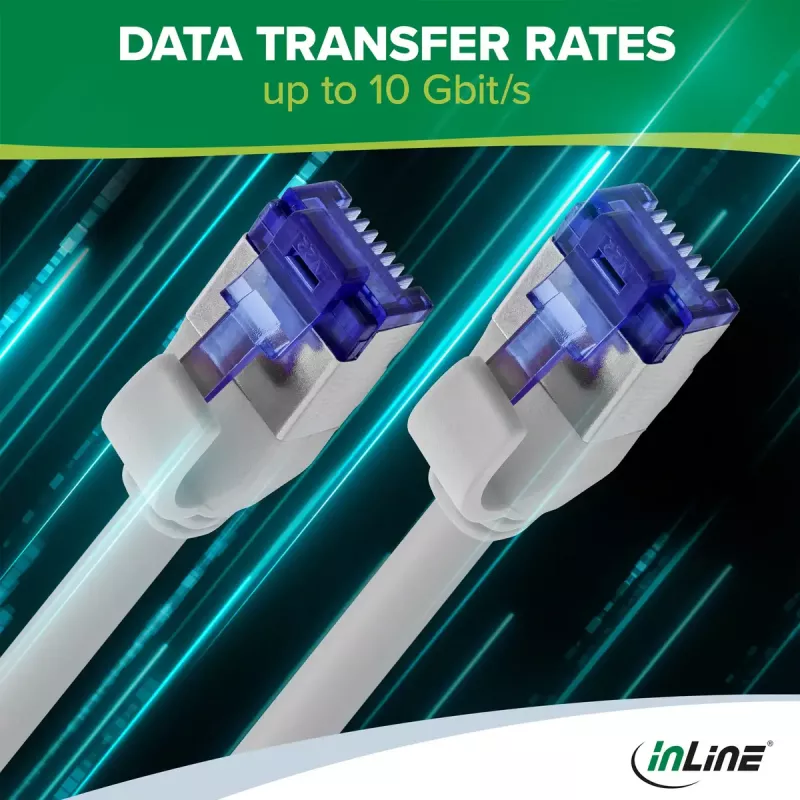

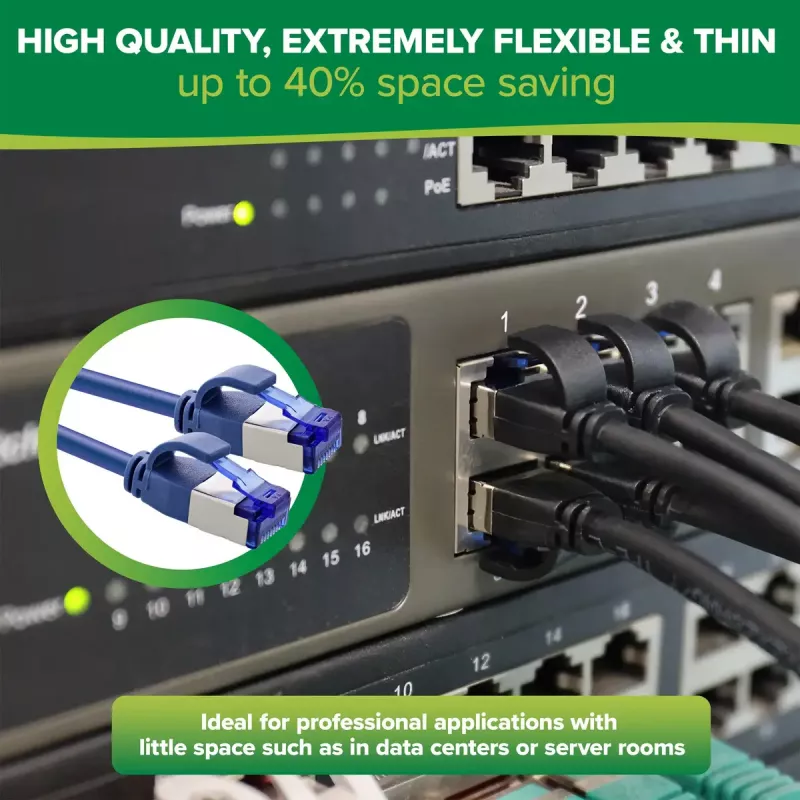

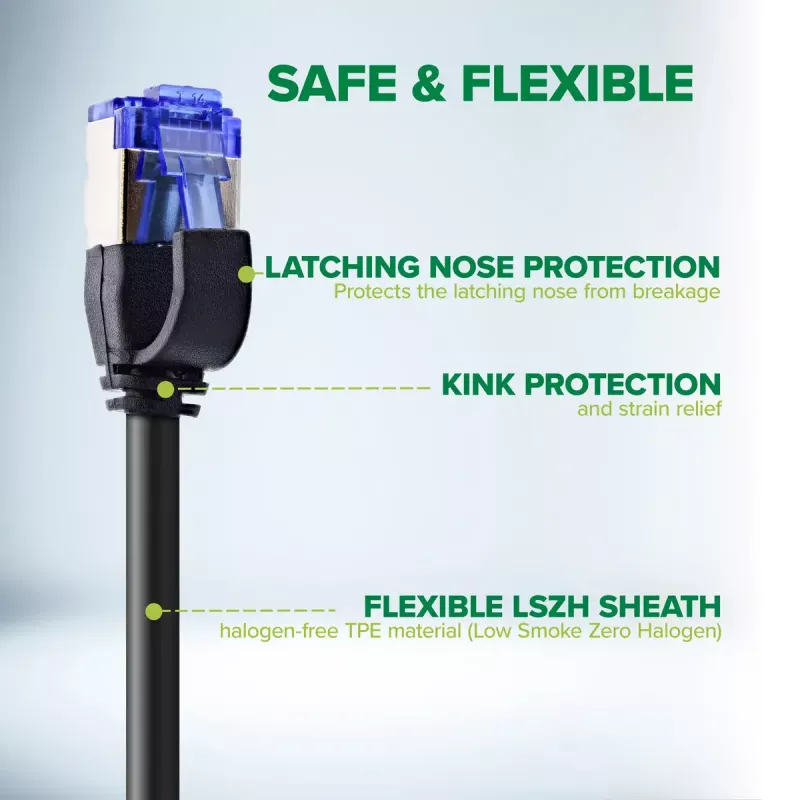

InLine 74930B networking cable in blue, 30 m, Cat6a S/FTP (S-STP). Part of the InLine Slim Cat.6A S/FTP patch cable range, its slim AWG28 design needs around 40% less space than conventional AWG26 cables, allowing higher port density and better airflow in network cabinets and server rooms. It supports full Cat.6A performance up to 10 Gbit/s and 500 MHz over lengths up to 30 m, plus 4PPoE with up to 87 watts. Pure copper conductors minimise signal loss while the S/FTP double shielding protects against electromagnetic interference. The LSZH TPE jacket is halogen-free, flame-retardant and low-smoke. Additional specifications: pure copper conductors, S/FTP construction, AWG28 wire gauge, operating temperature -20 to +75 °C, outer diameter 4.5 mm, T568B 1:1 wiring, RJ-45 connectors with gold-plated contacts, 10000 Mbit/s data rate. To use, connect one RJ-45 plug to your switch, patch panel or device and the other to the destination, push the connectors home until the latch engages, avoid tight bends and excessive pulling, and keep the cable away from strong electromagnetic sources.

Specifications

• Country of origin: Taiwan
• Depth: 30000 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 345 mm
• Package height: 52 mm
• Package weight: 663 g
• Package width: 260 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 643 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS

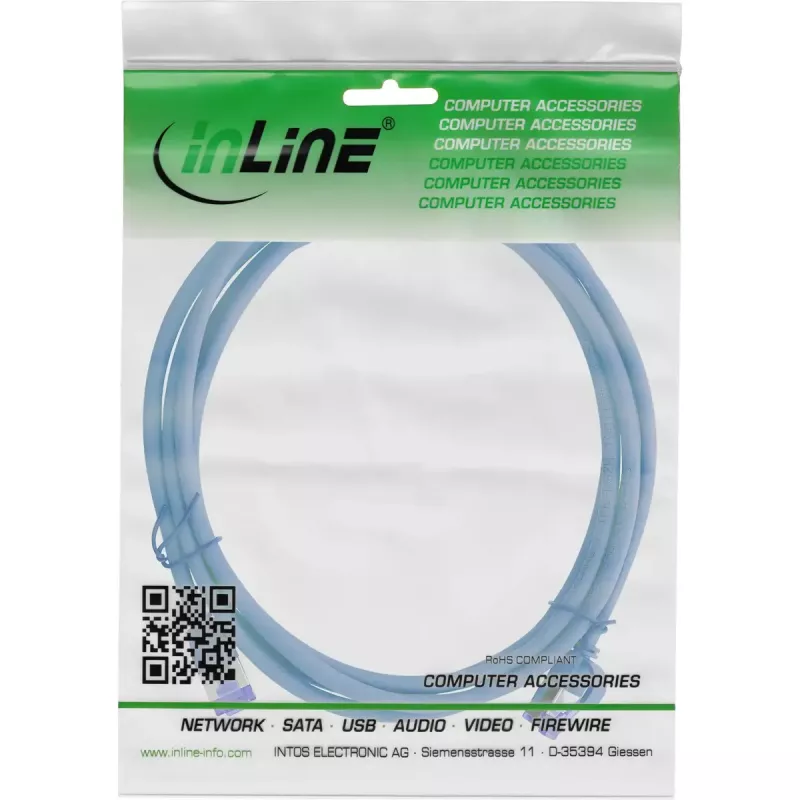

• Package type: Polybag
• Quantity per pack: 1 pc(s)
• Package volume: 4700 cm³
• Data transfer rate: 10000 Mbit/s
• Cabling technology: 10GBase-T
• Plug and Play: Yes
• Cable length: 30 m

Genuine Inline product — MPN: 74930B · EAN: 4043718335343.
