InLine 74901R Slim Patch Cable, Cat.6A, S/FTP, TPE (LSZH), Flexible, PoE, Red, 1 m

Name: InLine 74901R Slim Patch Cable, Cat.6A, S/FTP, TPE (LSZH), Flexible, PoE, Red, 1 m
Brand: INLINE
SKU: 1431639
Price: 134.00 ZAR
Availability: InStock

InLine 74901R Slim Patch Cable, Cat.6A, S/FTP, TPE (LSZH), Flexible, PoE, Red, 1 m

R134

+R1 store credit

PDF

Qty

Add to Cart

Add to Wish List Compare this Product

PDF

Stock 2 Code 1431639 Model 74901R Warranty 2 Years

DepartmentCables & Adapters

CategoryEthernet Patch Cables

BrandINLINE

Shipping & Returns

Estimated delivery Monday, November 23

You will be kept updated through our detailed tracking system

Payment options

EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Ask a question – the AI assistant answers instantly.

html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)>*{opacity:1!important;visibility:visible!important;pointer-events:auto!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::before,html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::after{display:none!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready){min-height:0!important}

Description

The InLine 74901R is a slim Cat.6A S/FTP patch cable with a flexible TPE (LSZH) sheath, designed for space-saving network installations. It supports PoE up to 87 watts (4PPoE) and delivers full Cat.6A transmission quality with pure copper conductors.

Key features

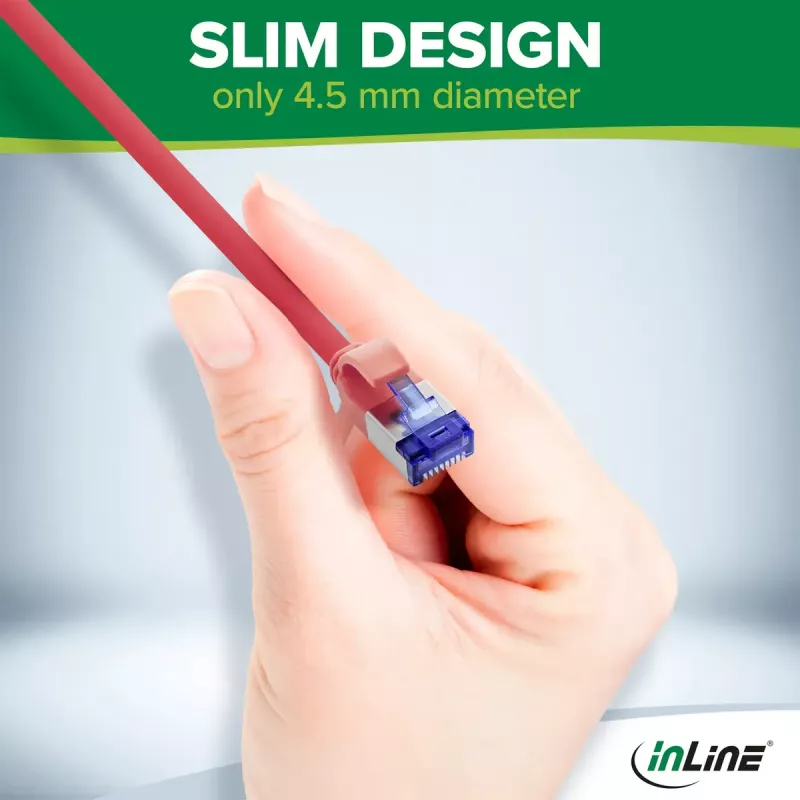

Slim design with approx. 40% less space required than conventional AWG26 patch cables
Full Cat.6A transmission quality up to 10 Gbit/s on lengths up to 30 meters
PoE support up to 87 watts (4PPoE)
TPE (LSZH) sheath: halogen-free, flame-retardant, flexible
S/FTP shielding (pair and overall shielding)
Gold-plated contacts

Specifications

Brand: InLine
MPN: 74901R
Product colour: Red
Category: Cat.6A
Cable construction: S/FTP (PiMf)
Conductor material: Pure copper
Wire gauge: AWG28
Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
Operating temperature: -20 to +75 °C
Storage temperature: -20 to +75 °C
Outer diameter: 4.1 mm
Assignment: 1:1 according to T568B
Connectors: RJ45 plug straight (Side A) to RJ45 plug straight (Side B)
Design: Round cable slim
Length: 1 m
Max. supported data transfer rate: 10 Gb/s
Max. supported PoE standard: 802.3bt
Max. supported power: 90 W
Wire pairs used for power transmission: All

Key Highlights

High-density network cabinets and server rooms where space is limited
PoE installations supplying IP cameras, wireless access points or VoIP telephones
Structured cabling requiring Cat.6A performance up to 500 MHz and 10 Gbit/s
Environments demanding LSZH cable jackets for reduced smoke and halogen emissions
Length: 10 m
Standard: Cat.6A, supports up to 500 MHz
Data rate: up to 10 000 Mbit/s (10 Gbit/s)
Conductor: pure copper, AWG28
Construction: S/FTP (pair and overall shielding)
Jacket: TPE (LSZH)
Connector: RJ-45 straight male — RJ-45 straight male, moulded, gold-plated contacts
Outer diameter: 4.1 mm
Operating temperature: -20 to +75 °C
PoE support: Yes, up to 87 W (4PPoE)
Wiring: 1:1 according to T568B
Colour: Red
