Handheld Barcode Scanner DeLOCK 90586 1D 2D Wireless Bluetooth Inductive Charging

The DeLOCK 90586 is a handheld 1D/2D barcode scanner with wireless connectivity and an inductive charging station. It reads common linear and matrix barcodes, captures codes displayed on screens, and supports Bluetooth and a 433 MHz RF link for data transfer. The device features a CMOS sensor, a maximum read rate of 120 scans per second, internal memory and a robust design intended for industrial use.

Advantages

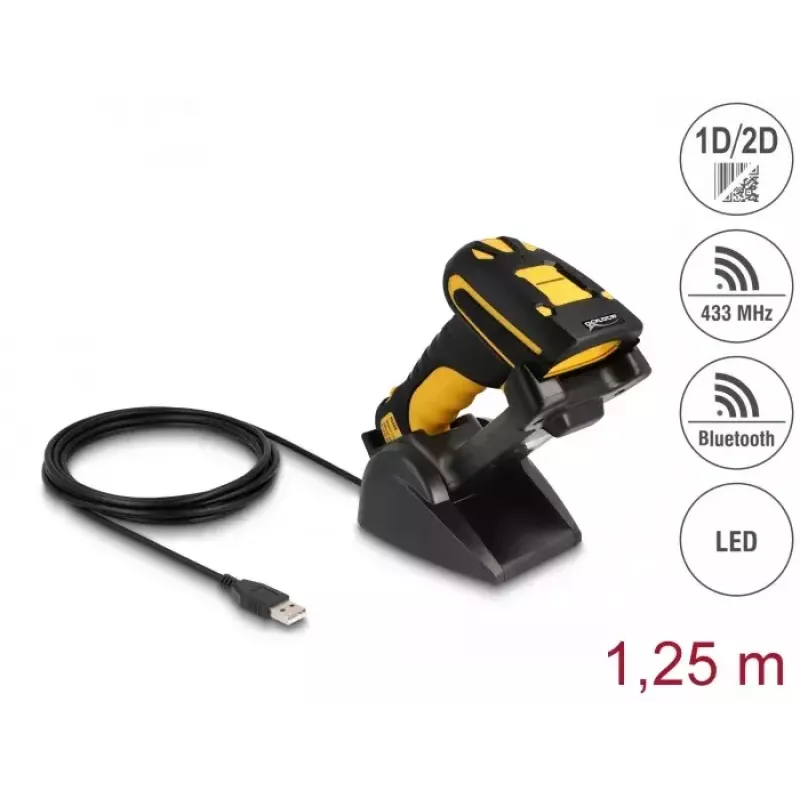

The scanner adapts automatically to ambient brightness and uses an additional white LED for illumination in low-light conditions. It handles up to 120 reads/s under optimal lighting and reliably reads codes at longer distances. The rugged housing tolerates drops up to 1.80 m. The inductive charging station charges the scanner and serves as the system interface, providing Bluetooth and 433 MHz connectivity via a USB connection.

Suitable for

Key specifications

How to use

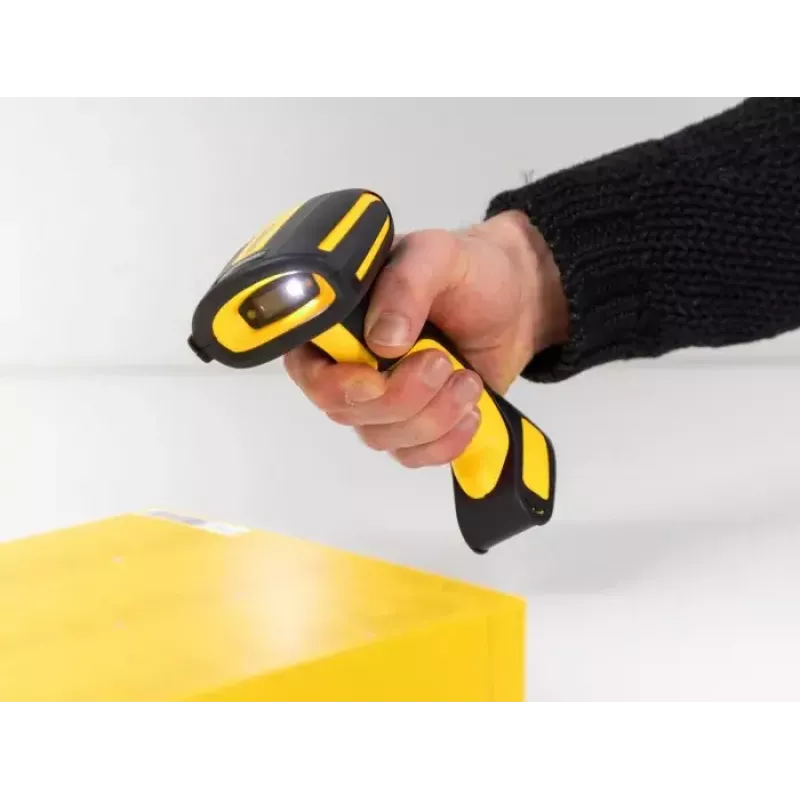

Connect the inductive charging station to a host system using the supplied USB cable to enable Bluetooth and 433 MHz communication. Place the handheld scanner on the charging station to charge the internal battery. To scan, activate the scanner and aim the sensor at the barcode or the barcode shown on a display; press the trigger to capture the code. Scanned data is transmitted wirelessly to the connected PC, laptop, phone or tablet or stored in internal memory when required.

Recommendations

Use the scanner within the specified operating range for Bluetooth and 433 MHz to ensure stable data transmission. For reliable reading of small or damaged codes, make sure the barcode is well illuminated or use the scanner’s LED illumination in low-light situations. If used in harsh environments, regularly inspect the housing and connectors and keep the charging station contacts clean.
