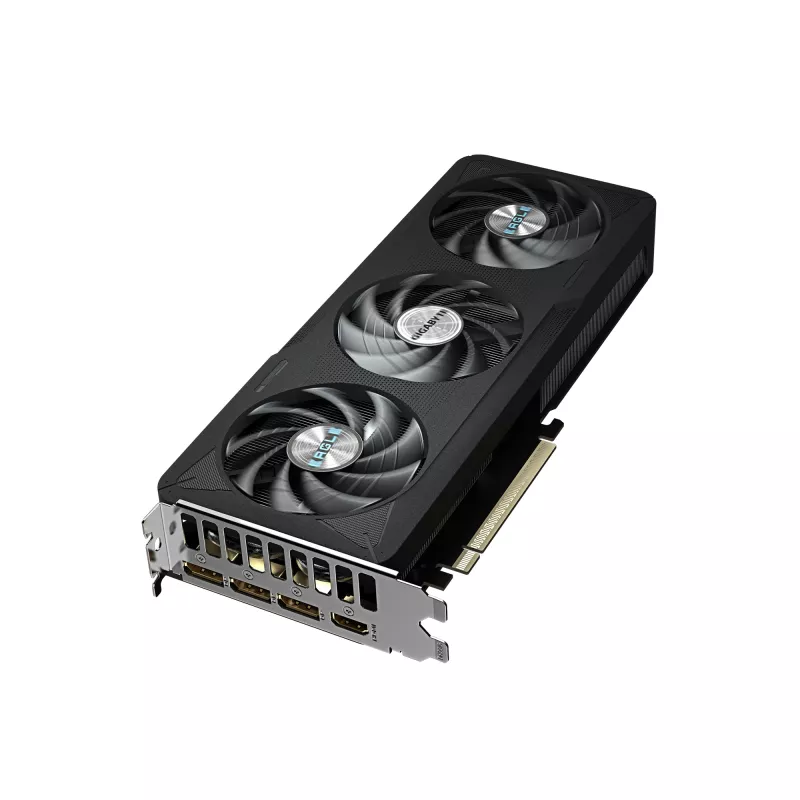

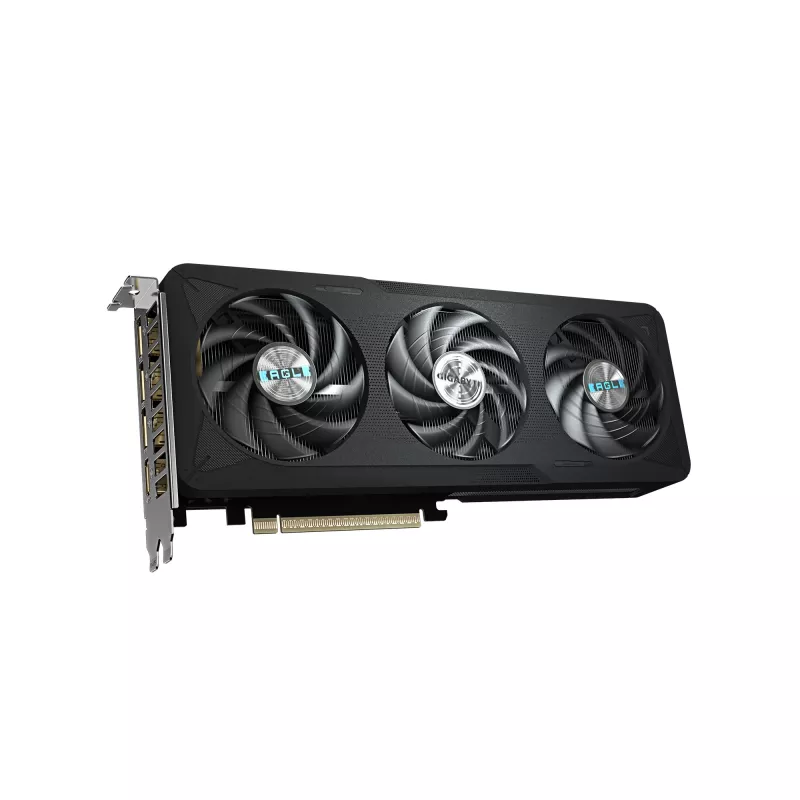

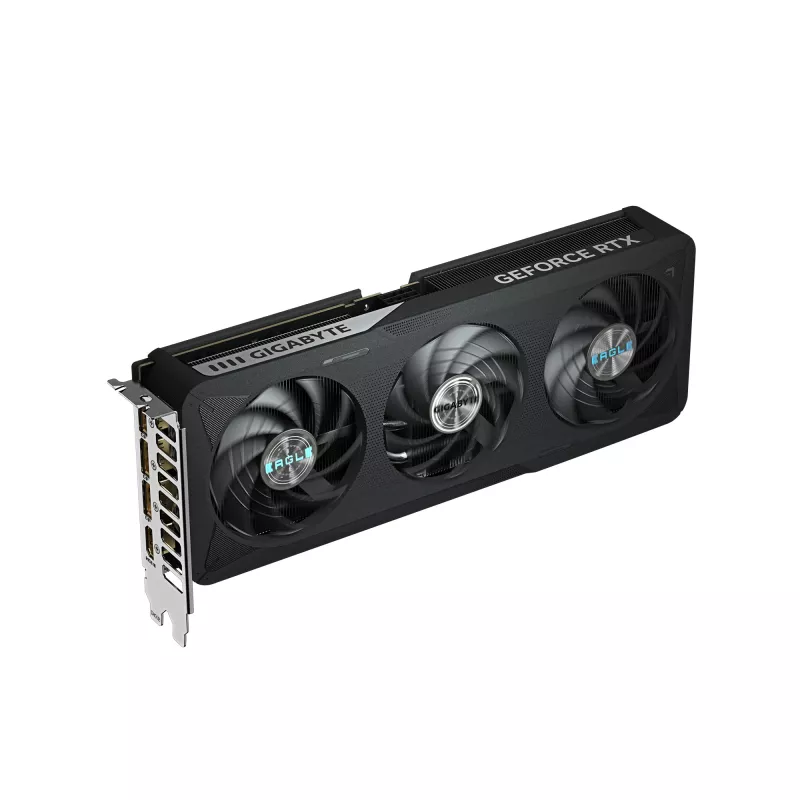

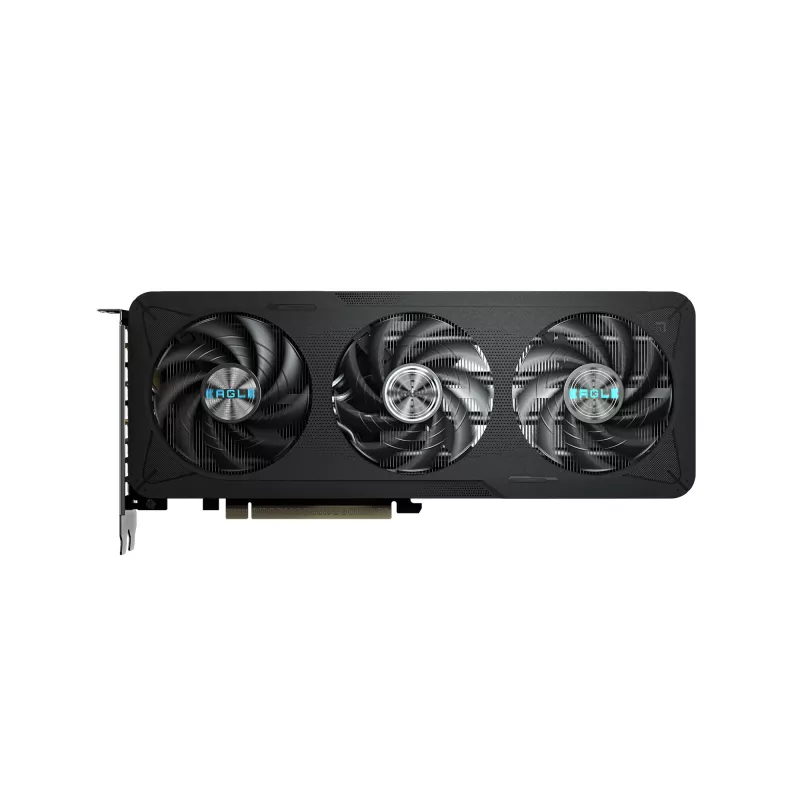

Graphics Card GIGABYTE GeForce RTX 5060 Ti WINDFORCE MAX OC 8GB GDDR7, 128-bit, PCIe 5.0, 2617 MHz

GIGABYTE GeForce RTX 5060 Ti WINDFORCE MAX OC 8G is a discrete graphics card designed for modern gaming and high-resolution rendering. Based on the NVIDIA Blackwell architecture and equipped with NVIDIA DLSS 4, this model features a GeForce RTX 5060 Ti GPU, 8 GB of GDDR7 memory on a 128-bit bus, PCI Express 5.0 interface and active WINDFORCE cooling with dual fans to maintain stable performance during extended use.

Advantages

The card combines a high-frequency GPU (2617 MHz core clock) with fast 28000 MHz memory and a 128-bit memory bus to deliver smooth frame rates at high settings. WINDFORCE active cooling and a reinforced structure improve thermal stability and mechanical durability. Multiple display outputs (3x DisplayPort and 1x HDMI) and support for up to 7680 x 4320 resolution ensure broad compatibility with modern monitors and TVs.

Suitable for

• High-resolution gaming (up to 8K)
• Real-time ray tracing and AI-enhanced upscaling using NVIDIA DLSS 4
• Content creation and video playback at high resolutions
• Multi-monitor setups and professional displays

Key specifications

• Graphics processor: NVIDIA GeForce RTX 5060 Ti
• Memory: 8 GB GDDR7, 128-bit memory bus, 28000 MHz memory clock
• Core clock: 2617 MHz (OC model)
• Interface: PCI Express 5.0
• Maximum resolution: 7680 x 4320 pixels
• Outputs: 3 x DisplayPort, 1 x HDMI
• DirectX 12.0, OpenGL 4.6
• Power connector: 1 x 8-pin
• Cooling: Active WINDFORCE, 2 fans
• Weight: 0.73 kg

How to use

Install the GPU into an available PCI Express 5.0 x16 slot on a compatible motherboard, secure it to the case and connect the required 8-pin power connector from your PSU. Install the latest NVIDIA drivers from the GIGABYTE or NVIDIA website, and configure display settings through the NVIDIA Control Panel. For best performance enable DLSS 4 and ray tracing where supported by games or applications.

Recommendations

Ensure your power supply provides adequate wattage and an available 8-pin connector. Maintain case airflow and clean dust from fans and heatsinks periodically. Use the latest driver updates for optimal compatibility and stability.
